Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v

Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v

  • Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v
  • Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v
  • Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v
  • Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v
Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v
Product Details:
Place of Origin: china
Brand Name: OFAN
Certification: ce ccc
Model Number: LD133C-230D3-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1-100 PCS
Packaging Details: 45*45*24
Delivery Time: 5-8 work days
Payment Terms: D/P, D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000PCS15days
Contact Now
Detailed Product Description
Name: EC Centrifugal Fans Model: LD133C-230D3-00
Feature: High Volume Inlet: Single Inlet
Advantage: High Static Pressure Rated Current: 0.45A
Power: 53W Rated Speed: 4500RPM
Air Flow 1: 330m³/h Air Flow 2: 195CFM
Air Pressure: 45mmH2O Noise Level: 65dba
High Light:

industrial centrifugal blower

,

centrifugal fans and blowers

Medical Equipment EC Centrifugal Fans For Cleanroom Fans 133mm



EC Centrifugal Fans basic functions and performances



1. Sensorless permanent magnet motor drive

2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

4. Soft start, adjustable acceleration, CVT

5. Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

6. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

7. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma



Features

  EC motor features reverse polarity protection, locked rotor protection and soft start.

  No additional protection such as contactors are required.

  Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.

  A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.

  Can be run as an independent ventilation source or integrated into most building management systems.

  Robust, galvanised steel housing and cowl.

  Quick release toggle clamps provide easy access for cleaning and maintenance.

  Can be mounted at angles up to 30°.



EC Centrifugal Fans Parameters



Name: EC Centrifugal Fans Model: LD133C-230D3-00
Feature: High Volume Inlet: Single Inlet
Advantage: High Static Pressure Rated Current: 0.45A
Power: 53W Rated Speed: 4500RPM
Air Flow 1: 330m³/h Air Flow 2: 195CFM
Air Pressure: 45mmH2O Noise Level: 65dba



Our Advantage:



1. Low MOQ

2. Guaratee for motor

3. Excellent quality

4. Certification: CCC, CE, RoHS

5. We can develop new models based on your budget and specifcation

6. Powerful design according to customer's idea





1. How about delivery time?

a. Sample order below 10 pieces, we could make dispatch within 10 days.
b. Within four production lines we could supply 1000 fans each day.

2. What kind of payments do you support?

T/T, L/C, other kind of payment please contact with us

3. What's the MOQ?

1 piece sample fan. We believe our fan quality must satisfy customer.

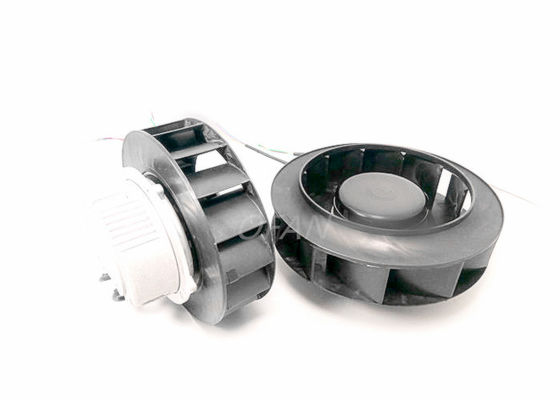

Backward Curved Impellers Pictures



Single Inlet EC Centrifugal Fans Noise Level 65dba Three Phase 250v - 480v 0
