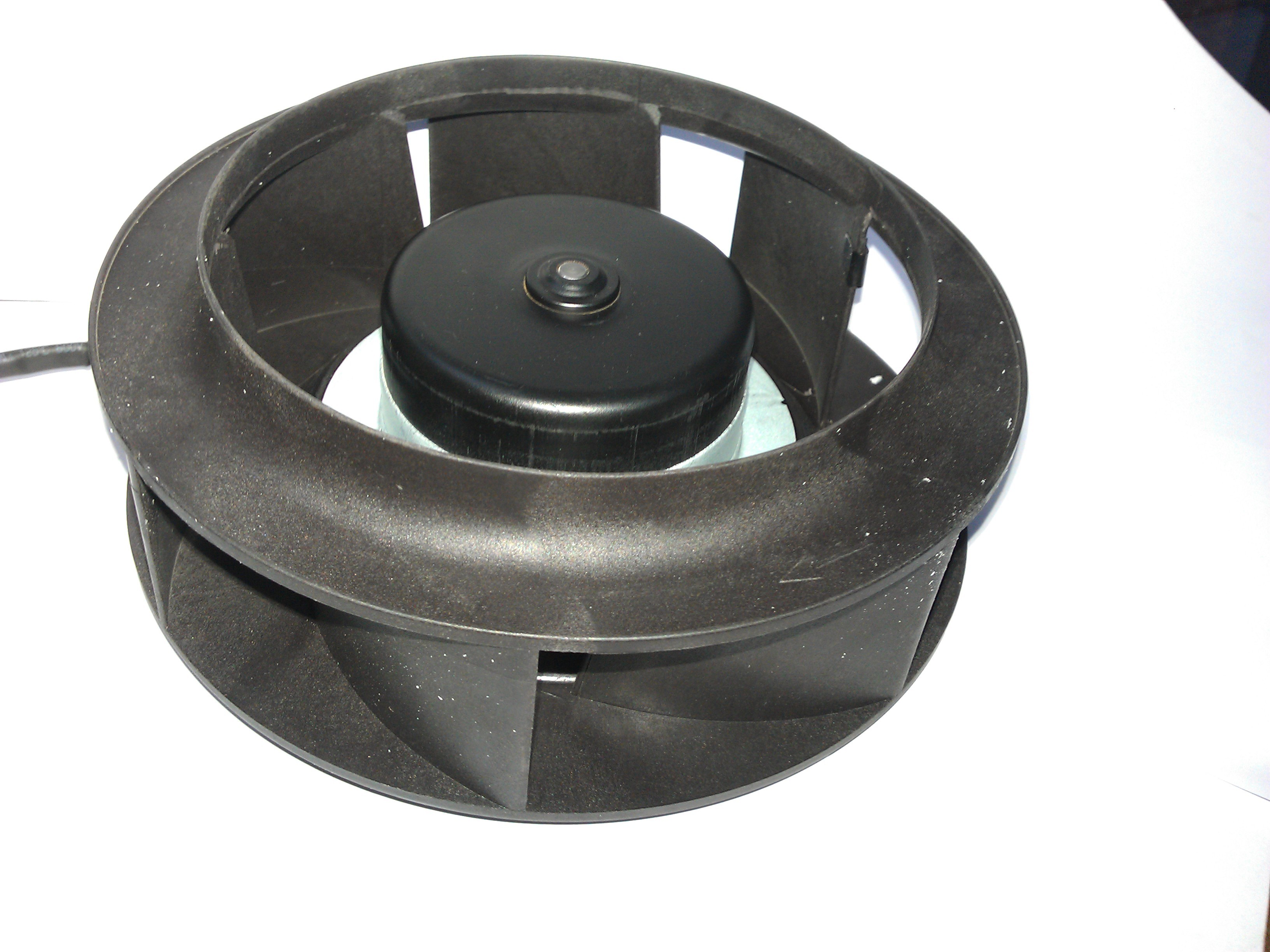

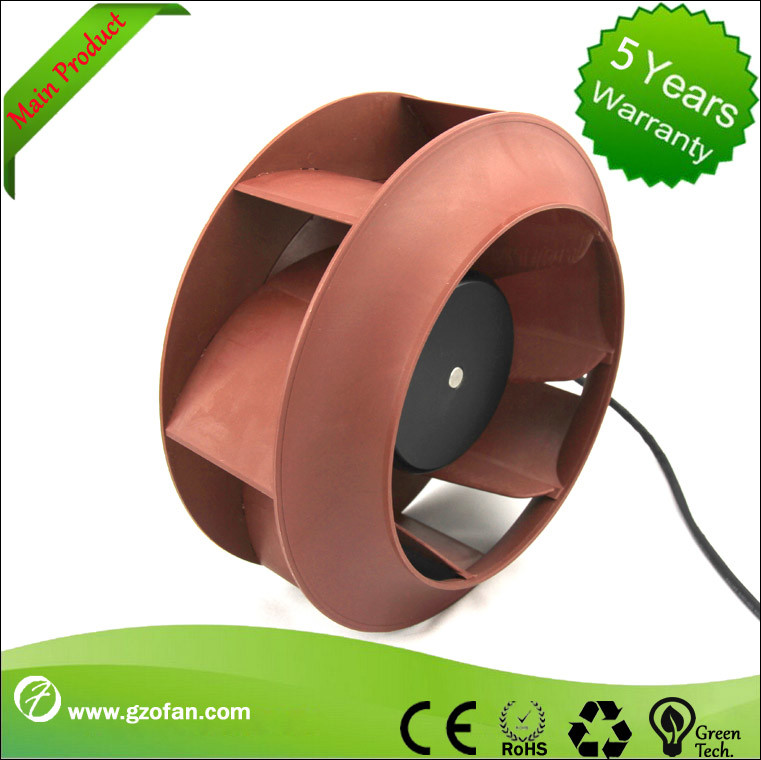

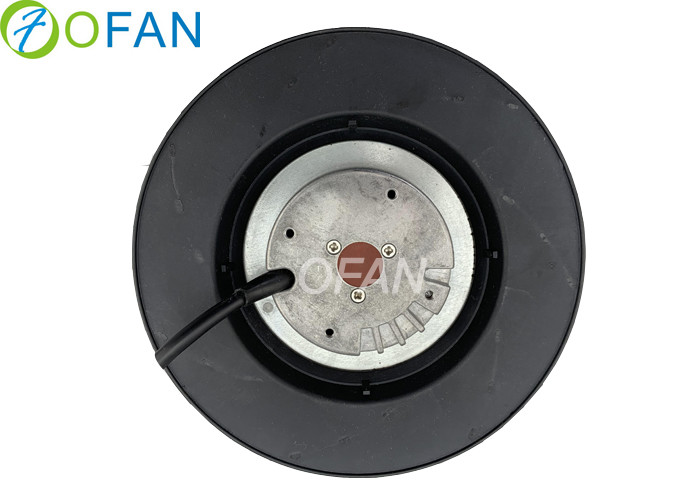

Analogous DC Centrifugal Fan With Fresh Air System Equipment Cooling

Place of Origin China
Brand Name OFAN
Certification CE,UL,3C
Model Number LD133N-24D3-00
Minimum Order Quantity 1
Price $10~30/pcs
Packaging Details 65*65*70
Delivery Time 5-8 word days
Payment Terms L/C, T/T
Supply Ability 10000pcs20days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 24V Rated Speed 4000RPM
Air Flow 360m³/h Power 38.4W
Current 1.6A Operation Voltage 16-28V
High Light

brushless dc fan

,

dc centrifugal blower

Leave a Message
Product Description

Analogous Ebm-past DC Centrifugal Fan With Fresh Air System Eqjipment Cooling



Listed
Model
Rated
Voltage
Operation
Voltage
Rated
Current
Power Rated
Speed
Air
Flow
Air
Flow
Air
pressure
Noise
Level
Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
LD133N-48D3-00 48 36~56 1.3 62.4 4500 420 210 41.5 70
LD133N-48D3-01 48 36~56 0.8 38.4 4000 360 185 36.8 65
LD133N-24D3-0 24 16~28 1.6 38.4 4000 360 185 36.8

65





















Advantages of EC technology



Very high degree of efficiency

Integrated controller (continuous control)

Very simple connection

Additional functions (pressure control, airflow, speed, temperature, air quality, etc.)

Smaller-sized motor for the same level of performance

Less power consumption



Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system



Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation



 Enable the selection of different power levels thus to get the best match of price and performance according to customers’load requirements



 FAQ

1. Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM



2. How do I know which model I should choose

Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.







Our Services

1. Warranty: 1 year warranty for all products.

2. Private Labelling: All of axial fans are able to be Private labeled.

3. Products Quality: 100% products inspection before delivery.

4. Just in time delivery: Normally, Lead time is 30 days.

5. Prompt customers Services: E-mail will be replied in 24 hours.







Analogous DC Centrifugal Fan With Fresh Air System Equipment Cooling 0
