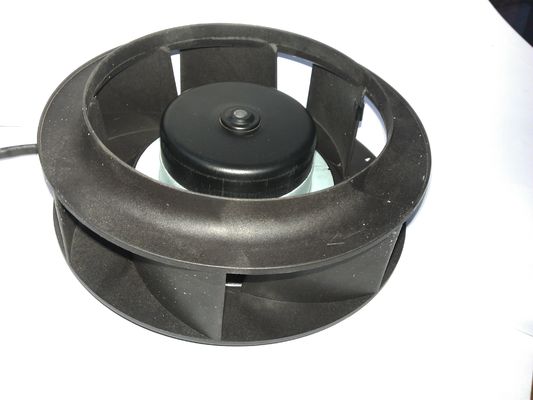

High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation

    • High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation
    • High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation
    • High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation
    • High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation
  • High Pressure DC Centrifugal Fan Reduce CO2 Emissions Convenient Installation

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,UL,3C
    Model Number: LD175N-24D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $10~30/pcs
    Packaging Details: 65*65*70
    Delivery Time: 5-8 word days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs20days
    Contact Now
    Detailed Product Description
    Rated Voltage: 24V Rated Speed: 3100RPM
    Air Flow: 560m³/h Power: 60W
    Current: 2.5A Operation Voltage: 16-28V

    Replace Ebm-past 175mm DC Centrifugal Fan With Electric Power



    Listed
    Model
    Rated
    Voltage
    Operation
    Voltage
    Rated
    Current
    Power Rated
    Speed
    Air
    Flow
    Air
    Flow
    Air
    pressure
    Noise
    Level
    Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
    LD175N-48D3-01 48 36~56 1.2 57.6 3100 560 330 41.5 70
    LD175N-24D3-01 24 16~28 2.5 60 3100 560 330 36.8 65



















    1. Enable the selection of different power levels thus to get the best match of price and performance according to customers’load requirements



    2. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation



    3. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system





    Our Service

    Safe-common necessity of company and customers

    Excellent –worker and product

    Efficiency-worker and product

    Environment-enterprise and society





    Why choose us?
    1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
    2. We are sole International sales of the factory, we can help to control and protect the market of clients.
    3. We integrates different kinds of products for air management.
    4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
    5. We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.



    Benefits EC
    Energy savings : Minimum power consumption & better efficiency than AC equivalent.
    Control : 100% speed controllable, not frequency dependant. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal.
    Low motor temperature : for longer lifetime than AC equivalent
    Simplicity : Electronic & power transformation are completely integrated within the motor.



    Advantages of EC technology



    Very high degree of efficiency

    Integrated controller (continuous control)

    Very simple connection

    Additional functions (pressure control, airflow, speed, temperature, air quality, etc.)

    Smaller-sized motor for the same level of performance

    Less power consumption
