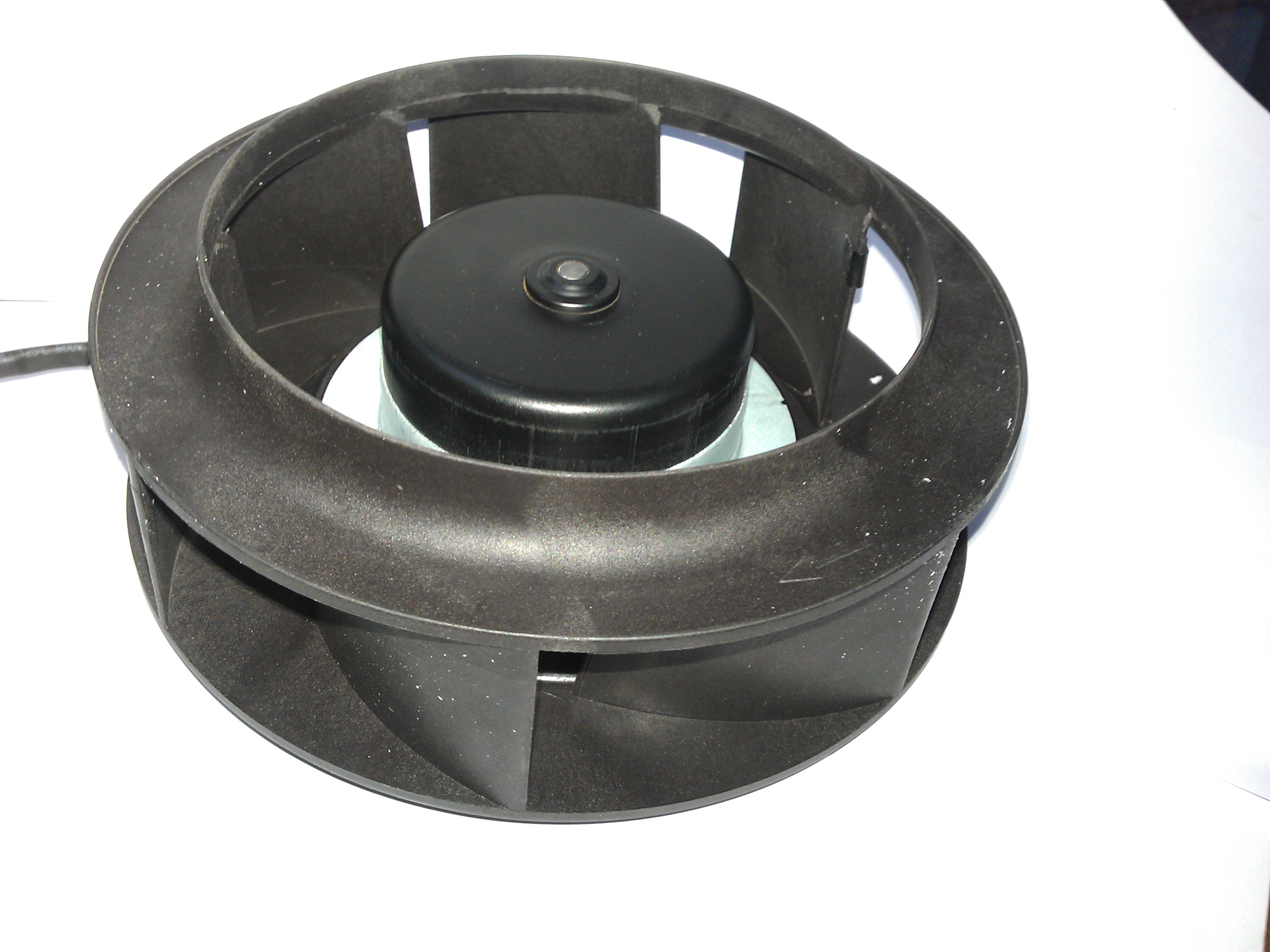

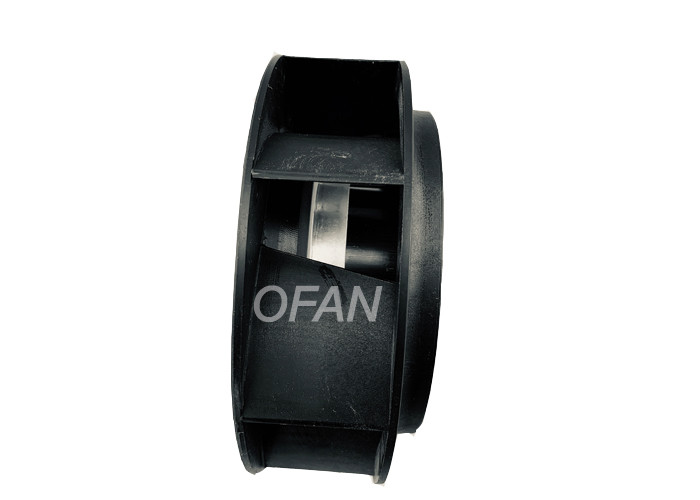

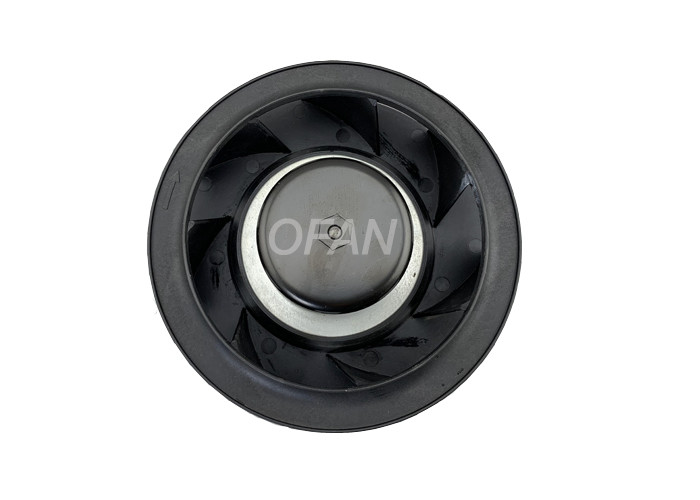

Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower

Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower

    • Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower
    • Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower
    • Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower
  • Parallel Ebm Centrifugal Air Blower , Compact Black Centrifugal Fan Blower

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,UL,3C
    Model Number: LD175N-48D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $10~30/pcs
    Packaging Details: 65*65*70
    Delivery Time: 5-8 word days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs20days
    Contact Now
    Detailed Product Description
    Rated Voltage: 48V Rated Speed: 3100RPM
    Air Flow: 560m³/h Power: 57.6W
    Current: 1.3A Operation Voltage: 36-56V

    Parallel Ebm 175mm DC Centrifugal Fan With New Energy PA66 Refirgeration



    Listed
    Model
    Rated
    Voltage
    Operation
    Voltage
    Rated
    Current
    Power Rated
    Speed
    Air
    Flow
    Air
    Flow
    Air
    pressure
    Noise
    Level
    Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
    LD175N-48D3-01 48 36~56 1.2 57.6 3100 560 330 41.5 70
    LD175N-24D3-01 24 16~28 2.5 60 3100 560 330 36.8 65



















    Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and increase the service life

    Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics



    External rotor axial fans series product:

    1. Compact configuration, convenient installation and credible running

    2. Pressure high, airflow stable

    3. Little noise, energy saving and highly active

    4. Several speed rang, adapt to both frequency conversion and voltage transformation, speed changing active

    5. AC single phase 230+/-10% vor three phase 400+/-10%V are alternative for voltage and 50hz or 60hz for frequency

    6. Extensive application: can be widely used in refrigeration and ventilation fields such as duct fans and roofing fans.

    7. The safety grade of this series if IP54 and the insulation classes are available among B,F and H.

    8. The products have got the CCC certificate in China and CE approval in Europe.



    Energy savings with EC fans
    Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.



    FAQ

    Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.



     if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely
