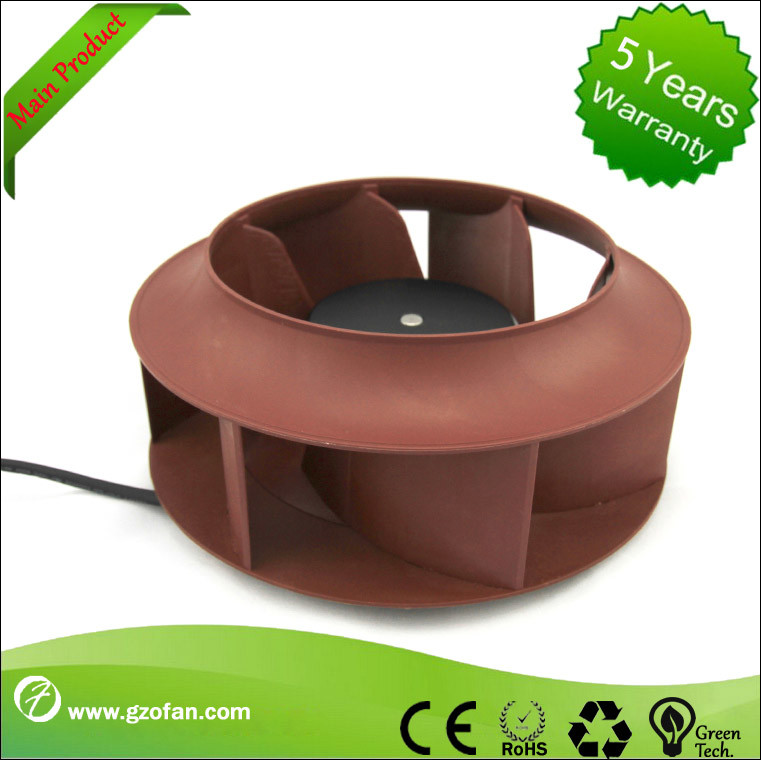

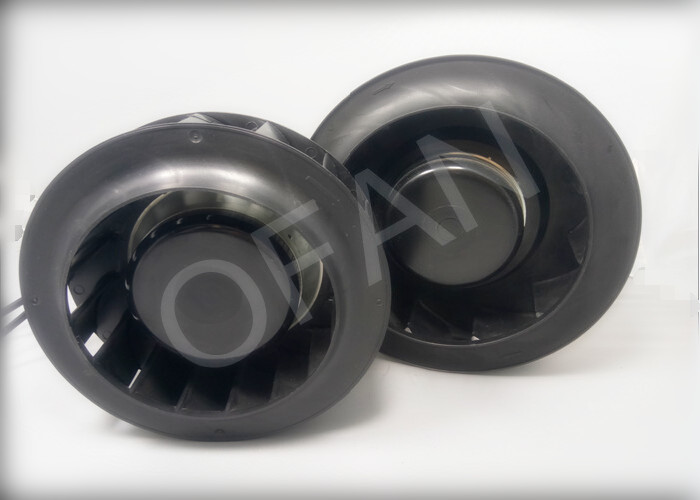

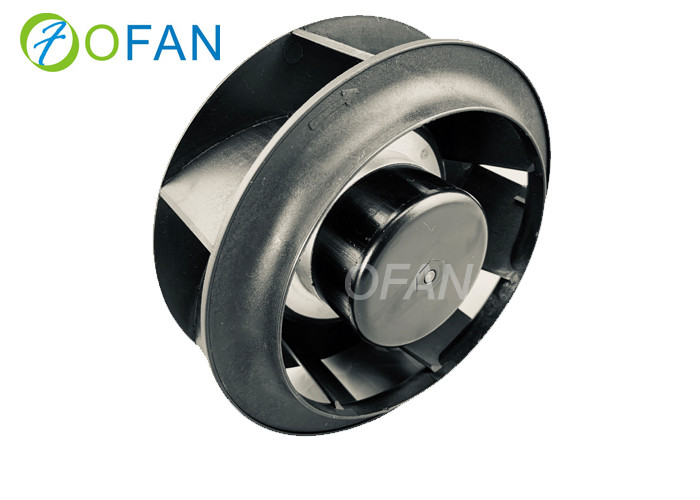

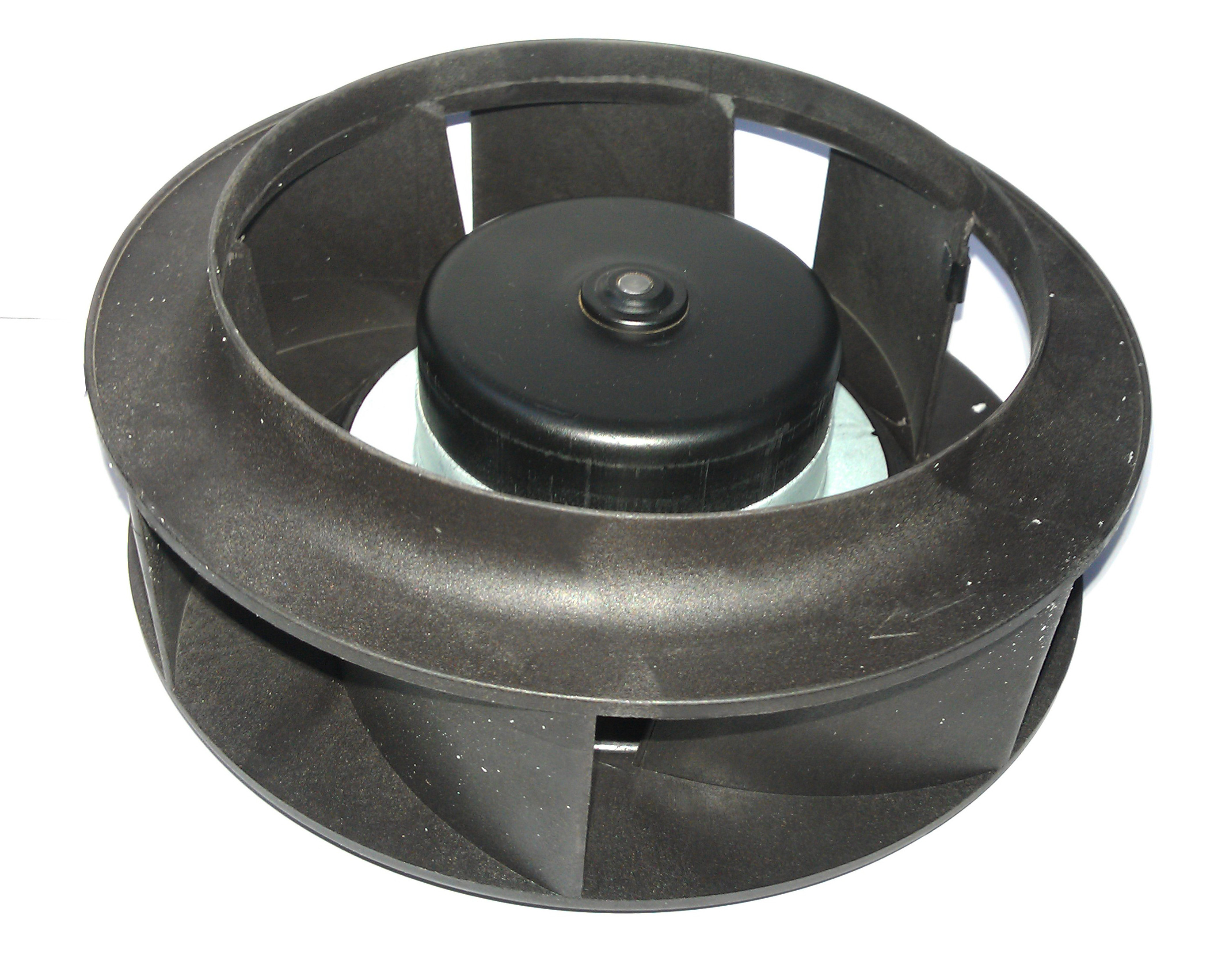

Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans

Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans

    • Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans
    • Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans
    • Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans
    • Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans
  • Multi Blades Dc Ventilation Fan , Brushless Motors Industrial Cooling Fans

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,UL,3C
    Model Number: LD220N-48D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $10~30/pcs
    Packaging Details: 65*65*70
    Delivery Time: 5-8 word days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs20days
    Contact Now
    Detailed Product Description
    Rated Voltage: 48V Rated Speed: 2800RPM
    Air Flow: 972m³/h Power: 77W
    Current: 1.6A Operation Voltage: 36-56V

    Intead Of EBM 190mm DC Centrifugal Fan With Eshaust Ventilation PA66



    Listed
    Model
    Rated
    Voltage
    Operation
    Voltage
    Rated
    Current
    Power Rated
    Speed
    Air
    Flow
    Air
    Flow
    Air
    pressure
    Noise
    Level
    Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
    LD220N-48D3-00 48 36~56 1.5 72 3000 972 573 41.5 70
    LD220N-24D3-00 24 16~28 3.3 79 3000 972 573 36.8 65

















    There is no support for forward curved multi-blades centrifugal fan from 133mm-250mm. Other model have the support. And there is no current collector for backward curved impeller centrifugal fan. You need to inform us if you want the support or current collector for fan model, clarify the fan model, specification, air volume and static pressure before placing an order. Forward curved multi-blades centrifugal fan and back curved impeller centrifugal fan, please take note on the air direction



    Although OFAN, the market leader in EC technology, is a China company, EC has nothing to do with the European Community! In this case, EC stands for Electronically Commutated which basically means it is a fan with a brushless DC motor



    Brushless DC motors have been around for many years but there has always been the need for a separate DC power supply. In applications using only an AC supply this introduced added cost and complexity. Then, in 2003, ebm-papst brought out an EC fan with integrated electronics which could be connected directly to an AC mains supply. In addition to performing the commutation, the electronics convert AC to DC and control the fan speed by regulating the power to the motor.



    EC motor features reverse polarity protection, locked rotor protection and soft start.

    No additional protection such as contactors are required.

    Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.

    A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant





    1.How do I know which model I should choose

    Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

    2. Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.

    3. if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.



    Air performance curves

    Our performance curves are tested in test camber according to DIN 24163 and refer to an air density of 1.2kg/M3. Testing conducted with inlet cone in airflow direction A, without protection guard
