IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan

    • IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan
    • IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan
  • IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS CCC
    Model Number: LE160C-230D3-1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: negotiation
    Packaging Details: 32*32*25
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000/pcs
    Contact Now
    Detailed Product Description
    Name: EC Blower Centrifugal Fan Type: LE140N-48D3-00
    Protection: IP44 Operation Volrage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.0A
    Power: 142W Rated Speed: 2100RPM
    Air Flow 1: 620m³/h Air Flow 2: 369CFM
    Air Pressure: 81.2mmH2O Other Name: Centrifugal Extractor Fan

    IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan



    EC Blower Centrifugal Fan basic functions and performances



    1. Sensorless permanent magnet motor drive

    2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

    3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

    4. Soft start, adjustable acceleration, CVT

    5. Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

    6. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

    7. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma



    EC Blower Centrifugal Fan Details

    1. Insulation Class:B
    2. Bearing: Ball bearing
    3. Mode of operation: Continuous operation(S1)
    4. Operation Temperature:-25℃~+60℃
    5. Weight:4.4kg

    Single Inlet Centrifugal Fans Parameters

    Name: EC Blower Centrifugal Fan Type: LE140N-48D3-00
    Protection: IP44 Operation Volrage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.0A
    Power: 142W Rated Speed: 2100RPM
    Air Flow 1: 620m³/h Air Flow 2: 369CFM
    Air Pressure: 81.2mmH2O Other Name: Centrifugal Extractor Fan

    Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :

    • Electronic cabinet cooling
    • EC fan array
    • Clean room modules
    • Heat exchangers
    • Air filtration
    • Military HVAC
    • Medical appliances
    • Plastic extrusion
    • Fume hoods
    • Pharmaceutical equipment
    • Semiconductor industry

    FAQ



    Are you a factory or trading company?

    We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM

    How do I know which model I should choose

    Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

    Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.

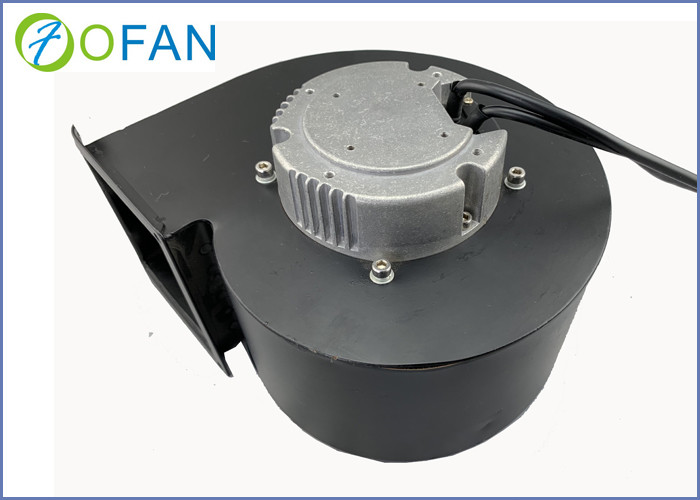

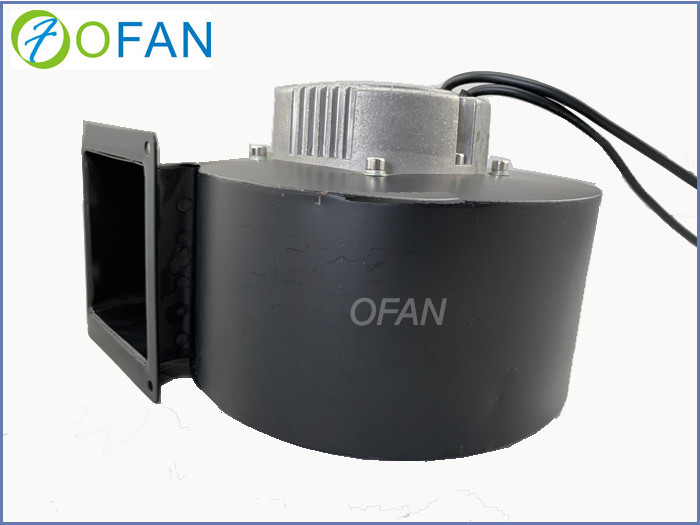

    EC Blower Centrifugal Fan Pictures



    IP44 EC Blower Centrifugal Fan / Silent Centrifugal Extractor Fan
