Home ProductsSingle Inlet Centrifugal Fans

Air Cleaner EC 69dba 1.0A Single Inlet Centrifugal Fans

Air Cleaner EC 69dba 1.0A Single Inlet Centrifugal Fans

Air Cleaner EC 69dba 1.0A Single Inlet Centrifugal Fans
Air Cleaner EC 69dba 1.0A Single Inlet Centrifugal Fans

Product Details:

Place of Origin: China
Brand Name: OFAN
Certification: CE ROHS CCC
Model Number: LE160C-230D3-01

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: 32*32*25
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000/pcs
Contact Now
Detailed Product Description
Name: EC Single Inlet Centrifugal Fans Type: LE160C-230D3-01
Application: Air Conditioning Operation Volrage: 176-264VAC
Frequency: 50/60HZ Rated Current: 1.0A
Power: 142W Rated Speed: 2100RPM
Air Flow 1: 620m³/h Air Flow 2: 369CFM
Air Pressure: 81.2mmH2O Noise Level: 69dba
High Light:

1.0A Single Inlet Centrifugal Fans

,

EC Single Inlet Centrifugal Fans

,

264VAC Ec Fan

Air Cleaner Ec Fan Single Inlet Centrifugal Fans Forclean Bench Fan 160mm



How does this affect energy efficiency?



1. Doubling the speed of a motor increases its power input by a factor of 8 so it’s very wasteful to run a fan faster than is required. If you can tailor the fan speed to match the demand, the potential for energy saving is huge. Even when compared to on/off operation, EC speed modulation is much more efficient.



2. EC fans can also contribute to increasing the overall efficiency of an application. In a cooling system for example, keeping the refrigerant pressure constant rather than having it rise and fall as fans switch on and off has been found to reduce the load on the compressor resulting in even greater energy saving.



Single Inlet Centrifugal Fans Details

  1. Material: Scroll Housing and impeller make of galvanised sheet steel
  2. Option: Also available with discharge flange
  3. Technical Features: Control input 0-10V/PWM, tach output
  4. Type of protection: IP44
  5. Insulation Class:B
  6. Bearing: Ball bearing
  7. Mode of operation: Continuous operation(S1)
  8. Operation Temperature:-25℃~+60℃
  9. Weight:4.4kg

Single Inlet Centrifugal Fans Parameters



Name: EC Single Inlet Centrifugal Fans Type: LE160N-230D3-0
Application: Air Conditioning Operation Volrage: 176-264VAC
Frequency: 50/60HZ Rated Current: 1.0A
Power: 142W Rated Speed: 2100RPM
Air Flow 1: 620m³/h Air Flow 2: 369CFM
Air Pressure: 81.2mmH2O Noise Level: 69dba



Why choose us?



  1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
  2. We are sole International sales of the factory, we can help to control and protect the market of clients.
  3. We integrates different kinds of products for air management.
  4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
  5. We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.

FAQ



Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM

How do I know which model I should choose

Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.





Application :

Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :

  • Electronic cabinet cooling
  • EC fan array
  • Clean room modules
  • Heat exchangers
  • Air filtration
  • Military HVAC
  • Medical appliances
  • Plastic extrusion
  • Fume hoods
  • Pharmaceutical equipment
  • Semiconductor industry
  • drying systems
  • aeration applications
  • .................

Our Services

1. Warranty: 1 year warranty for all products.

2. Private Labelling: All of axial fans are able to be Private labeled.

3. Products Quality: 100% products inspection before delivery.

4. Just in time delivery: Normally, Lead time is 30 days.

5. Prompt customers Services: E-mail will be replied in 24 hours.

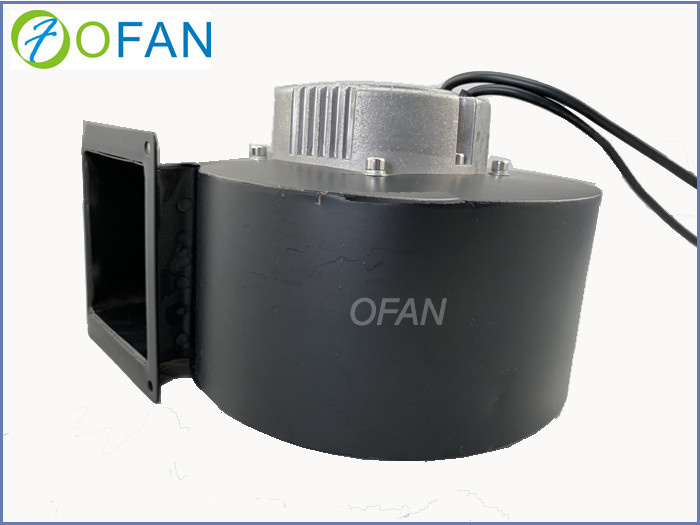

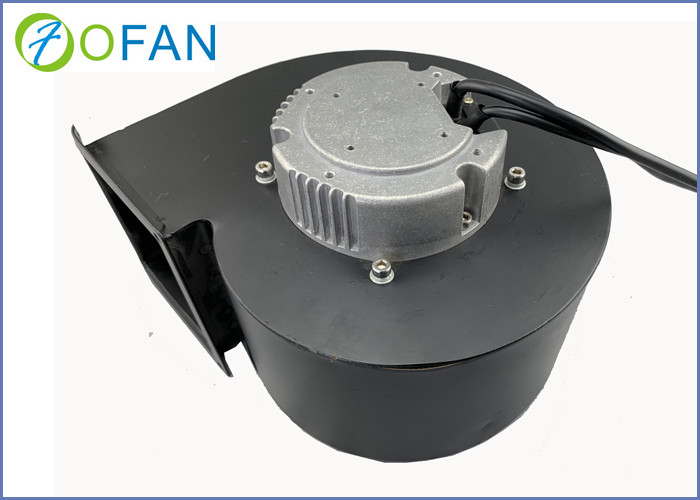

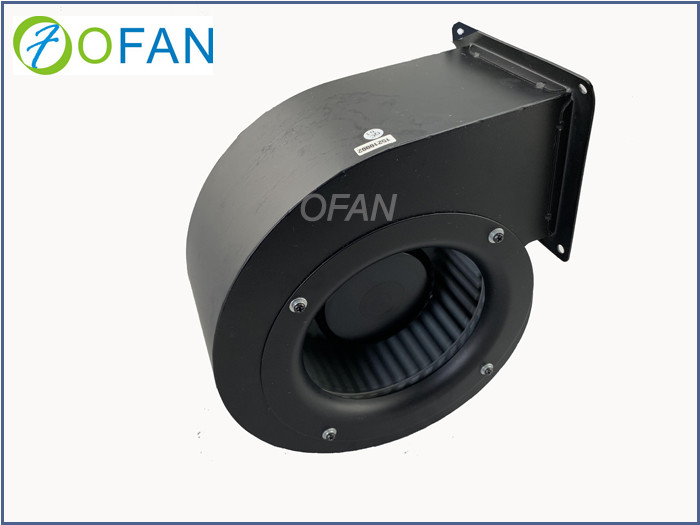

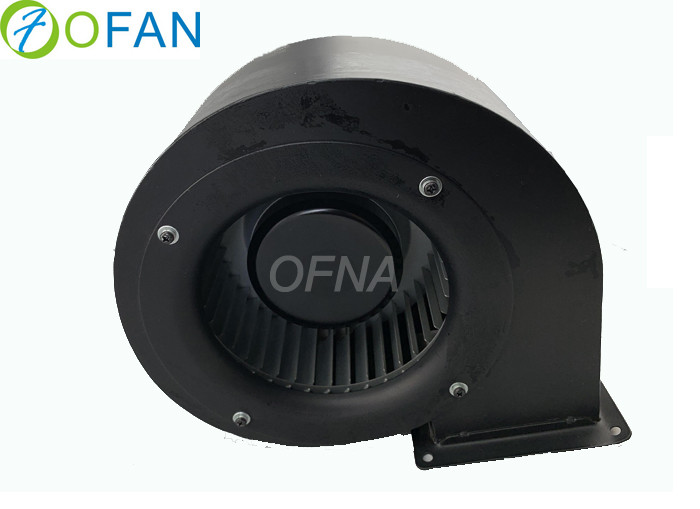

Single Inlet Centrifugal Fans Pictures



Air Cleaner EC 69dba 1.0A Single Inlet Centrifugal Fans 0
