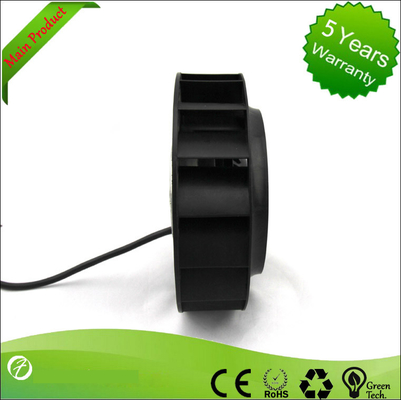

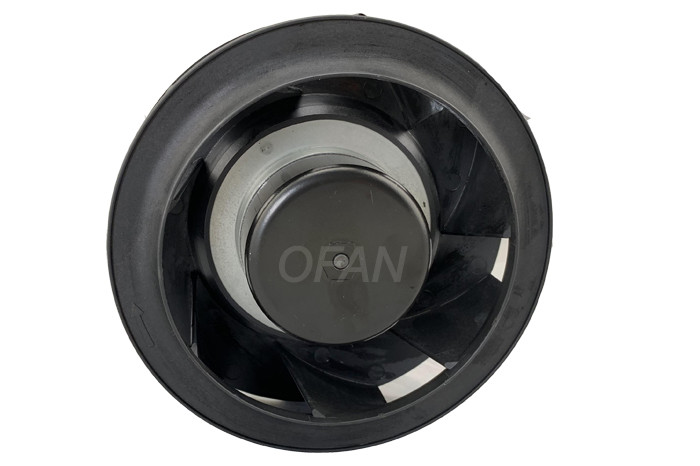

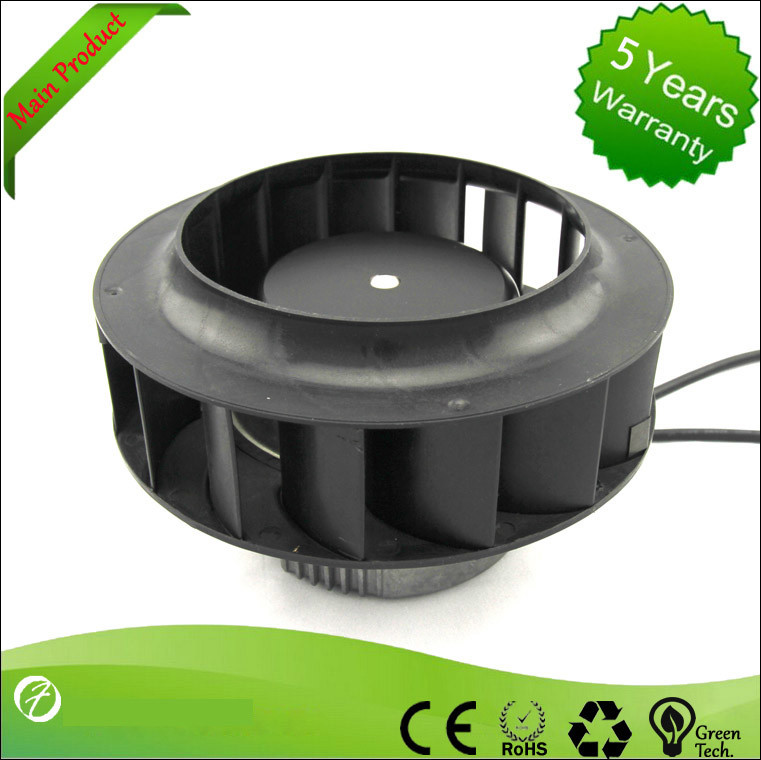

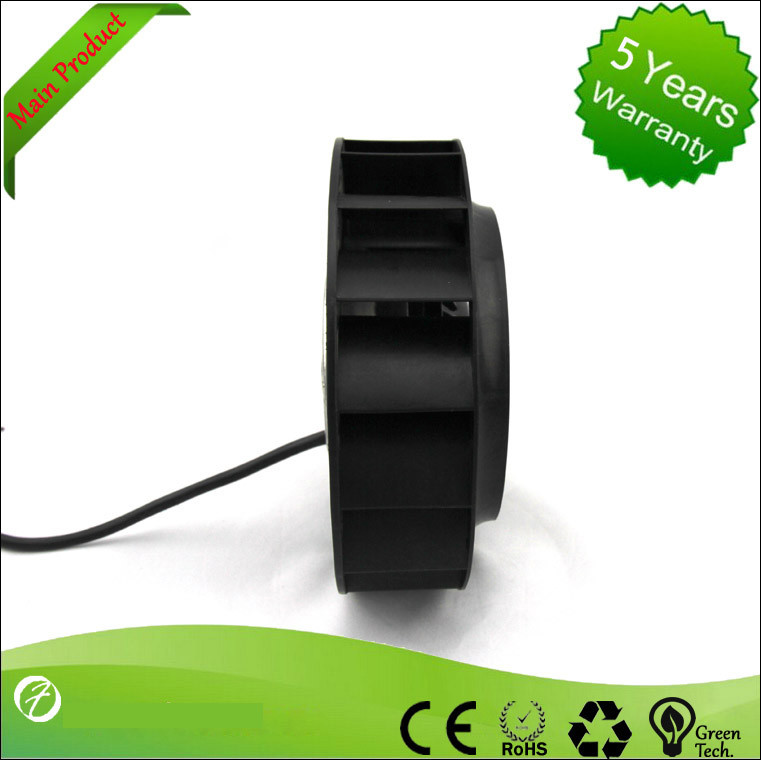

Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades

Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades

    • Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades
    • Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades
    • Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades
    • Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades
  • Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD225C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 15 word days
    Payment Terms: D/A, D/P, L/C, T/T
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power: 75W Air Flow: 1080m³/h
    Rated Speed: 2450RPM Curreng Draw: 0.6A
    Frequency: 50/60HZ Nomual Voltage: 220V

    Resemble Ebm-past PA66 EC Centrifugal Fans With Backward Curved Blades



    Currently, both at home and abroad, the EC axial fan has been widely used in various fields, especially ventilation, large air conditioning and refrigeration. The compact structure and continuous controllability of EC centrifugal fan has been into full play to air handing units, computer modules, communication systems ,clean room systems, roof fans, home machine automotive and rail technology



    Type

    Nomual voltage

    (VAC)

    Frequency

    (HZ)

    Speed

    (rpm)

    Power imput

    (w)

    Curreng draw

    (A)

    Sound pressurelevel

    (dB)

    Perm.amb.temp
    LD225C-230D3-00 220 50/60 2450 75 0.6 65 -20~+60



    Protection: over voltage, over temperature, over current, phase loss detection, communication failures.



    The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma



    The basic parameters of field programmable: Maximum speed, minimum speed, maximum power, maximum current,resonance avoid

    Constant air pressure controlling function



    Embedded design



    Electro magnetic compatibility (EMC)



    Energy savings with EC fans


    Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.

    AC fan 2800hrs @ 4 x 1.41kW = 5.64kW 15,792 kWh
    5600hrs @ 4 x 0.62kW = 2.48kW 13,888 kWh
    Total A 29,680 kWh
    EC fan 2800 hrs @ 4 x 1.04kW = 4.16kW 11,648 kWh
    5600 hrs @ 4 x 0.27kW = 1.08kW 6,048 kWh
    Total B 17,696 kWh
    A minus B 11,984kWh saved with the EC fan



     if the fans doesn't work well, what shall I do ?



    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
    If after one year, we will supply you the right parts to replace at low price.





    Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.
