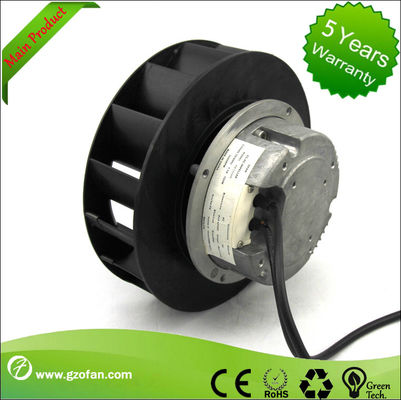

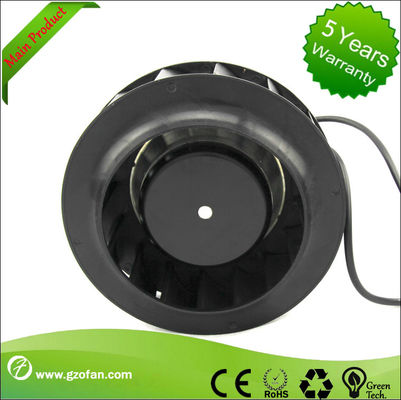

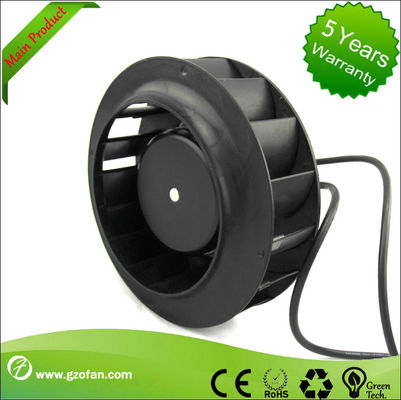

Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade

Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade

    • Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade
    • Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade
    • Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade
  • Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD175N-310D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD175N-310D3-00 Rated Voltage: 310V
    Rated Current: 0.19A Rated Speed: 3300RPM
    Power Iput: 60W Air Flow: 560m³/h
    Name: Centrifugal Blower Fan

    Fresh Air System Centrifugal Fan With Filtering Ffu For Ld175n-310d3-00





    1.   Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation            currents; realizing the small loss an high efficiency characteristics

    2.   The components, such ac inverters etc, whose capacity is low, and circuit are simpler, the cost lower          than ec blower’s

    3. Variable speed control of dC fan can be realized / achievedvia 0-10V speed adjustment and/or external       circuit impulse modulation

    4.   EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation          circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the             AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and                     application of the overall power system in customer





    Specifications:

    Model Number:LD175N-310D3-00

    Rated Voltage:310V

    Rated Speed:3300RPM

    Power:60w

    Rated Current:0.19A

    Air Flow:560m³/h



    Material:PA66

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK

    Brushless DC Centrifugal Fans And Blowers With Backward Curved Blade
