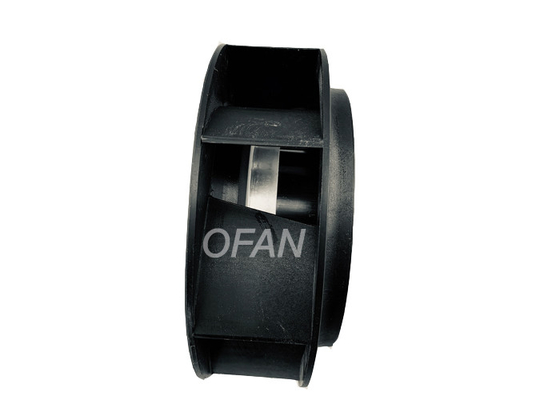

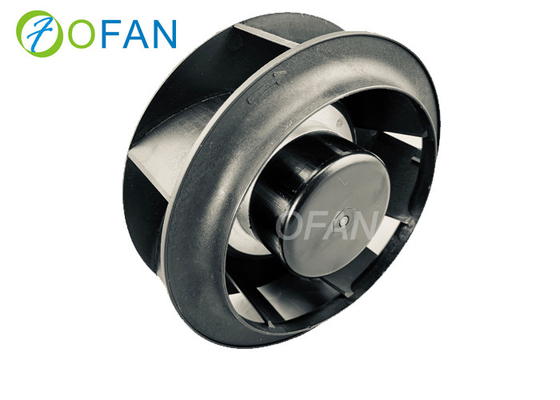

Brushless Motor DC Centrifugal Fan With Backward Curved Blades For Bathroom / Kitchen

Brushless Motor DC Centrifugal Fan With Backward Curved Blades For Bathroom / Kitchen

    • Brushless Motor DC Centrifugal Fan With Backward Curved Blades For Bathroom / Kitchen
    • Brushless Motor DC Centrifugal Fan With Backward Curved Blades For Bathroom / Kitchen
  • Brushless Motor DC Centrifugal Fan With Backward Curved Blades For Bathroom / Kitchen

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD190N-310D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD190N-310D3-00 Rated Voltage: 310V
    Rated Current: 0.22A Rated Speed: 3200RPM
    Power Iput: 68W Air Flow: 580m³/h

    Air Flow Evenly Bathroom Exhaust Fan Withld190n-310d3-00





    Specifications:

    Model Number:LD190N-310D3-00

    Rated Voltage:310V

    Rated Speed:3200RPM

    Power:68w

    Rated Current:0.22A

    Air Flow:580m³/h



    Material:PA66

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK



    1. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics

    2. More power
    3. Centrifugal fans with backward curved blades are used primarily for intake suction and do not require a scroll housing. They have high hydraulic efficiency

    4. Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via 180,sine SVPWM(Space Vector PWM)to meet customer needs
