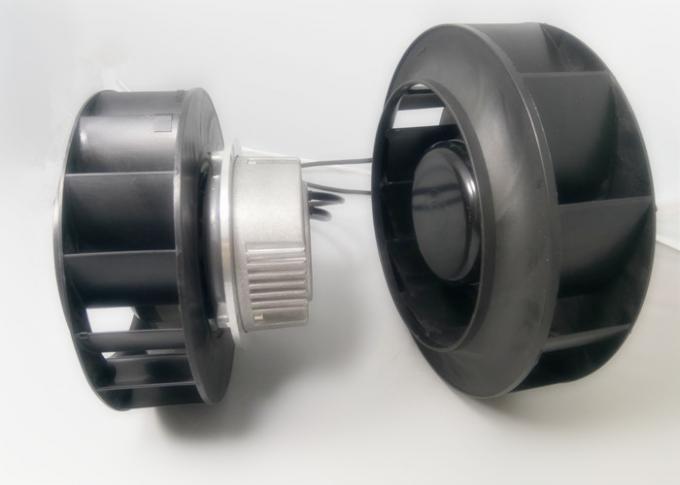

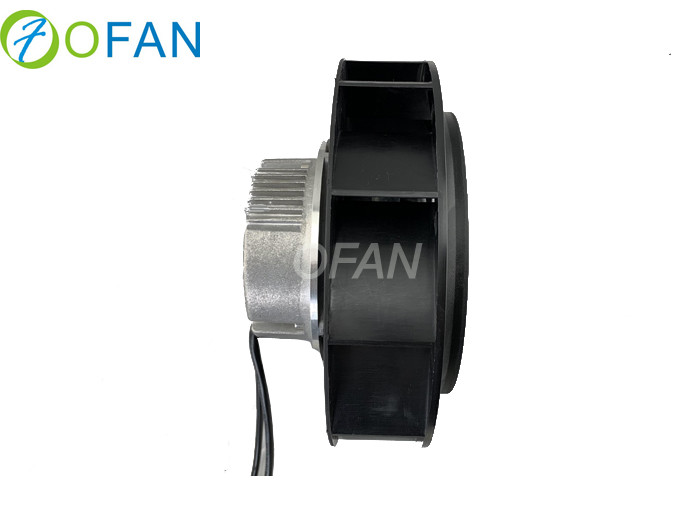

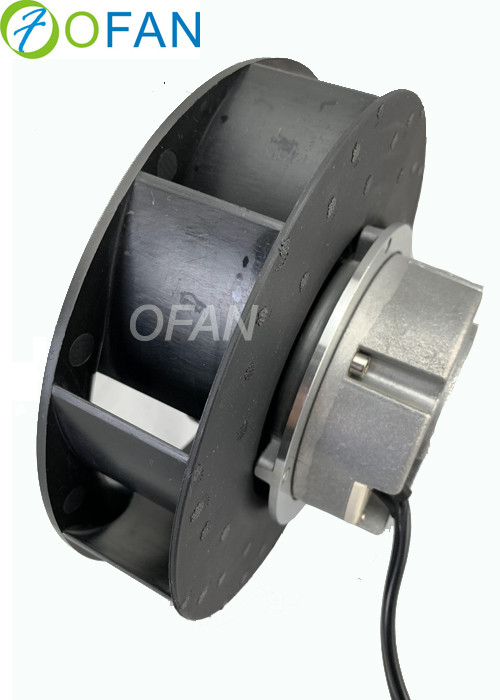

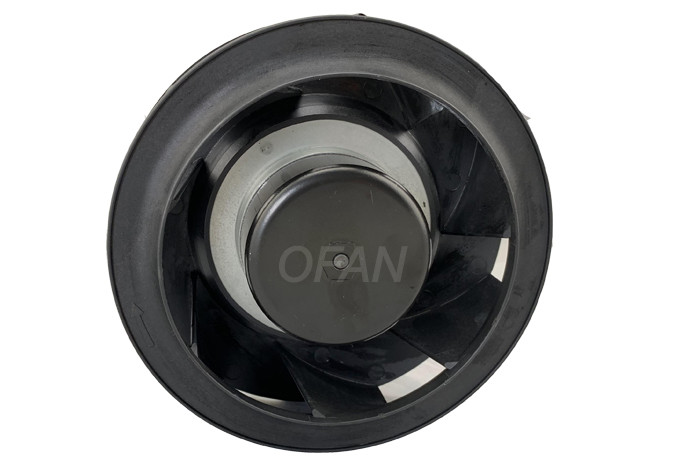

EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm

    • EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm
    • EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm
    • EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm
    • EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm
  • EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE
    Model Number: LD225C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: 600*600*50
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Nominal Voltage: 220VAC Speed: 2500pm
    Power Input: 80W Current Draw: 0.6A
    Air Flow: 1200m³/h Sound Pressure Level: 69db

    EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm



    Key Specifications/Special Features:

    Type LD225C-230D3-00
    Nominal voltage 230VAC
    Speed 2500RPM
    Power input 80W
    Current draw 0.6A
    Air Flow 1200m³/h
    Sound pressure level 69dB
    • Benefits over traditional fan and motor technology:
    • Reduced energy consumption
    • Significant noise reduction
    • Stepless and infinite variable speed control
    • No need for additional motor protection
    • Remote monitoring via MODBUS
    • Compact motors making them fully interchangeable with AC products for retrofit
    • Fully integrated, mains input power supplies
    • Fully sealed electronics
    Features:
    • Size: 225mm diameter X 89mm
    • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
    • Fully integrated electronic commutation.
    • Protect against reverse polarity and locking.
    • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.

    EC Brushless Motor Backward Curved Centrifugal Fan Blower Quiet 225mm X 89mm
