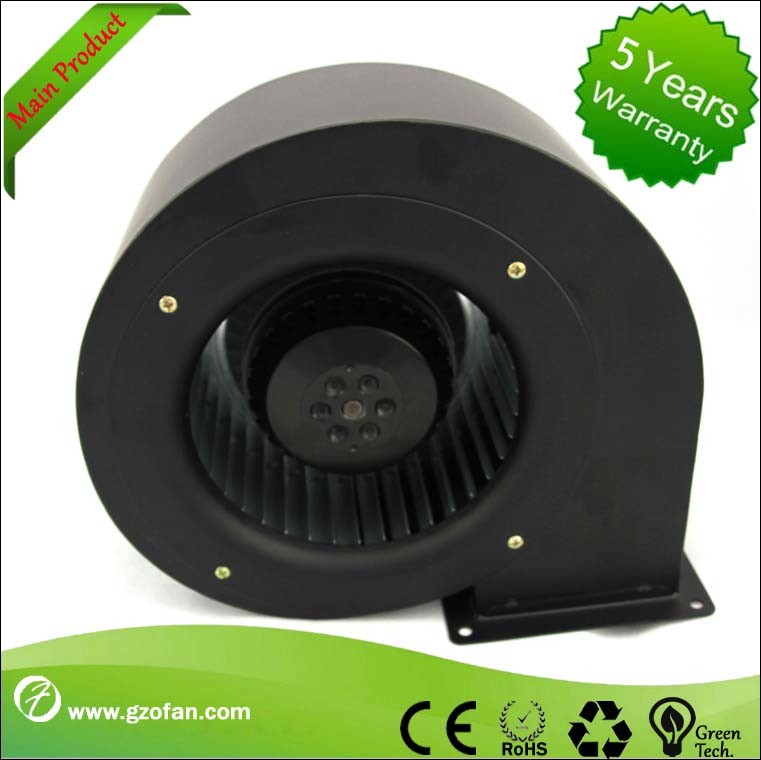

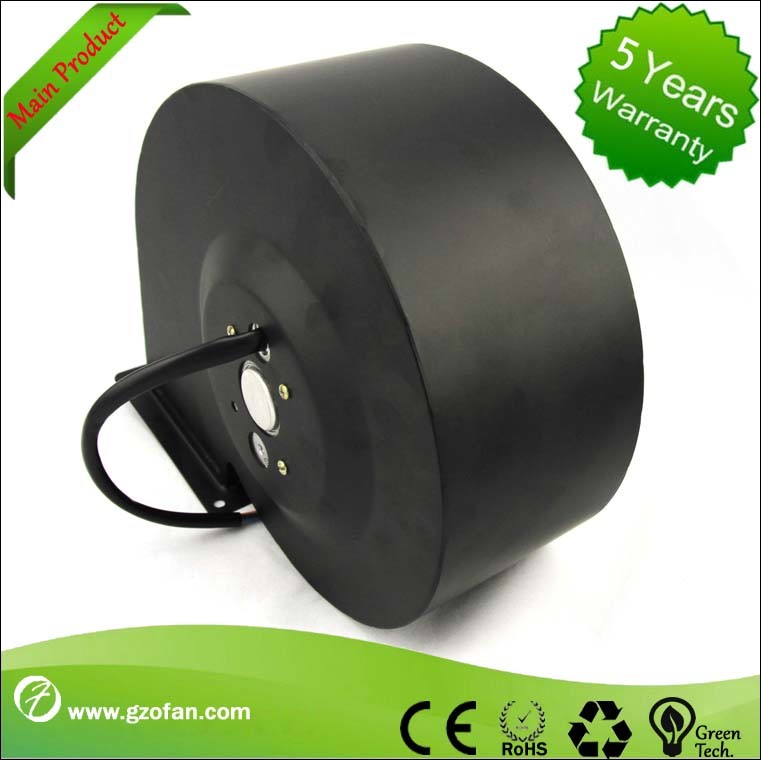

EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure

EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure

    • EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure
    • EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure
  • EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE
    Model Number: LE133N-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: 600*600*50
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Nominal Voltage: 220VAC Speed: 1560rpm
    Power Input: 32W Current Draw: 0.26A
    Air Flow: 260m³/h Sound Pressure Level: 60db

    Sheet Steel Ec Forward Centrifugal Blower Le133n-230d3-00





    Key Specifications/Special Features:

    Type LE133C-230D3-00
    Nominal voltage 230VAC
    Speed 1560RPM
    Power input 32W
    Current draw 0.26A
    Air Flow 260m³/h
    Sound pressure level 63dB







    A. Motor speed is not affected by power frequency
    B. Speed range is big
    C. the motor is stepless speed
    D. starting moment is big
    E. motor high efficiency range is big
    F. the volume is very compact.
    G. motor efficiency is high(>80%)

    H, Motor efficiency loss is le





    EC fans with integrated commutation electronics offer a high efficiency across the entire speed range, optimum noise characteristics with minimum installation complexity, and overall unmatched cost-effectiveness



    Features:



    • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
    • Fully integrated electronic commutation.
    • Protect against reverse polarity and locking.
    • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.

    EC Forward Curved Centrifugal Fan , Industrial Fans And Blowers High Pressure
