Large discount low noise Efficient energy saving air cooler centrifugal fan

    • Large discount low noise Efficient energy saving air cooler centrifugal fan
    • Large discount low noise Efficient energy saving air cooler centrifugal fan
    • Large discount low noise Efficient energy saving air cooler centrifugal fan
    • Large discount low noise Efficient energy saving air cooler centrifugal fan
  • Large discount low noise Efficient energy saving air cooler centrifugal fan

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,ROSH
    Model Number: RD315

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton
    Delivery Time: 10 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    Type: RD315 Speed: 2400pm
    Power: 215w Current Draw: 0.93A
    Nominal Voltage: 220V Air Flow: 1850m³/h

    Large discount low noise Efficient energy saving air cooler centrifugal fan ​




    Type



    RD315

    Nominal voltage



    220v

    Speed



    2400RPM

    Power input



    215w

    Current draw



    0.93A

    Air Flow



    1850m³/h

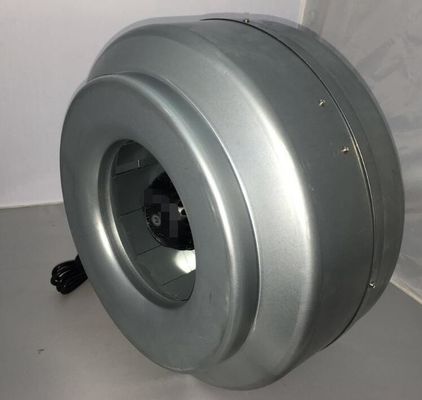

    Steel Type Backward Circular Duct Fan


    1. Range of centrifugal high performance fans to convey in ducts air or fumes with a maximum temperature of 50℃.


    2. Suitable for appliances in domestic, commercial and industrial such as bathrooms, kitchens, offices, factories, supermarket, bars, gymnasiums, restaurants etc…


    3. Complete range of inlet and outlet diameters to allow the installations in most standard sizes of commercial ducts.


    4. The range is composed by 7 models either steel type with high performances then plastic type that offers a good noise level and reduction in energy consumption increasing the life of products.


    5. All the models mount ball bearing motors with thermal protector.


    6. Steel type body, high resistance motor support with incorporated airflow fins. Mounting bracket integrated with the product that allows installation in any position. Holes provided in the bracket allow mounting with cords.


    7. Installation and electric connection is particularly fast and easy.


    8. Electric boxes with IP54 protection class.


    9. Product protection class is IP44.


    10. Double insulated product, electric grounding is not necessary.


    11. Motor speed can be regulated with an optional electronic regulator.


    Safe-common necessity of company and customers


    Excellent –worker and product


    Efficiency-worker and product


    Environment-enterprise and society




    Large discount low noise Efficient energy saving air cooler centrifugal fan
