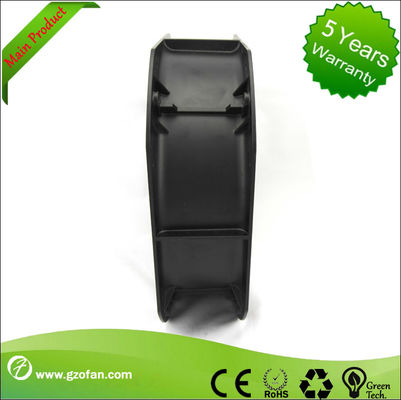

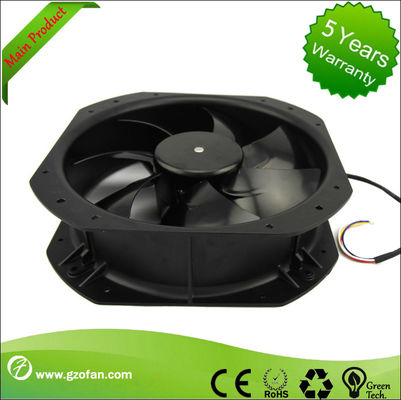

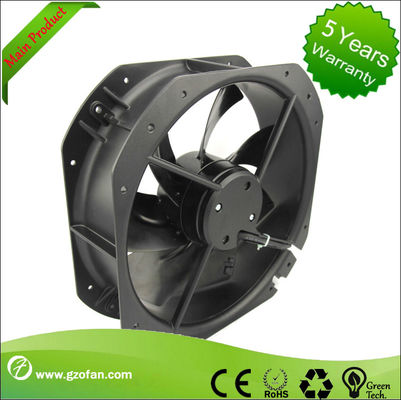

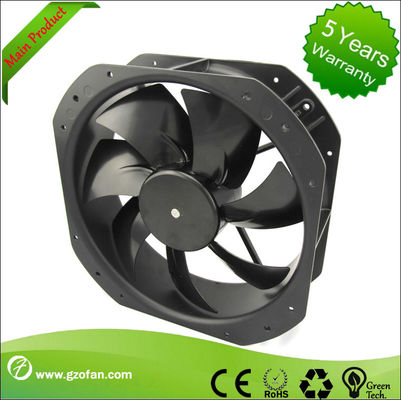

Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89

Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89

    • Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89
    • Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89
    • Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89
    • Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89
  • Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZX254N-24D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: ZX254N-24D3-00 Rated Voltage: 24VDC
    Rated Current: 48A Power: 120W
    Rated Speed: 2300RPM Air Flow: 1609m³/h

    Resemble EBM-past 24V DC Axial Fans 120W HVAC Industry Sheet Steel 254*89



    Type

    Nominal voltage

    (VAC)

    Frequency

    (HZ)

    Rated Speed

    (RPM)

    Power

    (W)

    Air Flow

    (m³/h)

    Sound pressure

    (dB)

    Prem.amb.temp
    ZX254N-24D3-00 24 50/60 2300 120 1609 55 -20~+60



    1. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    2. Enable the selection of different power levels thus to get the best match of price and performance according to customers’load requirements



    3. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation



    4. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system



    5. Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation





    OFAN provides the most comprehensive services, includes: product diversification, against the clock delivery, documents support, and technical consulting service. “Customer is partner” is key to our success; ”Win the contract for customer” is our ultimate goal
