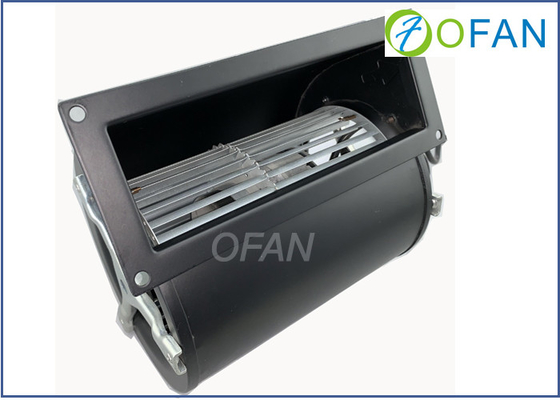

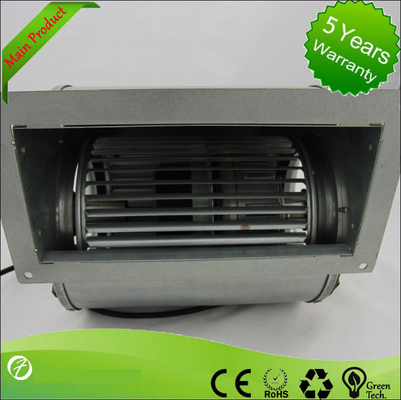

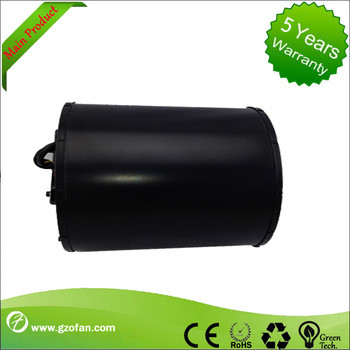

EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System

EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System

    • EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System
    • EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System
    • EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System
    • EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System
  • EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LW133C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: 46*45*25
    Delivery Time: 10 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Type: LW133C-230D3-00 Voltage: 220v
    Power: 135W Current: 1.11A
    Air Flow: 820m³/h Speed: 1950RPM

    EC High Air Flow Double Inlet Fan Centrifugal Air Blower For Air Ventilation System





    Type



    LW133C-230D3-00



    Voltage



    220V



    Air Flow



    820m³/h



    Power



    135w



    Current



    1.1A



    Speed



    1950rpm



    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer.



    2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    3.Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)


    4. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.


    5. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma


    6.The basic parameters of field programmable: Maximum speed, minimum speed, maximum power, maximum current, resonance avoid



    OFAN provides the most comprehensive services, includes: product diversification, against the clock delivery, documents support, and technical consulting service. “Customer is partner” is key to our success; ”Win the contract for customer” is our ultimate goal.



    Advantages of EC technology
    Very high degree of efficiency


    Integrated controller (continuous control)


    Very simple connection


    Additional functions (pressure control, airflow, speed, temperature, air quality, etc.)


    Smaller-sized motor for the same level of performance


    Less power consumption



    Application :
    Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :
    Electronic cabinet cooling
    EC fan array
    Clean room modules
    Heat exchangers
    Air filtration
    Military HVAC
    Medical appliances
    Plastic extrusion
    Fume hoods
    Pharmaceutical equipment
    Semiconductor industry
