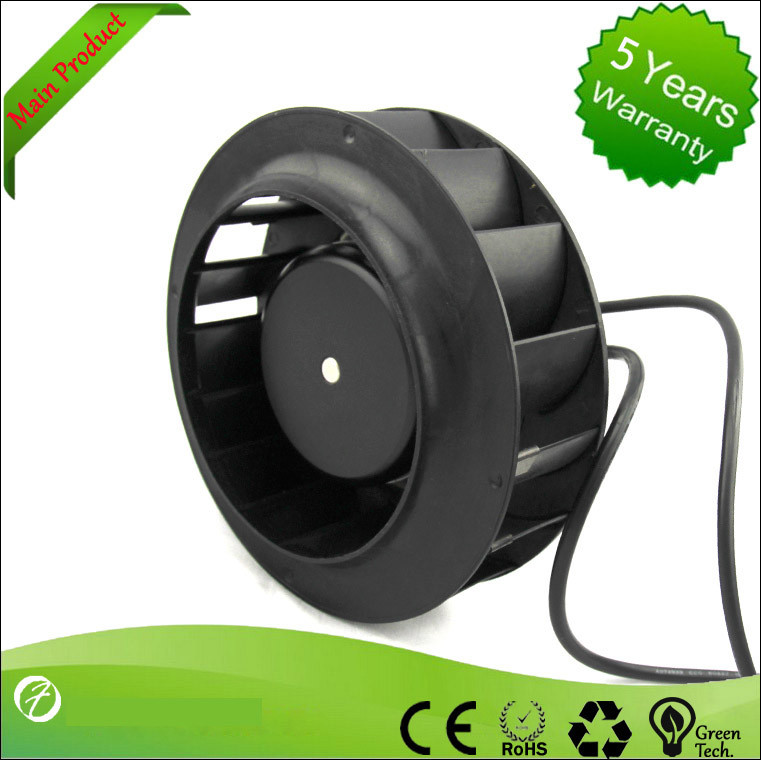

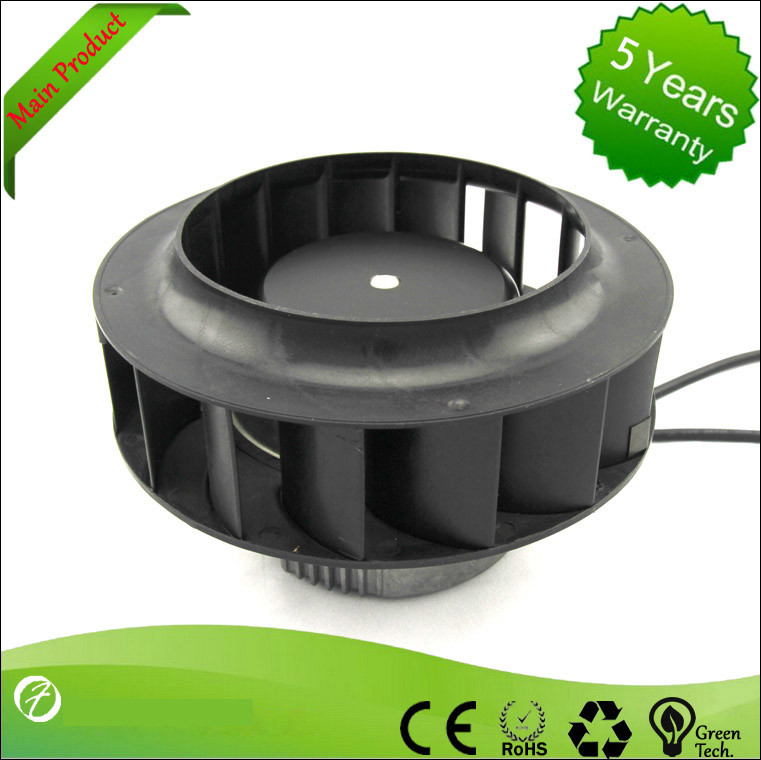

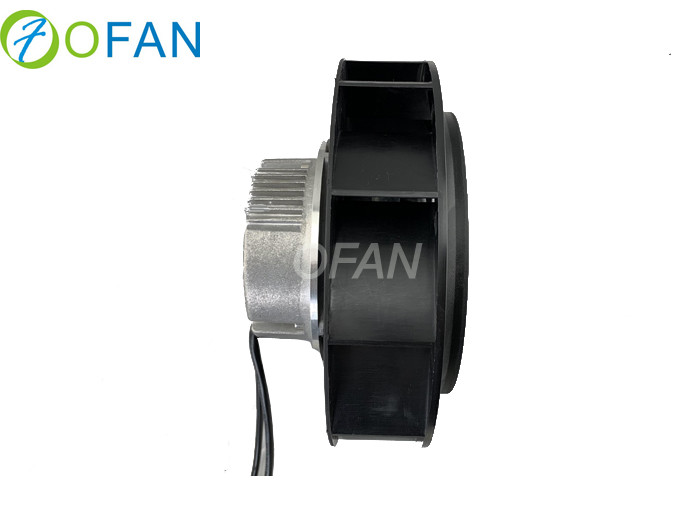

Similar Ebm-past EC Centrifugal Fans Energy Saving 60w Telecom

Similar Ebm-past EC Centrifugal Fans Energy Saving 60w Telecom

    • Similar Ebm-past EC Centrifugal Fans  Energy Saving 60w Telecom
    • Similar Ebm-past EC Centrifugal Fans  Energy Saving 60w Telecom
    • Similar Ebm-past EC Centrifugal Fans  Energy Saving 60w Telecom
  • Similar Ebm-past EC Centrifugal Fans  Energy Saving 60w Telecom

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE CCC ROHS
    Model Number: LD175C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD1-100 PCS
    Packaging Details: Simple packing
    Delivery Time: 15 work days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD175C-230D3-00 Nominal Voltage: 230V
    Speed: 3650rpm Power Imput: 82w
    Current Draw: 0.65A Air Flow: 660

    Similar Ebm-past EC Centrifugal Fans Energy Saving 60w Telecom





    Type

    Nomual voltage

    (VAC)

    Frequency

    (HZ)

    Speed

    (rpm)

    Power imput

    (w)

    Curreng draw

    (A)

    Sound pressurelevel

    (dB)

    Perm.amb.temp
    LD175C-230D3-00 230 50/60 3650 82 0.65 58



     -20~+60







    1. EC is easy



    Permanent magnet motors running on high voltage direct current (DC) electricity with built in AC to DC conversion allowing them to run direct from single phase or three phase mains supplies. There are several suppliers of such motors





    Control options



    To control the motor accurately and efficiently the integrated electronics have to continuously monitor the motor speed and adjust the control input. By making this circuitry available to external sources it’s possible to provide simple speed control options. Dependent on the motor type, any sensor which can provide a 0-10V/PWM or 4-20mA input can be directly connected to provide closed loop control for temperature, pressure or whatever parameter you choose to measure. No need to worry about DC supplies for the sensors either, this is provided by another connection on the motor. In fact, simply connect a potentiometer and you have infinitely variable speed control. No triacs, no frequency inverters and no whining noises! An EC motor under speed control is virtually silent.





    How does this affect energy efficiency?



    EC fans can also contribute to increasing the overall efficiency of an application. In a cooling system for example, keeping the refrigerant pressure constant rather than having it rise and fall as fans switch on and off has been found to reduce the load on the compressor resulting in even greater energy saving





    Advantages of GreenTech EC technology





    Easy 1:1 replacement from AC technology to GreenTech EC technology

    Can be used worldwide (due to wide voltage input)

    Over 10 years of experience in the area of EC technology

        GreenTech as implemented purchase proposition





    Six reasons that make us the ideal partner:



    Our systems expertise. As experts in advanced motor technology, electronics and aerodynamics, we provide system solutions from a single source.

    Our spirit of invention. Our 60 engineers and technicians will develop a solution that precisely fits your needs.



    Similar Ebm-past EC Centrifugal Fans  Energy Saving 60w Telecom
