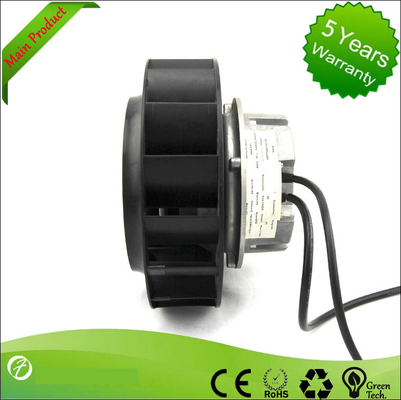

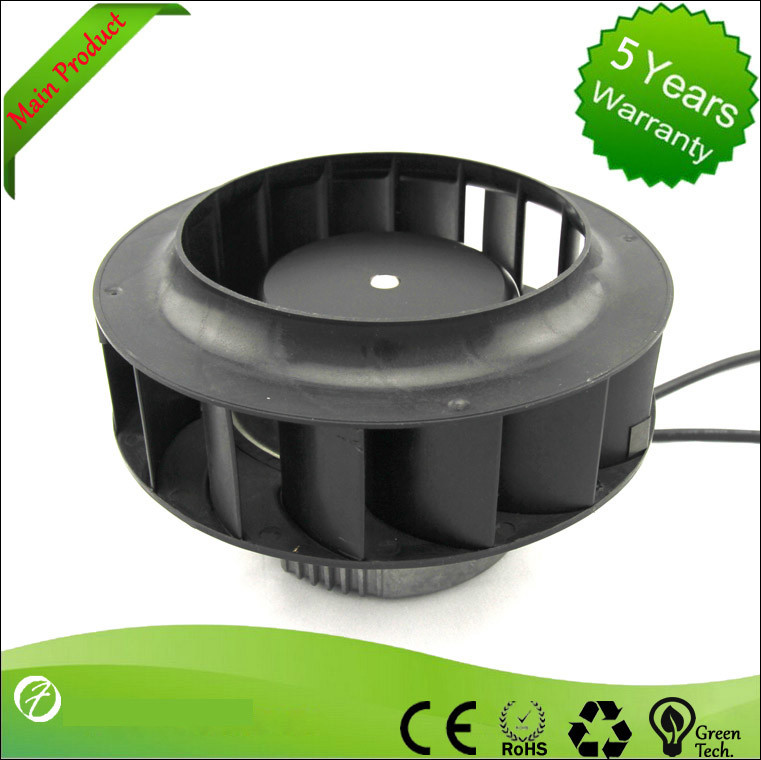

Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm

Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm

    • Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm
    • Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm
  • Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm

    Product Details:

    Place of Origin: china
    Brand Name: OFAN
    Certification: ce ccc
    Model Number: LD225C-230D3-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD1-100 PCS
    Packaging Details: 45*45*24
    Delivery Time: 5-8 work days
    Payment Terms: D/P, D/A, L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS15days
    Contact Now
    Detailed Product Description
    Type: LD225C-230D3-02 Nominal Voltage: 230v
    Speed: 2450rpm Power Imput: 75w
    Current Draw: 0.6A Air Flow: 880m3/h

    Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm



    What is EC technology?



    EC Technology stands for Electronically Commutated and combines AC and DC voltages, which is essentially a fan with a brushless DC motor, bringing the best of both technologies: the motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application, the power needed converting AC to DC, using a bulky, inefficient transformer. The EC motor incorporates voltage transformation within the motor. The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.





    Energy savings with EC fans



    Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.

    AC fan 2800hrs @ 4 x 1.41kW = 5.64kW   15,792 kWh
      5600hrs @ 4 x 0.62kW = 2.48kW   13,888 kWh
        Total A 29,680 kWh
    EC fan 2800 hrs @ 4 x 1.04kW = 4.16kW   11,648 kWh
      5600 hrs @ 4 x 0.27kW = 1.08kW   6,048 kWh
        Total B 17,696 kWh
        A minus B 11,984kWh saved with the EC fan





    Six reasons that make us the ideal partner:



    1. Our systems expertise. As experts in advanced motor technology, electronics and aerodynamics, we provide system solutions from a single source.

    2. Our spirit of invention. Our 60 engineers and technicians will develop a solution that precisely fits your needs.

    3. Our lead in technology. Our OFAN EC technology is setting standards worldwide. And our lead is your competitive advantage.

    4. Proximity to our customers. At 20 sales offices worldwide.

    5. Our standard of quality. Our quality management is uncompromising, at every step in every process.

    6. Our sustainable approach. We assume responsibility with our energy-saving products, environmentally-friendly processes, and social commitment.











    Low Noise Rail Transportation Industrial Fan Blower Filtering Ffu 225mm
