EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation

    • EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation
    • EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation
  • EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS CCC
    Model Number: LE160C-230D3-1

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: negotiation
    Packaging Details: 32*32*25
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000/pcs
    Contact Now
    Detailed Product Description
    Name: EC Single Inlet Centrifugal Fans Type: LE140N-48D3-00
    Application: Air Conditioning Operation Volrage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.0A
    Power: 142W Rated Speed: 2100RPM
    Air Flow 1: 620m³/h Air Flow 2: 369CFM
    Air Pressure: 81.2mmH2O Noise Level: 69dba

    EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation



    Single Inlet Centrifugal Fans Introduction



    The applicable ambient temperature of the fan motors used in condenser is from -30~60



    The average service life of motors is over 30000 hours



    Our products have got CCC certificate and CE certificate



    Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation



    Single Inlet Centrifugal Fans Details

    1. Material: Scroll Housing and impeller make of galvanised sheet steel
    2. Option: Also available with discharge flange
    3. Technical Features: Control input 0-10V/PWM, tach output
    4. Type of protection: IP44
    5. Insulation Class:B
    6. Bearing: Ball bearing
    7. Mode of operation: Continuous operation(S1)
    8. Operation Temperature:-25℃~+60℃
    9. Weight:4.4kg

    Single Inlet Centrifugal Fans Parameters



    Name: EC Single Inlet Centrifugal Fans Type: LE140N-48D3-00
    Application: Air Conditioning Operation Volrage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.0A
    Power: 142W Rated Speed: 2100RPM
    Air Flow 1: 620m³/h Air Flow 2: 369CFM
    Air Pressure: 81.2mmH2O Noise Level: 69dba



    Why choose us?



    1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
    2. We are sole International sales of the factory, we can help to control and protect the market of clients.
    3. We integrates different kinds of products for air management.
    4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
    5. We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.

    FAQ



    Are you a factory or trading company?

    We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM

    How do I know which model I should choose

    Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

    Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.

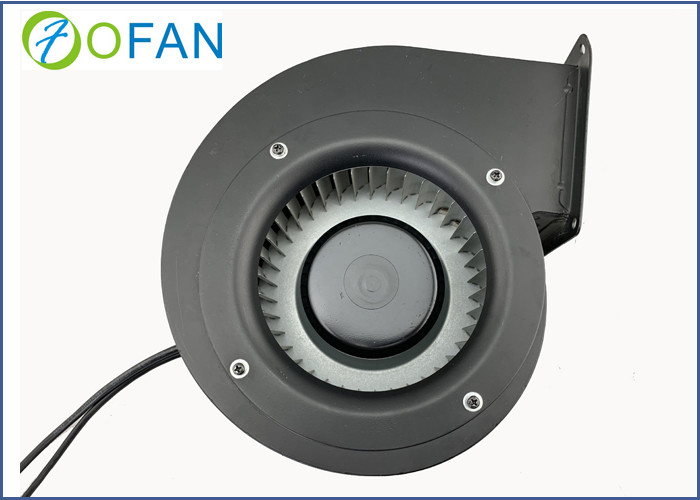

    Single Inlet Centrifugal Fans Pictures



    EC Single Inlet Centrifugal Fans For Air Conditioning Continuous Operation
