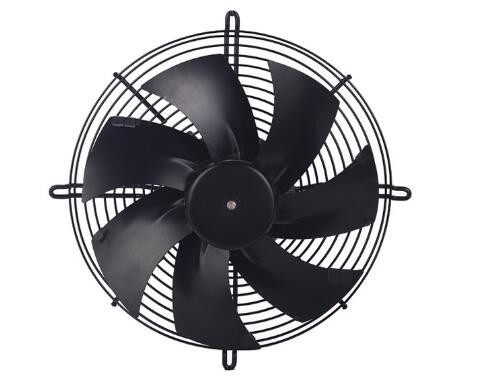

High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless

High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless

    • High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless
    • High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless
  • High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZW300C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Power: 95W Rated Speed: 1770RPM
    Air Flow: 2200m³/h Rated Current: 0.7A
    Rated Voltage: 230VAC Operation Voltage: 176-264VAC

    Sheet Steel Blower Fan With Refirgeration For Zw300c-230d3-00



    Specifications:

    Model Number:ZW300C-230D3-00

    Rated Voltage:230V

    Rated Speed:1770RPM

    Power:95w

    Rated Current:0.7A

    Air Flow: 340m³/h

    S Series

    Material:Sheet steel

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK



    1. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and             easy to abstract heat., thus ensure to maximum the reliability of fan operation,

    2. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the       environment, enable the direct, simple communication between the host controller and the system,

    3. Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or                  external circuit impulse modulation

    4. Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via 180,sine                       SVPWM(Space Vector PWM)to meet customer needs

    5. Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as      many as 255 fans

    6. EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage,             locked-rotor, over current and temperature protection



    High Efficiency Steel EC 300mm Axial Fan Blower For Houses And Buildings Ventilation System with mesh stepless
