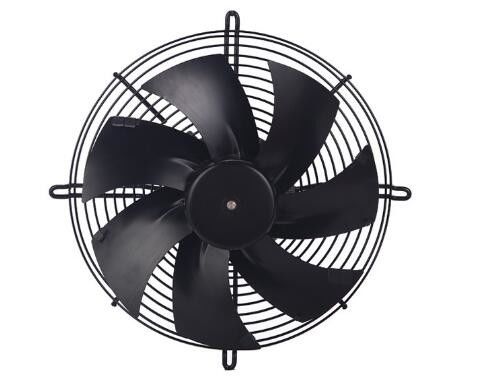

Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor

Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor

    • Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor
    • Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor
  • Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZW400C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Power: 382W Rated Speed: 1700RPM
    Air Flow: 5250m³/h Rated Current: 1.68A
    Rated Voltage: 230VAC Operation Voltage: 176-264VAC

    Air-Conditioning Fans Ec Fan With For Zw400c-230d3-00 For Durable



    Model Number:ZW400C-230D3-00

    Rated Voltage:230V

    Rated Speed:1600RPM

    Power:315w

    Rated Current:1.38a

    Air Flow: 4600m³/h

    S Series

    Material:Sheet steel

    Type of protection: IP54

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK





    A. Motor speed is not affected by power frequency
    B. Speed range is big
    C. the motor is stepless speed
    D. starting moment is big
    E. motor high efficiency range is big
    F. the volume is very compact.
    G. motor efficiency is high(>80%)



    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer.

    2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    Explosion Proof EC Tube Axial Exhaust Fan With Brushless DC External Rotor Motor
