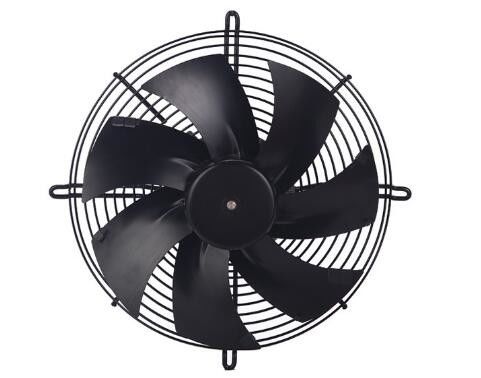

Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling

Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling

    • Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling
    • Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling
  • Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZW450C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Power: 340W Rated Speed: 1350RPM
    Air Flow: 5350m³/h Rated Current: 1.38A
    Rated Voltage: 230VAC Operation Voltage: 176-264VAC

    Eqjipment Cooling Industrial Fan With Zw450c-230d3-00 For Electric Power





    Model Number:ZW450C-230D3-00

    Rated Voltage:230V

    Rated Speed:1450RPM

    Power:290w

    Rated Current:1.35A

    Air Flow: 5250m³/h

    S Series

    Material:Sheet steel

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK



    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation            circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the            AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and                   application of the overall power system in customer.



    2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which            enforces the winding current commutation through electronic commutator (position sensing, non-                 position sensing),achieve the speed control function with PAM or PWM control



    3. Enable the selection of different power levels thus to get the best match of price and performance             according to customers’load requirements



    4. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and            easy to abstract heat., thus ensure to maximum the reliability of fan operation,



    5. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the       environment, enable the direct, simple communication between the host controller and the system,



    6. Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or                  external circuit impulse modulation



    Electric Power EC AC Compact Axial Fan For Industrial Equipment Cooling
