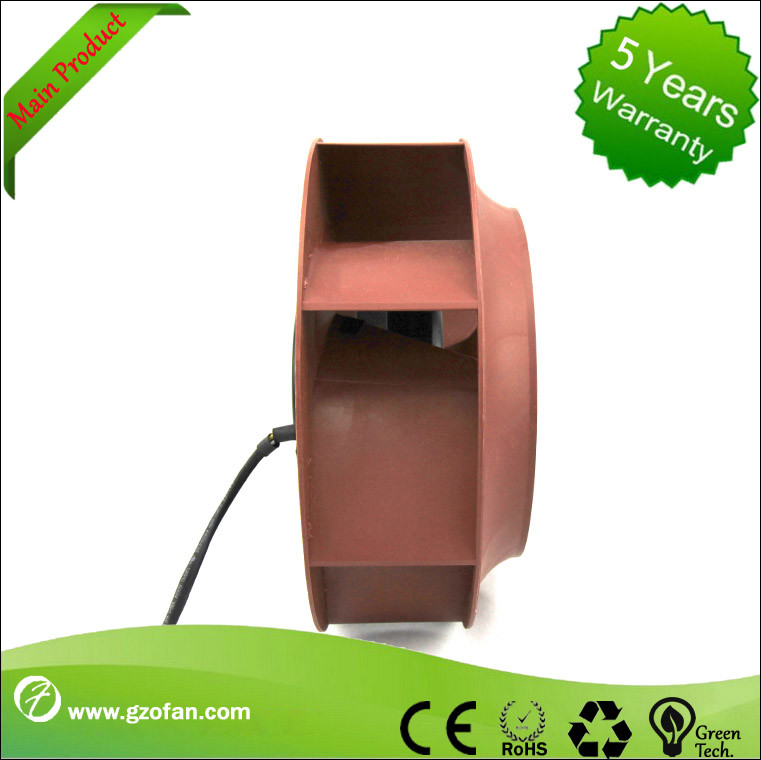

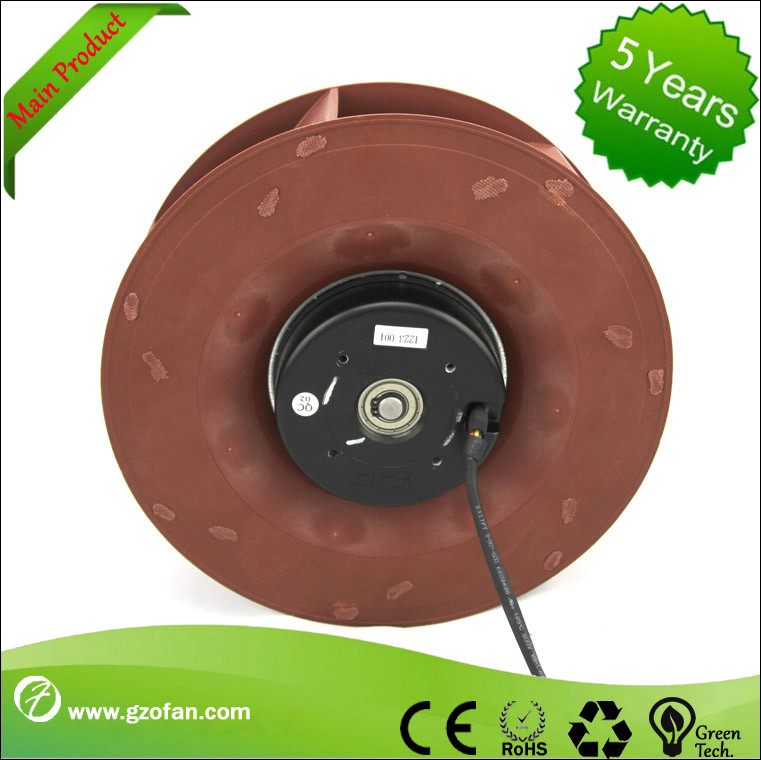

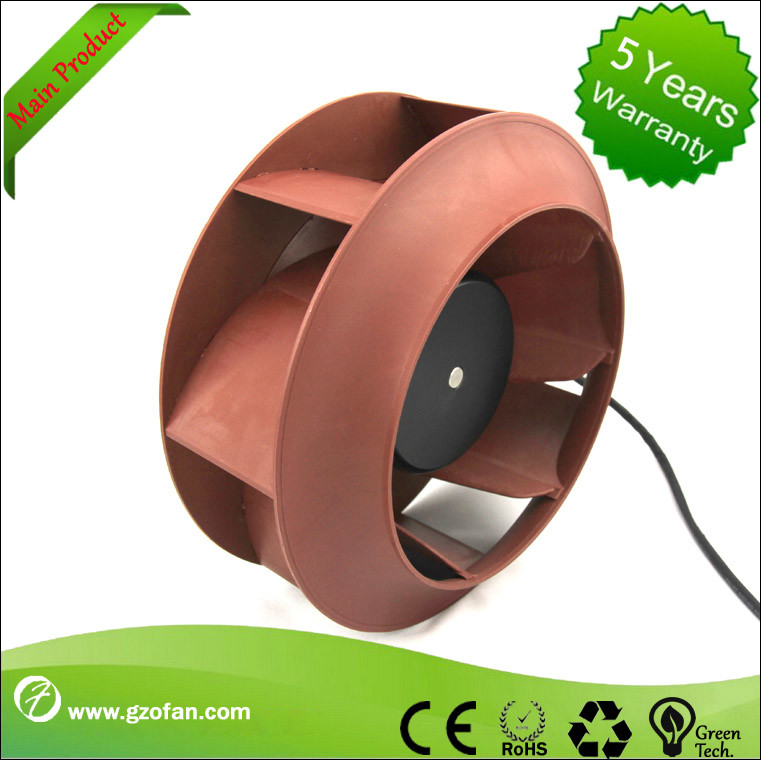

Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material

Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material

    • Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material
    • Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material
    • Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material
  • Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD133N-24D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: Brushless Dc Fan Rated Voltage: 24v
    Rated Current: 0.8A Rated Speed: 4000RPM
    Power Iput: 38.4W Air Flow: 360m³/h

    Reduce The Emission Of Co2 Dc Centrifugal Blwoer Fan Ld133n-24d3-01





    1. Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only     improved the technology of motor but also greatly enhance mechanical reliability of motor operation and        increase the service life

    2. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation                currents; realizing the small loss an high efficiency characteristics





    Specifications:

    Model Number:LD133N-24D3-01

    Rated Voltage:24V

    Rated Speed:4000RPM

    Power:38.4w

    Rated Current:0.8A

    Air Flow: 360m³/h



    Material:PA66

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK

    Backward Inclined Industrial Blower Fans / DC Centrifugal Blower PA66 Material
