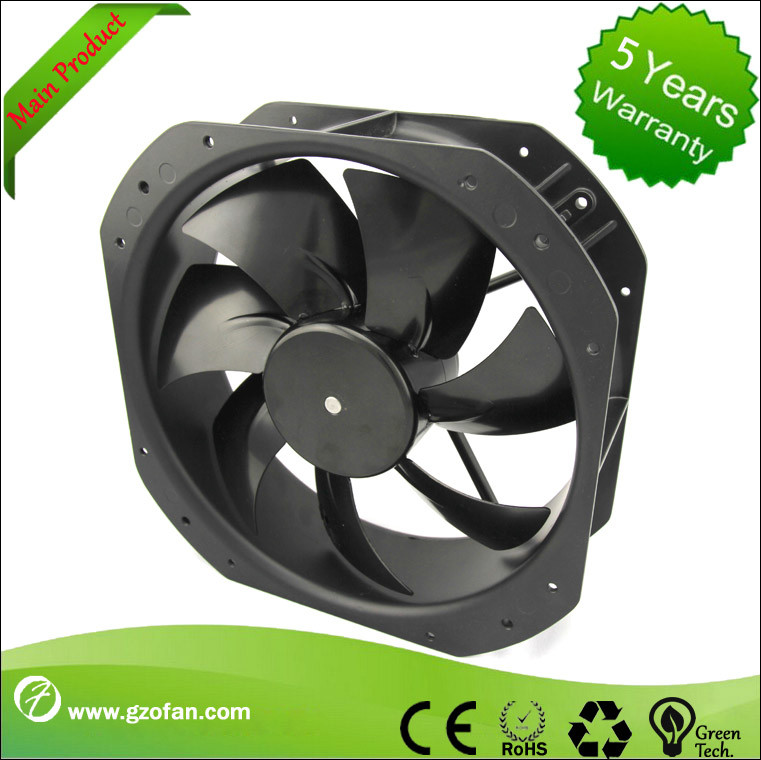

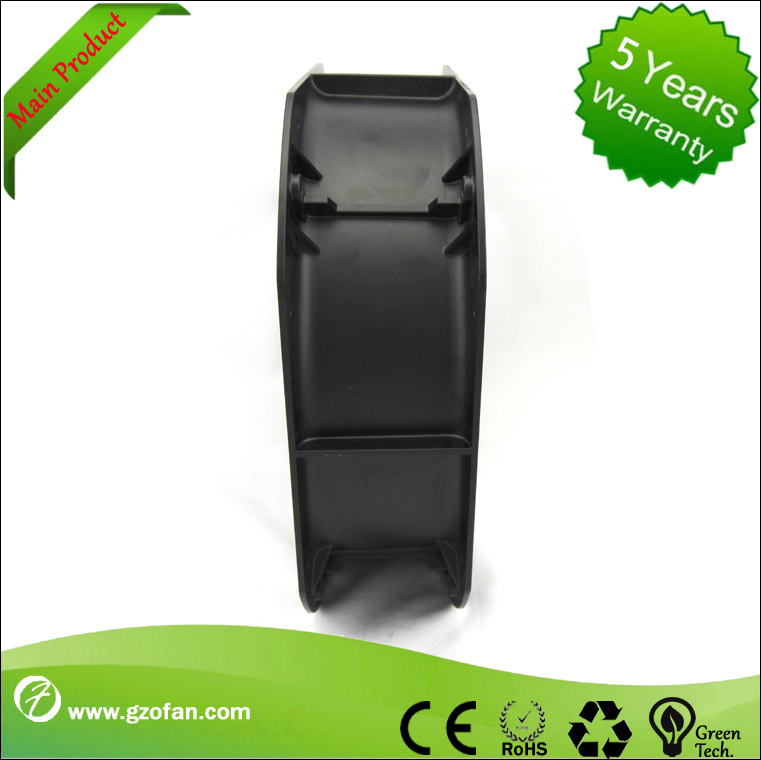

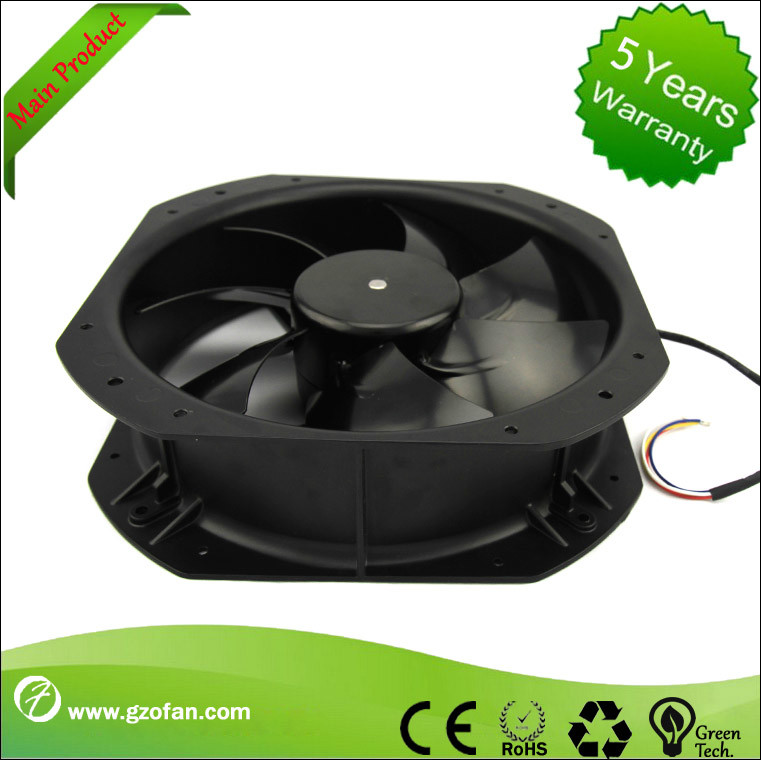

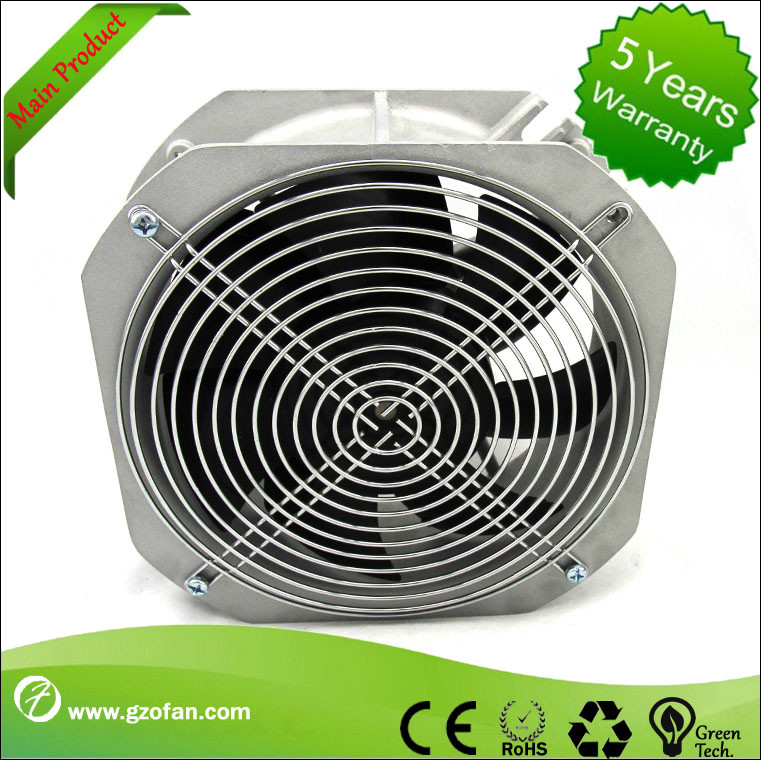

Replace Ebm-past 24V DC Axial Fan With External Rotor Motor 254*89

Replace Ebm-past 24V DC Axial Fan With External Rotor Motor 254*89

    • Replace Ebm-past 24V DC Axial Fan  With External Rotor Motor 254*89
    • Replace Ebm-past 24V DC Axial Fan  With External Rotor Motor 254*89
    • Replace Ebm-past 24V DC Axial Fan  With External Rotor Motor 254*89
    • Replace Ebm-past 24V DC Axial Fan  With External Rotor Motor 254*89
  • Replace Ebm-past 24V DC Axial Fan  With External Rotor Motor 254*89

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZX254N-24D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: 30*30*15
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: ZX254N-24D3-01 Rated Voltage: 24 VDC
    Rated Current: 2A Power: 48W
    Rated Speed: 1700RPM Air Flow: 1188m³/h

    Replace Ebm-past 24V DC Axial Fan With External Rotor Motor 254*89



    Type Rated Voltage Rated Current Power Rated Speed Air Flow

    Sound pressure

    (dB)

    Prem.amb.temp
    ZX254N-24D3-01 24VDC 2A 48W 1700RPM 1188m³/h 52dB -20~+60



    Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    Enable the selection of different power levels thus to get the best match of price and performance according to customers’load requirements



    As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation



    Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system



    Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or external circuit impulse modulation



    if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
    If after one year, we will supply you the right parts to replace at low price.



    What about delivery date?

    Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
