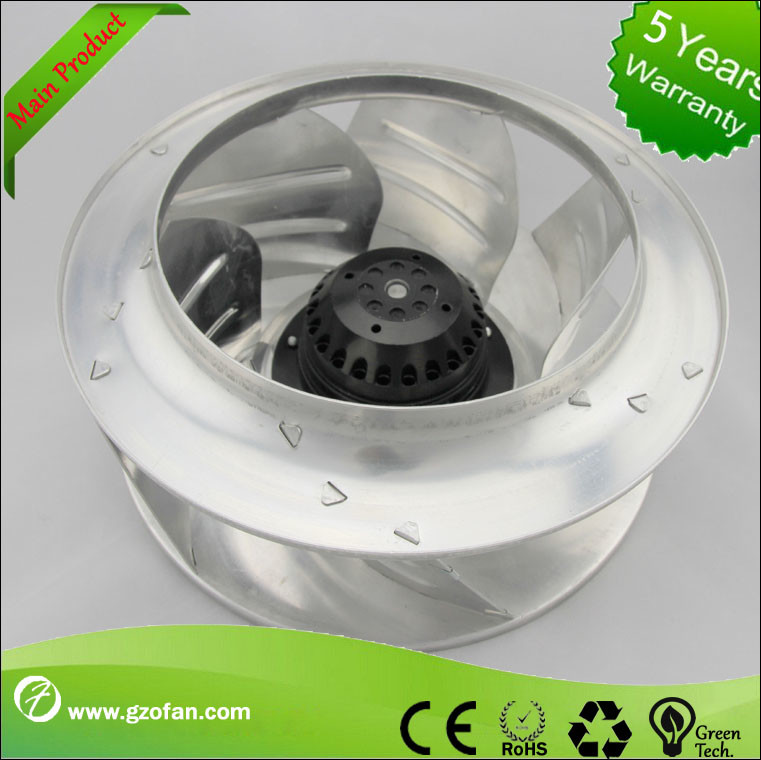

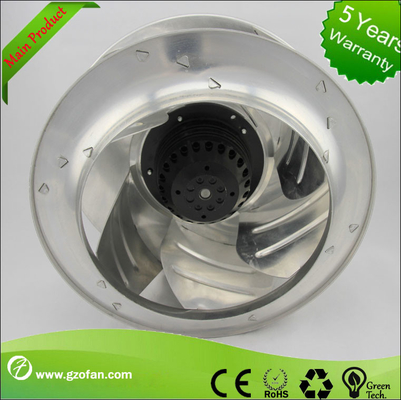

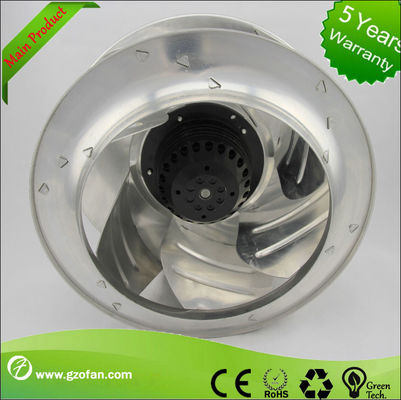

Airflow Backward Curved AC Centrifugal Fan For Air Conditioning 220V

Airflow Backward Curved AC Centrifugal Fan For Air Conditioning 220V

    • Airflow Backward Curved AC Centrifugal Fan For Air Conditioning 220V
    • Airflow Backward Curved AC Centrifugal Fan For Air Conditioning 220V
  • Airflow Backward Curved AC Centrifugal Fan For Air Conditioning 220V

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: KC35-4M-310B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Detailed Product Description
    Type: KC35-4M-310B Rated Voltage: 380V
    Rated Current: 0.36A Rated Speed: 1400RPM
    Power Iput: 116W Air Flow: 2100m³/h
    Freqyebct: 50HZ

    Ffu Inline Exhaust Fans With Kc35-4m-310b For National Standard 3 C Wire





    Specifications:

    Model Number:KC35-4M-310B

    Rated Voltage:220V

    Rated Speed:1380RPM

    Power:115w

    Rated Current:0.58A

    Air Flow:2000m³/h



    Material:Gakvabused sheet steel

    Type of protection: IP44

    Approvals: CCC CE

    Insulation class:B

    Ball bearing:NSK





    AC single-phase 230+-10% Vor three –phase 400+-10%v are alternative for voltage, and 50HZ or 60HZ for frequency

    Extensive application---can be widely used in refrigeration and ventilation fields such as duct fans and roofing fans

    The safety grade of this series is IP54,and the insulation classes are available among B,F and H,

    The average longevity of service is over 24,000 hours

    The products have got the CCC certificate in China and CE approval in Europe





    Ventilation system in houses and buildings

    Air-conditioning system in busses and yachts

    FFU(Fan Filter Unit)and clean room system

    Electronic oven, burner, constant temperature cabinet, medical instrument, sterilizer and desiccator

    Various air curtains





    1. if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
    If after one year, we will supply you the right parts to replace at low price.

    2. What about delivery date?

    Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
