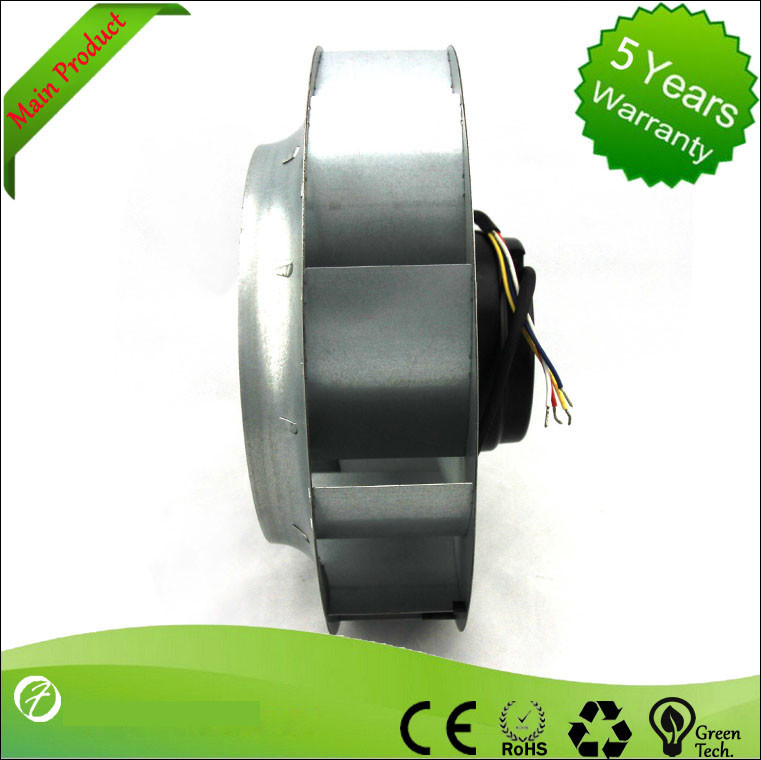

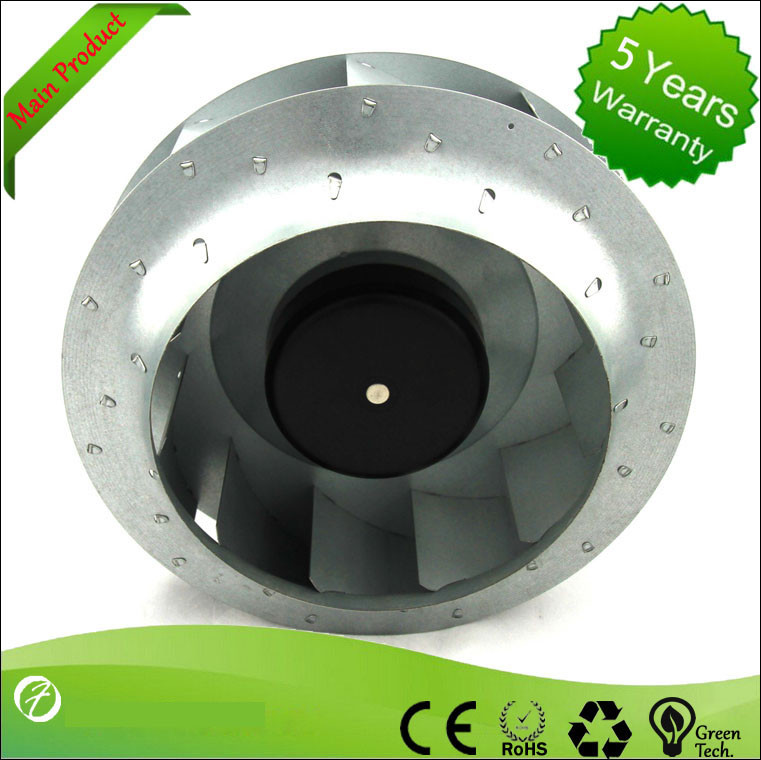

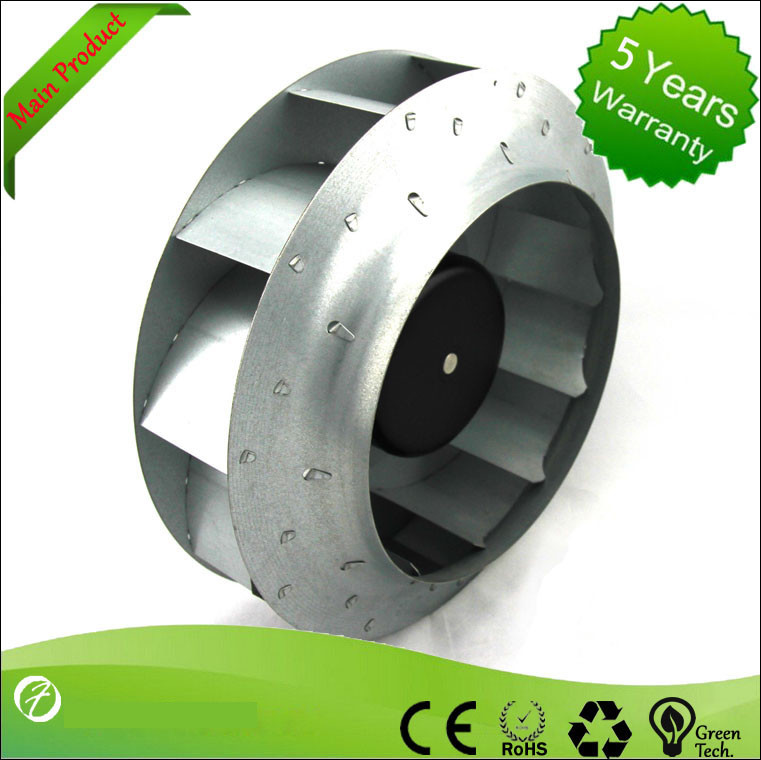

Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W

Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W

    • Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
    • Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
    • Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W
  • Gakvabused Sheet Steel EC Centrifugal Fans With Air Purification 64W

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD250C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power Input: 64W Air Flow: 950m³/h
    Rated Speed: 1955RPM Nominal Voltage: 220V
    Current Drwa: 0.48A Frequency: 50/60HZ

    Gakvabused Sheet Steel Ec Centrifugal Fans With Air Purification



    Features



    · EC motor features reverse polarity protection, locked rotor protection and soft start.

    · No additional protection such as contactors are required.

    · Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.

    · A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.





    Type

    Nominal voltage

    (VAC)

    Frequency

       (HZ)

    Speed

    Power imput

    (w)

    Current draw

    (A)

    Sound pressure

    (dB)

    Perm.amb.temp



    LD250C-230D3-00 220    50/60 1955 64 0.48 65 -25~+60





    Air-conditioning system in busses and yachts

    FFU(Fan Filter Unit)and clean room system

    Electronic oven, burner, constant temperature cabinet, medical instrument, sterilizer and desiccator



    1. Sensorless permanent magnet motor drive

    2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

    3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

    4. Soft start, adjustable acceleration, CVT

    5. Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

    6. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

    7. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma



    FAQ:

    1. Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.

    2. if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
    If after one year, we will supply you the right parts to replace at low price
