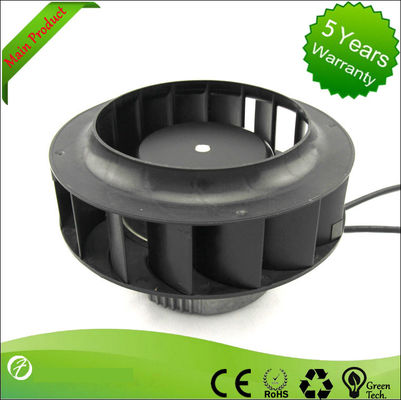

80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan

80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan

    • 80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan
    • 80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan
    • 80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan
    • 80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan
  • 80W EC Centrifugal Fans With Ventilating Units , 225mm Exhaust Blower Fan

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD225C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 15 word days
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power Input: 80W Air Flow: 1050m³/h
    Rated Speed: 2500RPM Nominal Voltage: 220V
    Current Drwa: 0.6A Frequency: 50/60HZ

    Ec Centrifugal Fans With Ventilating Units Pa66 Fresh Air System 225mm





    If two motors are producing the same output but one has a greater power input then you can be sure that the surplus energy is being dissipated as heat. If an application is designed to remove heat then it will have to do extra work just to remove the heat produced by the fan motor itself, so EC fans will improve the efficiency of the whole system







    Type

    Nominal voltage

    (VAC)

    Frequency

       (HZ)

    Speed

    (RPM)

    Power imput

    (w)

    Current draw

    (A)

    Sound pressure

    (dB)

    Perm.amb.temp



    LD225C-230D3-00 220    50/60 2500 80 0.6 68 -25~+60







    Features

    · EC motor features reverse polarity protection, locked rotor protection and soft start.



    · No additional protection such as contactors are required.



    · Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.



    · A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant.



    · Can be run as an independent ventilation source or integrated into most building management systems.



    Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via180,sineSVPWM(Space Vector PWM)to meet customer needs

    Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as many as 255 fans



    EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage, locked-rotor, over current and temperature protection





    1. Are you a factory or trading company?

    We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM



    2. How do I know which model I should choose

    Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
