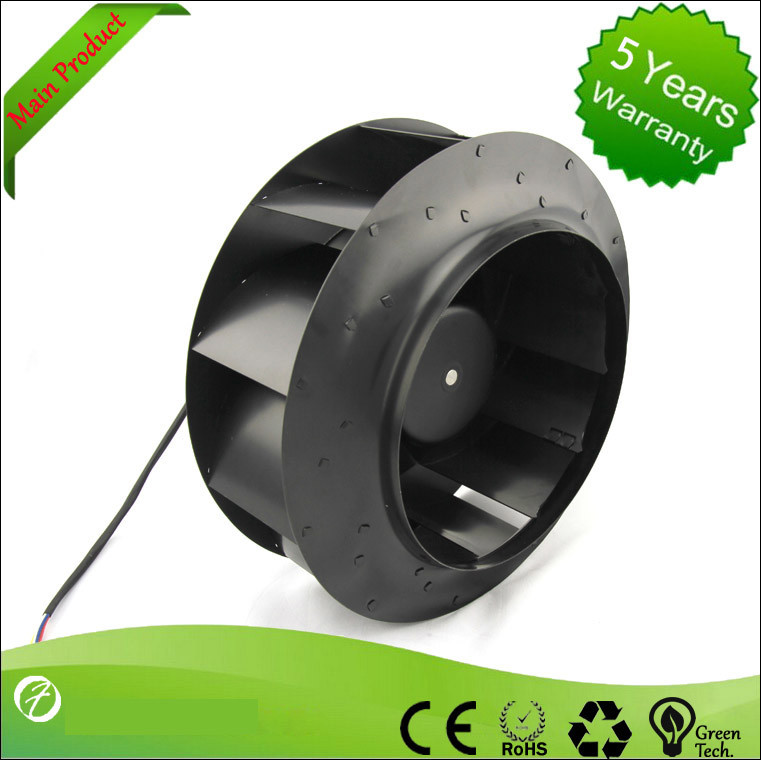

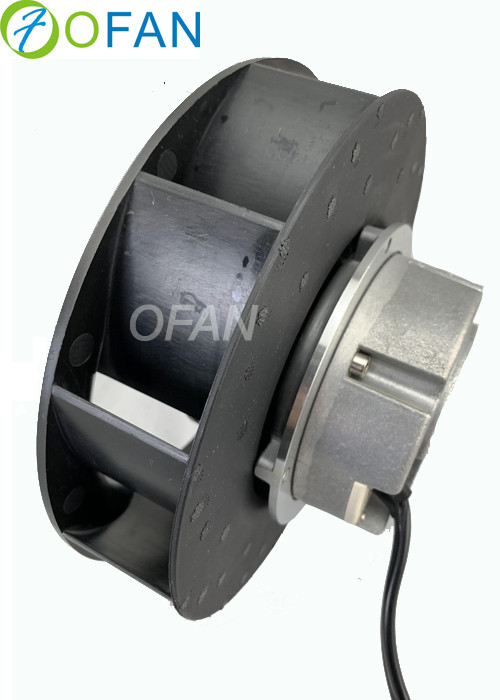

50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification 3300RPM

50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification 3300RPM

    • 50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM
    • 50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM
    • 50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM
    • 50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM
  • 50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD225C-230D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Payment Terms: D/A, D/P, T/T, L/C
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power Input: 130W Air Flow: 1200m³/h
    Rated Speed: 3300RPM Nominal Voltage: 220V
    Current Drwa: 0.87A Frequency: 50/60HZ

    50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification 3300RPM





    Constant pressure : Used in conjunction with a pressure sensor, the fan maintains the same pressure at varying airflow (ideal for ducted applications). Operates with forward curved centrifugal fans without pressure sensor and with backward curved motorised impellers with pressure sensor (Available on Ecofit fans).





    Type

    Nominal voltage

    (VAC)

    Frequency

       (HZ)

    Speed

    (RPM)

    Power imput

    (w)

    Current draw

    (A)

    Sound pressure

    (dB)

    Perm.amb.temp



    LD225C-230D3-01 220    50/60 3300 130 0.87 68 -25~+60





    Energy savings with EC fans
    Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.



    AC fan 2800hrs @ 4 x 1.41kW = 5.64kW 15,792 kWh
    5600hrs @ 4 x 0.62kW = 2.48kW 13,888 kWh
    Total A 29,680 kWh
    EC fan 2800 hrs @ 4 x 1.04kW = 4.16kW 11,648 kWh
    5600 hrs @ 4 x 0.27kW = 1.08kW 6,048 kWh
    Total B 17,696 kWh
    A minus B 11,984kWh saved with the EC fan



    Warranty: 1 year warranty for all products.



    Private Labelling: All of axial fans are able to be Private labeled.





    50 / 60HZ EC Centrifugal Fans 225mm And Blowers With Air Purification  3300RPM
