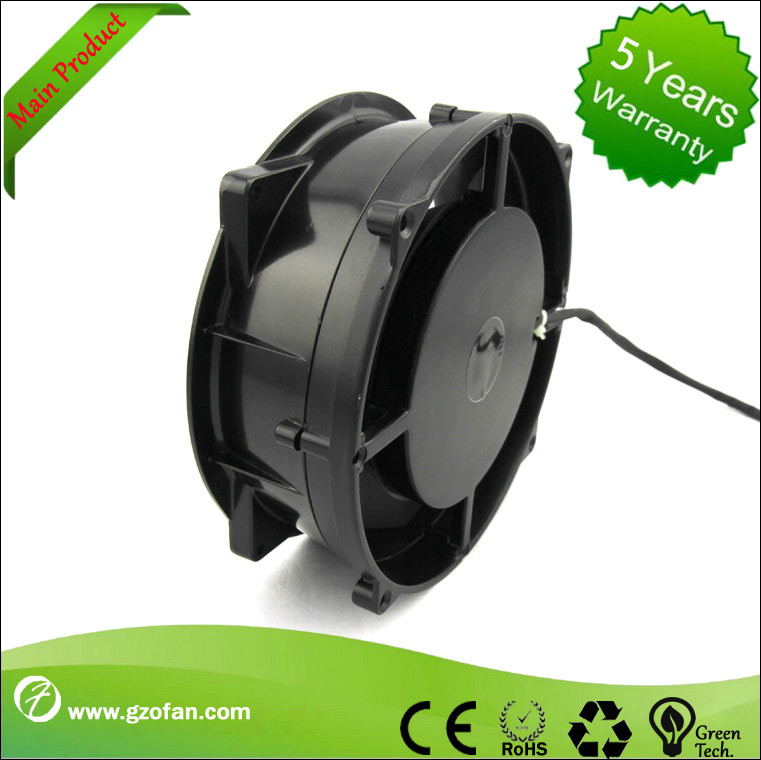

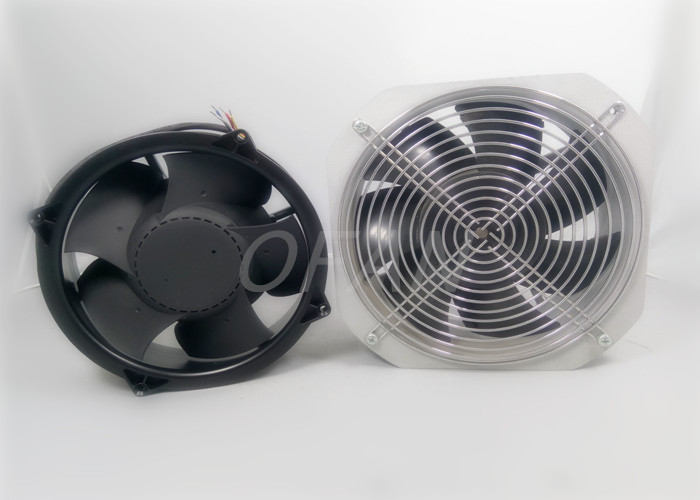

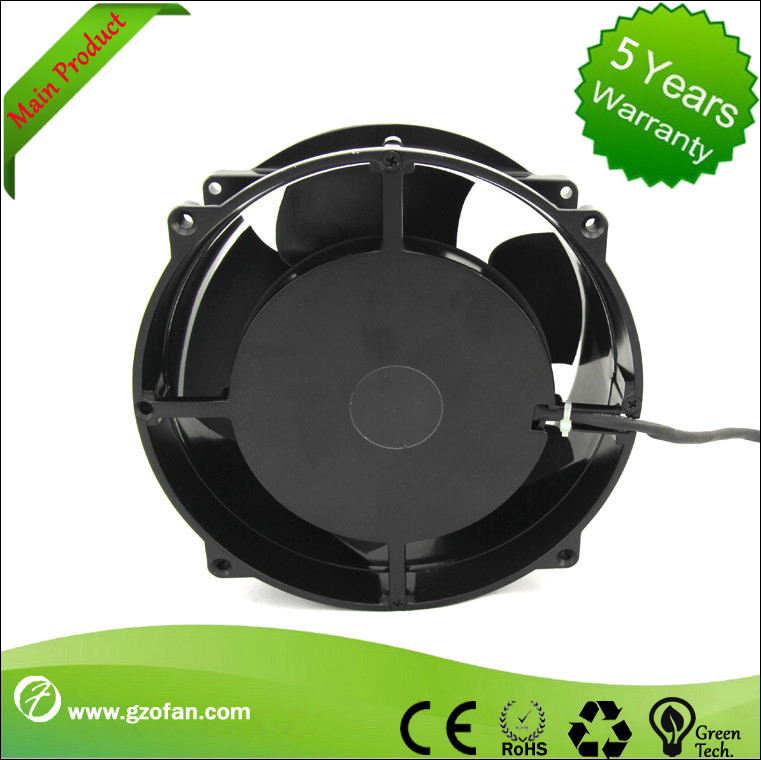

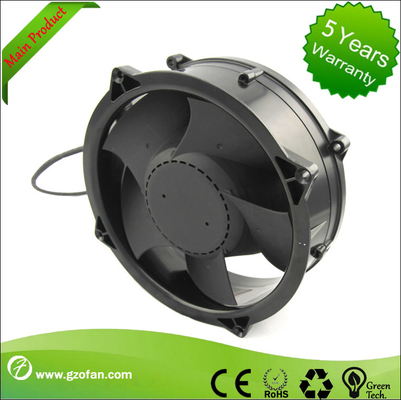

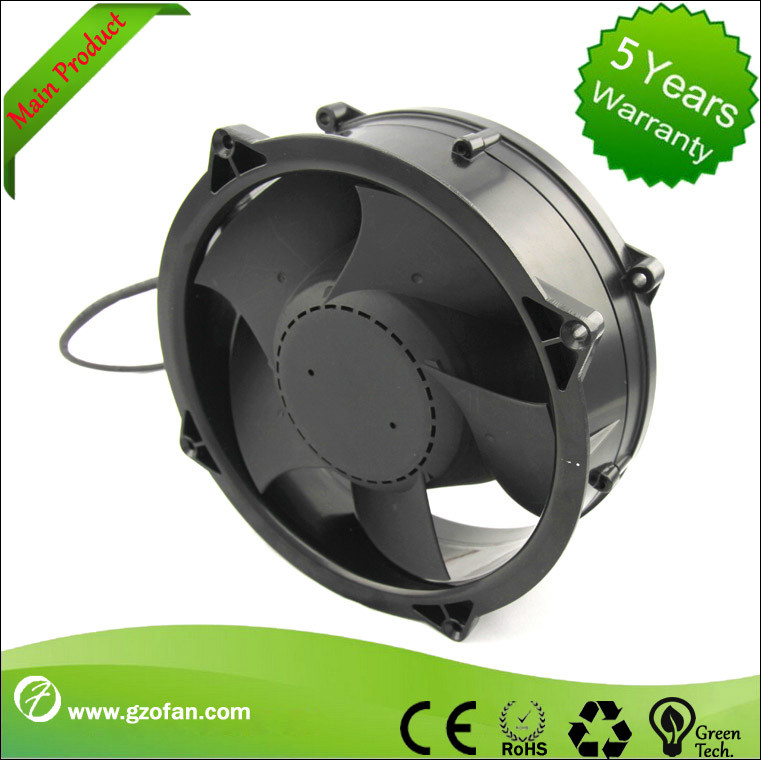

Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan

Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan

    • Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan
    • Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan
    • Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan
    • Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan
  • Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: ZX180N-24D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: 45*45*10
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: ZX180N-24D3-00 Industrial Axial Fans Rated Voltage: 24VDC
    Rated Current: 4.5A Power: 108W
    Rated Speed: 4600RPM Air Flow: 933m³/h

    200*70mm 24v 8 inch Dc Axial Fan Large Air Volume Round Exhaust Fan





    Type ZX180N-24D3-00 Industrial Axial Fans
    Rated Voltage 24VDC
    Rated Current 4.5A
    Power 108W
    Rated Speed 4600RPM
    Air Flow 933m³/h





    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer.



    2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



    3. Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and increase the service life



    4. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics



    5. Compared with the frequency control of induction motor, brushless dc ,motor is simpler and more controllable, easy to perform contro

                                                                                                                                                                                                                 FAQ:



    1. Can we buy a sample for testing?

    Sure, you are welcomed to buy a sample before mass order.



    2. if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.



    Large Round Industrial Axial Fans / Integrated Design Axial Flow Exhaust Fan
