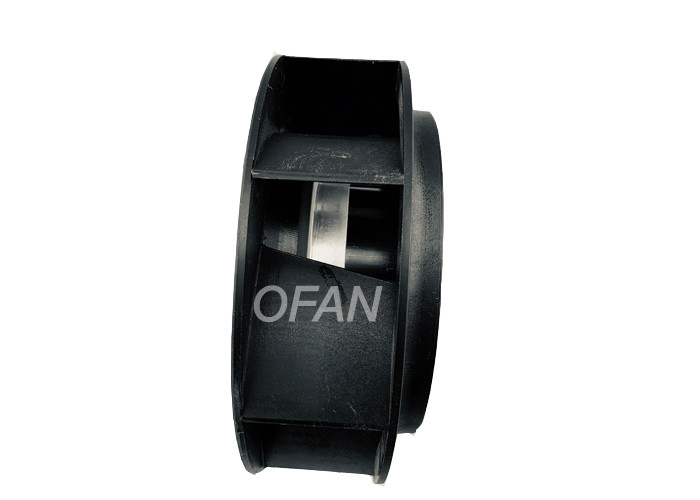

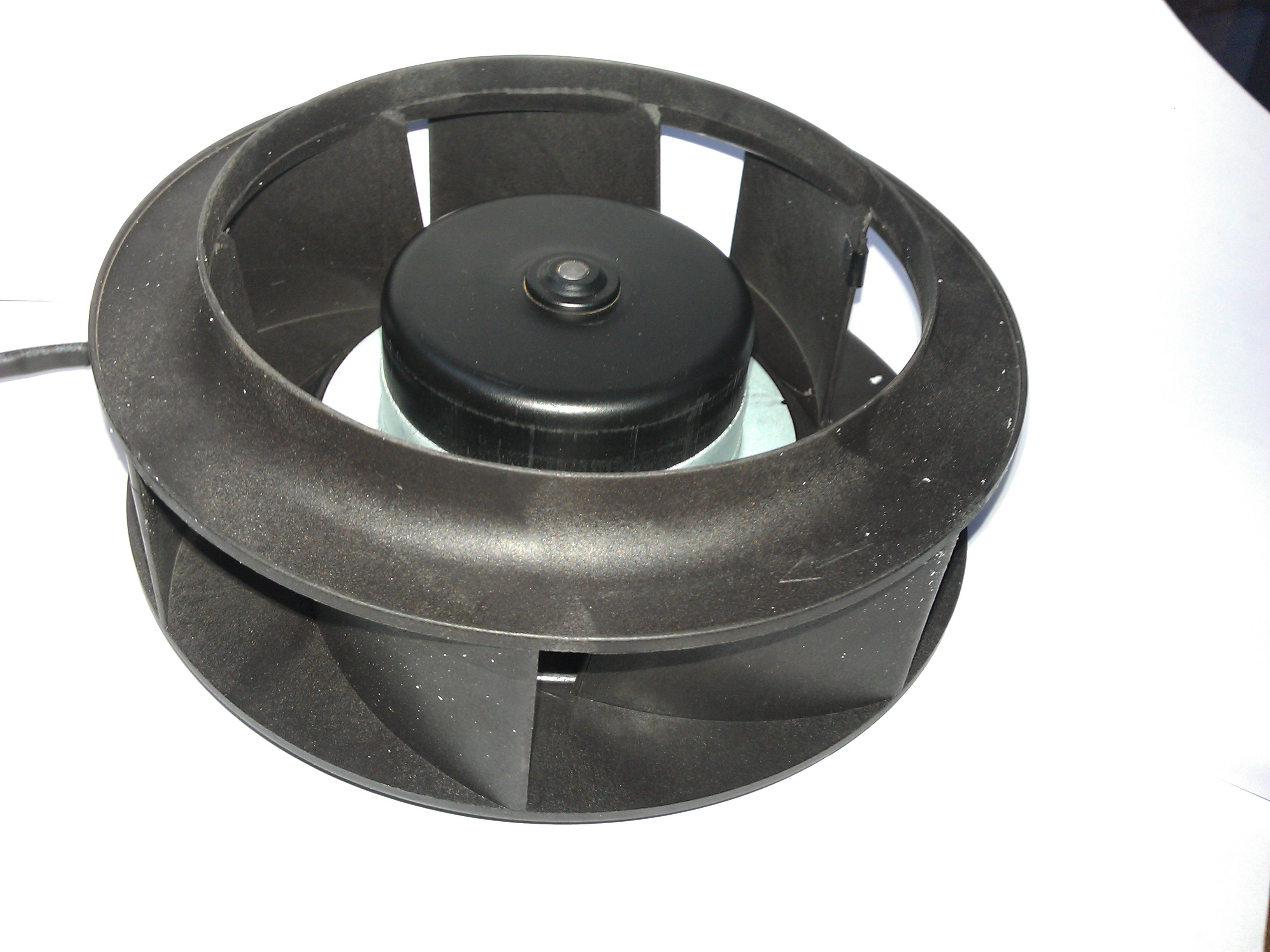

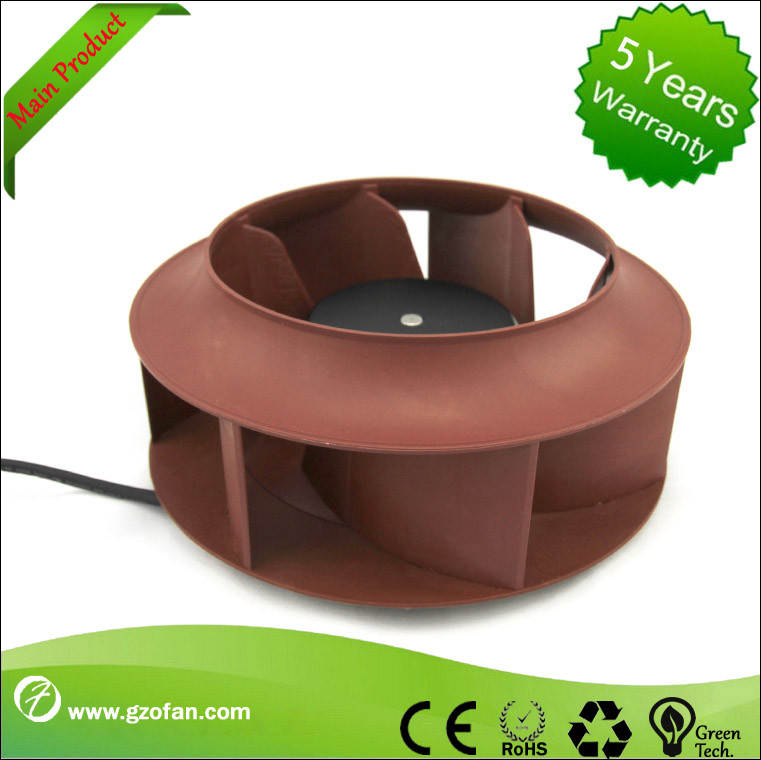

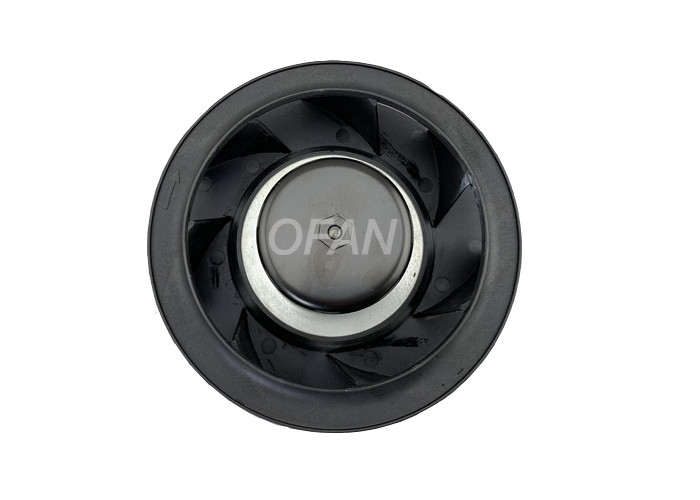

Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation

Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation

    • Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation
    • Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation
    • Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation
    • Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation
  • Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation

    Product Details:

    Place of Origin: China
    Brand Name: OFAN DC Centrifugal Fan
    Certification: CE ROHS CCC
    Model Number: LD133N-24D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: 45*45*10
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD133N-24D3-00 Industrial Centrifugal Extractor Fan Rated Voltage: 24VDC
    Rated Current: 1.6A Power: 38.4W
    Rated Speed: 4000RPM Air Flow: 360m³/h

    Similar Ebm-past Centrifugal Backward Curved Fan With Floor Ventilation



    Type Rated Voltage Rated Current Power Rated Speed Air Flow

    Sound pressure

    (dB)

    Prem.amb.temp
    LD133N-24D3-00 24VDC 1.6A 38.4W 4000RPM 360m³/h 52db

    -20~+60





    Centrifugal fans with backward curved blades  are used primarily for intake suction and do not  require a scroll housing.



    They have high  hydraulic efficiency



    Compared with the frequency control of induction motor, brushless dc ,motor is simpler and more controllable, easy to perform control



    The components, such ac inverters etc, whose capacity is low, and circuit are simpler, the cost lower than ec blower’s



     As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation



    Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system



    Can be pre-configured to suit specific sensors and applications, and are supplied standard with 0-10V control input.



    A full range of sensors are available including differential pressure, humidity, temperature, air velocity and pollutant
