High Volume EC Centrifugal Fans Blower Single Inlet High Static Pressure

Place of Origin china
Brand Name OFAN
Certification ce ccc
Model Number LD133C-230D3-00
Minimum Order Quantity 1
Price USD1-100 PCS
Packaging Details 45*45*24
Delivery Time 5-8 work days
Payment Terms D/P, D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000PCS15days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name EC Centrifugal Fans Model LD133C-230D3-00
Feature High Volume Inlet Single Inlet
Advantage High Static Pressure Rated Current 0.45A
Power 53W Rated Speed 4500RPM
Air Flow 1 330m³/h Air Flow 2 195CFM
Air Pressure 45mmH2O Noise Level 65dba
High Light

industrial centrifugal blower

,

centrifugal fans and blowers

Leave a Message
Product Description

High Volume EC Centrifugal Fans Blower Single Inlet High Static Pressure



EC Centrifugal Fans basic functions and performances



1. Sensorless permanent magnet motor drive

2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

4. Soft start, adjustable acceleration, CVT

5. Design operating temperature range: -30~60 degrees of minimum selection(The device in accordance with -40~85 degrees)

6. Protection: over voltage, over temperature, over current, phase loss detection, communication failures.

7. The basic interface: 0-10V/PWM, RS485/Modbus, 4-20Ma



EC Centrifugal Fans Details

  1. Type of protection: IP44
  2. Insulation: Class B
  3. Bearing: Ball bearing
  4. Direction of rotation: Anticlockwise, see on the leads
  5. Mode of operation: Continuous operation(S1)
  6. Operation Temperature:-25℃~+60℃

EC Centrifugal Fans Parameters



Name: EC Centrifugal Fans Model: LD133C-230D3-00
Feature: High Volume Inlet: Single Inlet
Advantage: High Static Pressure Rated Current: 0.45A
Power: 53W Rated Speed: 4500RPM
Air Flow 1: 330m³/h Air Flow 2: 195CFM
Air Pressure: 45mmH2O Noise Level: 65dba



Our Advantage:



1. Low MOQ

2. Guaratee for motor

3. Excellent quality

4. Certification: CCC, CE, RoHS

5. We can develop new models based on your budget and specifcation

6. Powerful design according to customer's idea

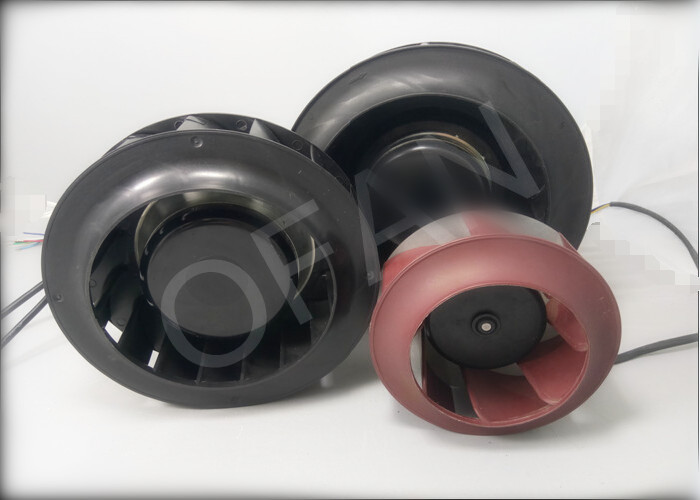

Backward Curved Impellers Pictures



High Volume EC Centrifugal Fans Blower Single Inlet High Static Pressure 0
