Fireplace Centrifugal Backward Curved Fan , EC Motor Centrifugal Roof Fans

Place of Origin china
Brand Name OFAN
Certification ce ccc
Model Number LD133C-230D3-00
Minimum Order Quantity 1
Price USD1-100 PCS
Packaging Details 45*45*24
Delivery Time 5-8 work days
Payment Terms D/P, D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000PCS15days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Centrifugal Backward Curved Fan Model LD133C-230D3-00
Rated Voltage 230VAC Operatation Voltage 200-277VAC
Application Fireplace Motor EC Motor
Power 53W Rated Speed 4500RPM
Air Flow 1 330m³/h Air Flow 2 195CFM
Air Pressure 45mmH2O Other Name Centrifugal Roof Fans
High Light

industrial centrifugal blower

,

centrifugal fans and blowers

Leave a Message
Product Description

Fireplace Centrifugal Backward Curved Fan , EC Motor Centrifugal Roof Fans



EC is easy



Permanent magnet motors running on high voltage direct current (DC) electricity with built in AC to DC conversion allowing them to run direct from single phase or three phase mains supplies. There are several suppliers of such motors



Centrifugal Backward Curved Fan Typical applications



roof and building ventilation, cleanroom and other sensitive HEPA filtering application, laboratory and research facility ventilation, air conditioner, heat exchangers, in-line duct blowers, range hood, fire place inserts, humidifiers, dehumidifiers, hand dryer.



Centrifugal Backward Curved Fan Details

  1. Material: Plastic: PA6.6(glass-fibre reinforced)
  2. Injection-moulded round sheet-metal plate
  3. Type of protection: IP44
  4. Insulation: Class B
  5. Bearing: Ball bearing
  6. Operation Temperature:-25℃~+60℃



What is EC technology?



EC Technology stands for Electronically Commutated and combines AC and DC voltages, which is essentially a fan with a brushless DC motor, bringing the best of both technologies: the motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application, the power needed converting AC to DC, using a bulky, inefficient transformer. The EC motor incorporates voltage transformation within the motor. The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.



Centrifugal Backward Curved Fan Parameters



Name: Centrifugal Backward Curved Fan Model: LD133C-230D3-00
Rated Voltage: 230VAC Operatation Voltage: 200-277VAC
Application: Fireplace Motor: EC Motor
Power: 53W Rated Speed: 4500RPM
Air Flow 1: 330m³/h Air Flow 2: 195CFM
Air Pressure: 45mmH2O Other Name: Centrifugal Roof Fans



Our Services



1. Warranty: 1 year warranty for all products.

2. Private Labelling: All of axial fans are able to be Private labeled.

3. Products Quality: 100% products inspection before delivery.

4. Just in time delivery: Normally, Lead time is 30 days.

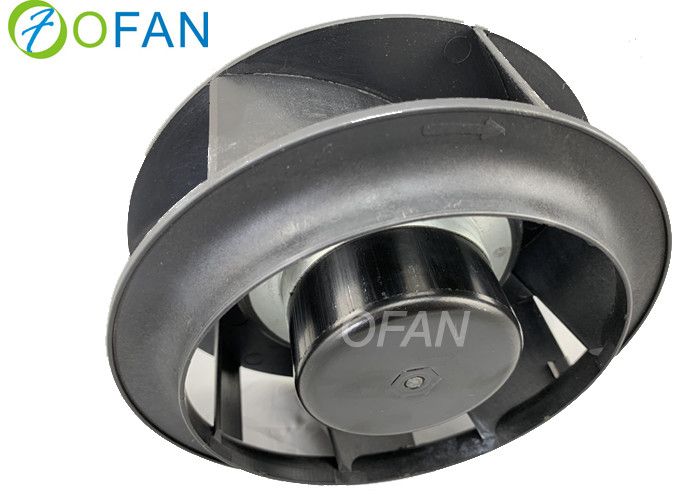

Centrifugal Backward Curved Fan Pictures



Fireplace Centrifugal Backward Curved Fan , EC Motor Centrifugal Roof Fans 0
