Home ProductsEC Centrifugal Fans

Backward Curved EC Centrifugal Fans Impellers Aluminum Sheet Material

Backward Curved EC Centrifugal Fans Impellers Aluminum Sheet Material

Backward Curved EC Centrifugal Fans Impellers Aluminum Sheet Material

Product Details:

Place of Origin: china
Brand Name: OFAN
Certification: ce ccc
Model Number: LD355C-230D3-00

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 45*45*24
Delivery Time: 5-8 work days
Payment Terms: D/P, D/A, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000PCS15days
Contact Now
Detailed Product Description
Name: EC Centrifugal Fans Model: LD355C-230D3-00
Rated Voltage: 230VAC Operatation Voltage: 176-264VAC
Frequency: 50/60HZ Rated Current: 1.5A
Power: 325W Rated Speed: 1920RPM
Air Flow 1: 3100m³/h Air Flow 2: 1850CFM
Air Pressure: 66mmH2O Noise Level: 75dba

Backward Curved EC Centrifugal Fans Impellers Aluminum Sheet Material



EC Centrifugal Fans Details

  1. Insulation Class:B
  2. Bearing: Ball bearing
  3. Mode of operation: Continuous operation(S1)
  4. Direction of rotation: Anticlockwise, see on the leads
  5. Operation Temperature:-20℃~+60℃
  6. Weight:5.7kg



What is EC technology?



EC Technology stands for Electronically Commutated and combines AC and DC voltages, which is essentially a fan with a brushless DC motor, bringing the best of both technologies: the motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application, the power needed converting AC to DC, using a bulky, inefficient transformer. The EC motor incorporates voltage transformation within the motor. The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.



EC Centrifugal Fans Parameters



Name: EC Backward Curved Impellers Model: LD355C-230D3-00
Rated Voltage: 230VAC Operatation Voltage: 176-264VAC
Frequency: 50/60HZ Rated Current: 1.5A
Power: 325W Rated Speed: 1920RPM
Air Flow 1: 3100m³/h Air Flow 2: 1850CFM
Air Pressure: 66mmH2O Noise Level: 75dba



Six reasons that make us the ideal partner:



1. Our systems expertise. As experts in advanced motor technology, electronics and aerodynamics, we provide system solutions from a single source.

2. Our spirit of invention. Our 60 engineers and technicians will develop a solution that precisely fits your needs.

3. Our lead in technology. Our OFAN EC technology is setting standards worldwide. And our lead is your competitive advantage.

4. Proximity to our customers. At 20 sales offices worldwide.

5. Our standard of quality. Our quality management is uncompromising, at every step in every process.

6. Our sustainable approach. We assume responsibility with our energy-saving products, environmentally-friendly processes, and social commitment.

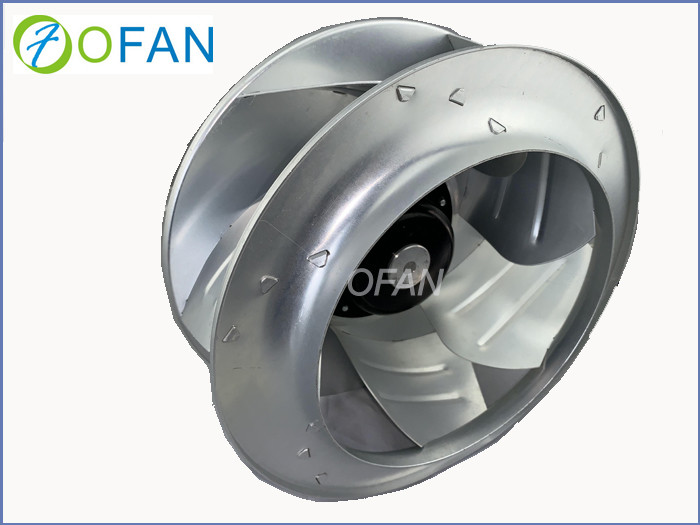

EC Centrifugal Fans Pictures



Backward Curved EC Centrifugal Fans Impellers Aluminum Sheet Material
