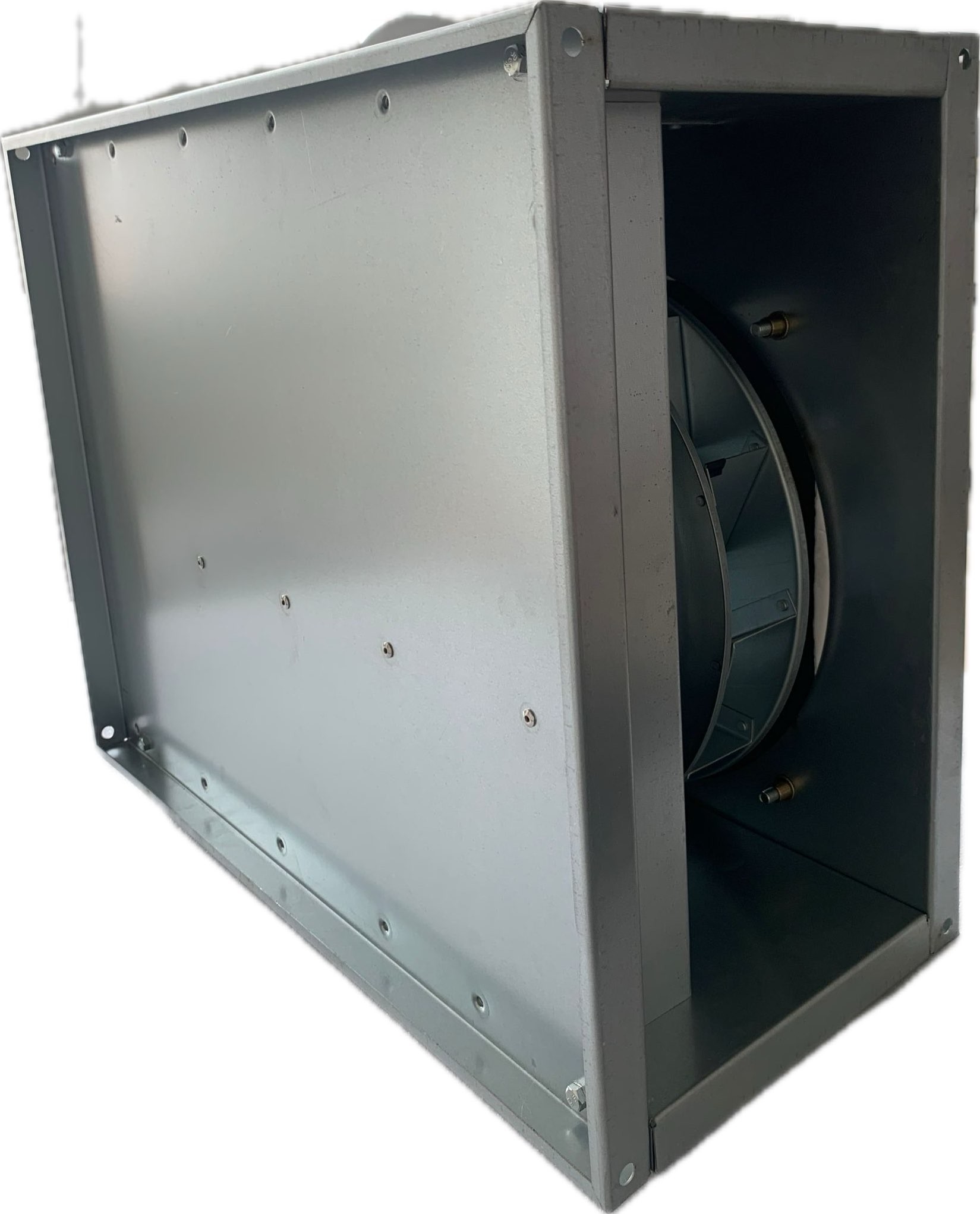

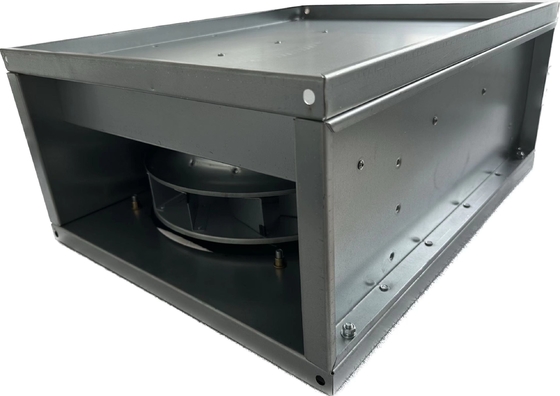

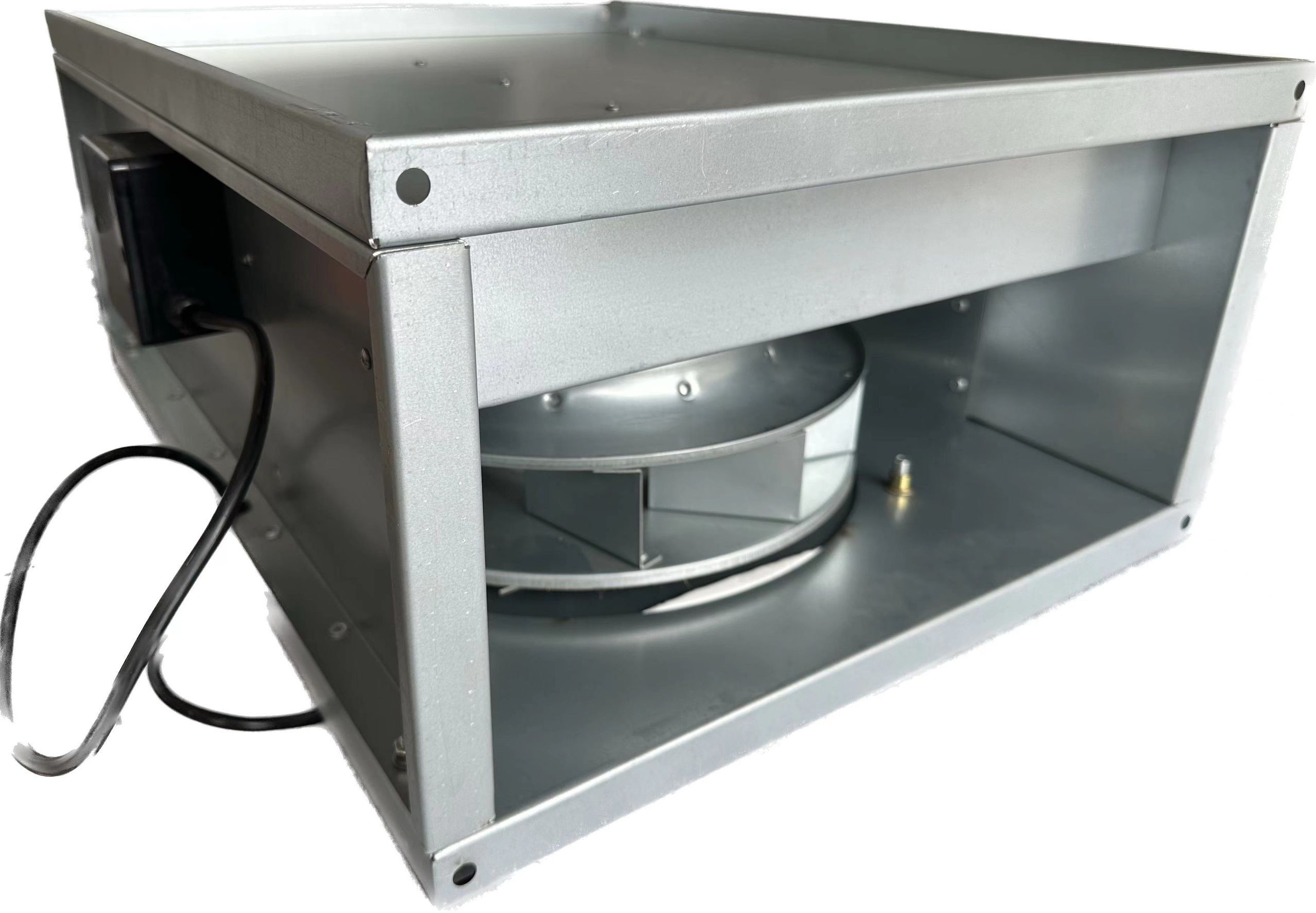

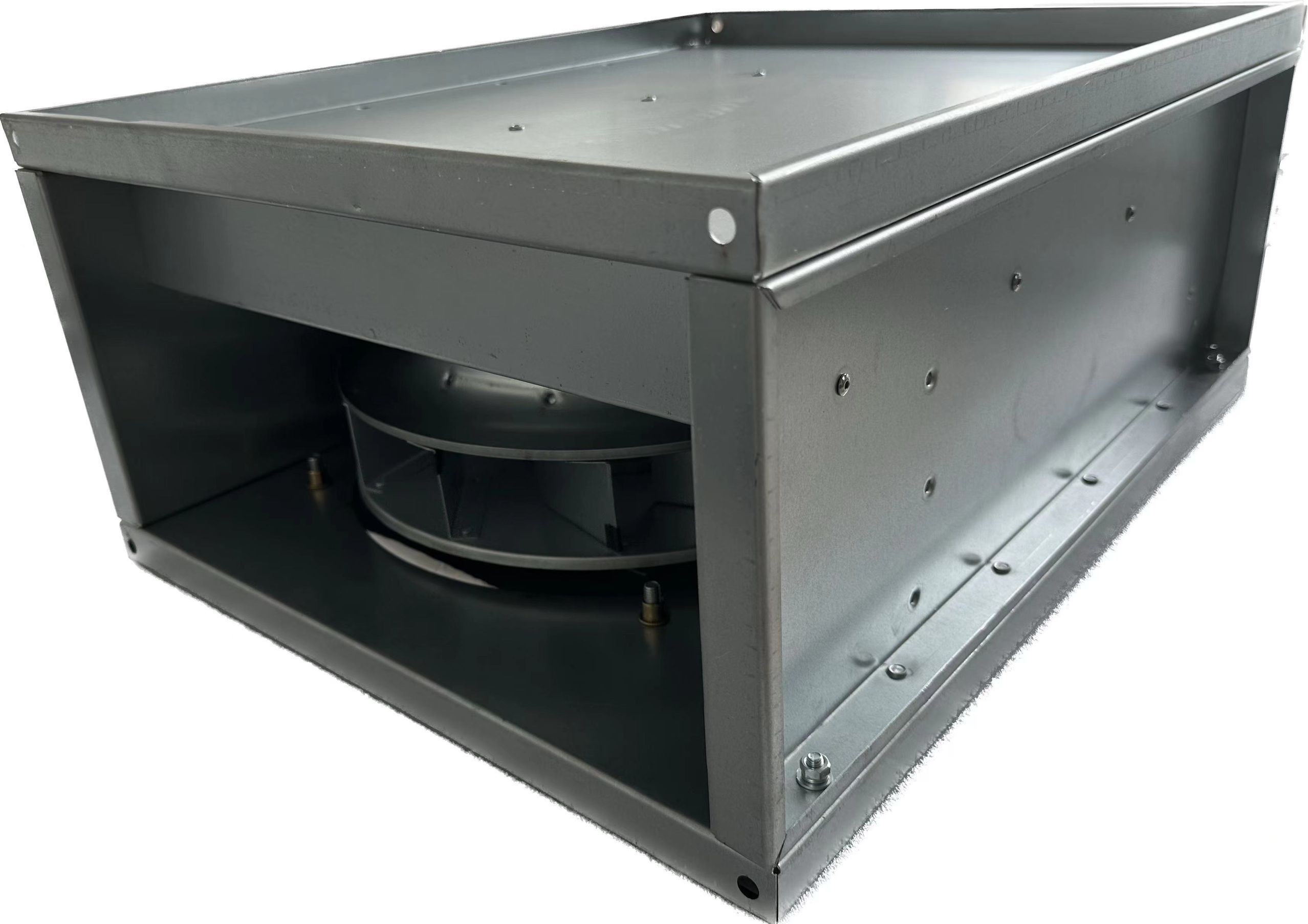

Eco Friendly Rectangular Duct Fan Blower 220v With High Air Pressure

Eco Friendly Rectangular Duct Fan Blower 220v With High Air Pressure

Eco Friendly Rectangular Duct Fan Blower 220v With High Air Pressure

Product Details:

Place of Origin: China
Brand Name: OFAN
Certification: CE CCC ROHS
Model Number: RK250*125FM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-100USD
Packaging Details: Conventional packaging
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per
Contact Now
Detailed Product Description
Model Numbe: Rectangular Duct Fan Blower Feature: Eco Friendly
Power: 40W Advantage: High Air Pressure
Size:: 250*125 Frequency: 50/60hHZ
Current: 0.18A Speed: 1140RPM

Eco Friendly Rectangular Duct Fan Blower 220v With High Air Pressure



Rectangular Duct Fan Feature

  • Design of great airflow rate and high air pressure;
  • Rectangular air port occupies less space, connecting more convenient;
  • 100% pure copper motor consistent running for 5000hr without failure;
  • All metal multi-blade centrifugal motor;
  • High quality galvanized steel case with better fire prevention, corrosion resistance performance;
  • Adopt CBB60 film capacitor, strong overload capacity,small loss and long service;
  • ABS flame retardant junction box to make the wiring is more convenient and safe;
  • High-quality NSK ball bearing to ensure motor running more smoothly and silent;
  • Can start up at 100V ultra-low voltage;
  • Enclosure class IP44;
  • Insulation class E.

Rectangular Duct Fan Parameters



Model Numbe Voltage Power current Air Volume frequency Speed Size Certification



Blade   Material



RK250*125FM 220V 40W 0.18A 335m3/h 50/60HZ 1140RPM 250*125 CCC CE



steel





Easy installation via 20mm standard flange


Can be installed in any position


The speed is 0-100% infinitely variable by auto transformers or electronic control


Compact and space saving design


Extremely low starting currents


Motor protection by thermal contacts in motor windings as standard



The translocation type motor and impeller have been used for the product, which is convenient for cleaning and ,maintenance



Forward curved impeller with outer rotor ensures the high-performance of the fan; and the motor bearing in a sealed condition, together with safety, reliability and long service life
