Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ

Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ

    • Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ
    • Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ
    • Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ
    • Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ
  • Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ

    Product Details:

    Place of Origin: china
    Brand Name: OFAN
    Certification: ce ccc
    Model Number: LD355C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: 45*45*24
    Delivery Time: 5-8 work days
    Payment Terms: D/P, D/A, L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000PCS15days
    Contact Now
    Detailed Product Description
    Name: EC Centrifugal Fans Model: LD355C-230D3-00
    Rated Voltage: 230VAC Operatation Voltage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.5A
    Power: 325W Rated Speed: 1920RPM
    Air Flow 1: 3100m³/h Air Flow 2: 1850CFM
    Air Pressure: 66mmH2O Noise Level: 75dba
    High Light:

    industrial centrifugal blower

    ,

    centrifugal fans and blowers

    Air Purifier EC Centrifugal Fans Impellers For Cleanroom Fans 355mm



    EC Centrifugal Fans Details

    1. Insulation Class:B
    2. Bearing: Ball bearing
    3. Mode of operation: Continuous operation(S1)
    4. Direction of rotation: Anticlockwise, see on the leads
    5. Operation Temperature:-20℃~+60℃
    6. Weight:5.7kg



    What is EC technology?



    EC Technology stands for Electronically Commutated and combines AC and DC voltages, which is essentially a fan with a brushless DC motor, bringing the best of both technologies: the motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application, the power needed converting AC to DC, using a bulky, inefficient transformer. The EC motor incorporates voltage transformation within the motor. The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.



    EC Centrifugal Fans Parameters



    Name: EC Backward Curved Impellers Model: LD355C-230D3-00
    Rated Voltage: 230VAC Operatation Voltage: 176-264VAC
    Frequency: 50/60HZ Rated Current: 1.5A
    Power: 325W Rated Speed: 1920RPM
    Air Flow 1: 3100m³/h Air Flow 2: 1850CFM
    Air Pressure: 66mmH2O Noise Level: 75dba



    Six reasons that make us the ideal partner:



    1. Our systems expertise. As experts in advanced motor technology, electronics and aerodynamics, we provide system solutions from a single source.

    2. Our spirit of invention. Our 60 engineers and technicians will develop a solution that precisely fits your needs.

    3. Our lead in technology. Our OFAN EC technology is setting standards worldwide. And our lead is your competitive advantage.

    4. Proximity to our customers. At 20 sales offices worldwide.

    5. Our standard of quality. Our quality management is uncompromising, at every step in every process.

    6. Our sustainable approach. We assume responsibility with our energy-saving products, environmentally-friendly processes, and social commitment.





    EC technology advantages:


    1. Professional EC R&D engineer team;
    2. OFAN PCB design;
    3. World top three electric components supplier;
    4. CE certification approval;
    5. Higher efficiency 60~80%;
    6. More energy saving;
    7. Lower waste;
    8. Low Temperature rise;
    9. More stable.


    Characteristic


    1. Applicable to high airflow;
    2. Applicable to high pressure;
    3. Applicable to larger system resistance and limited internal space.

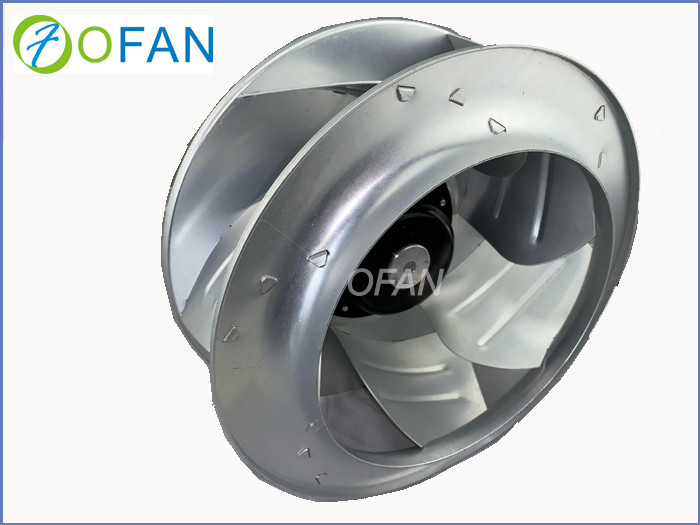

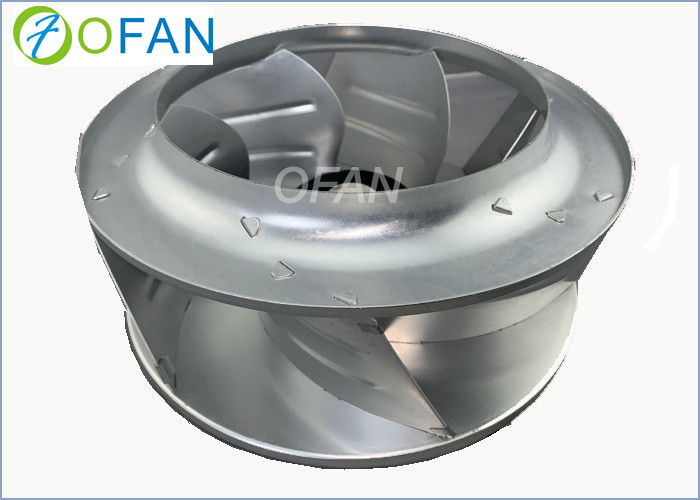

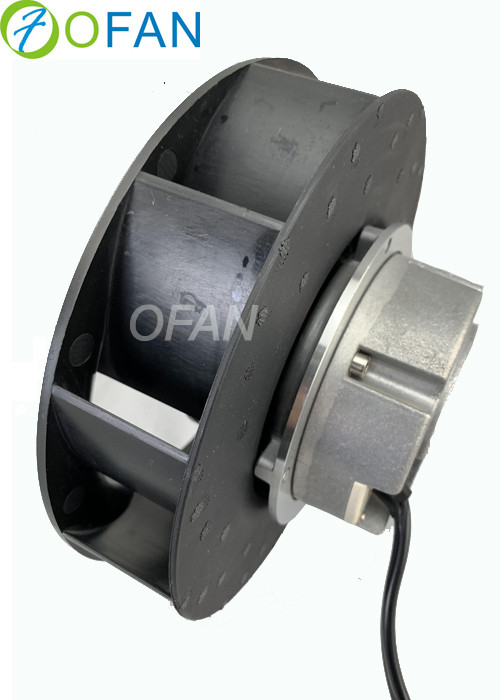

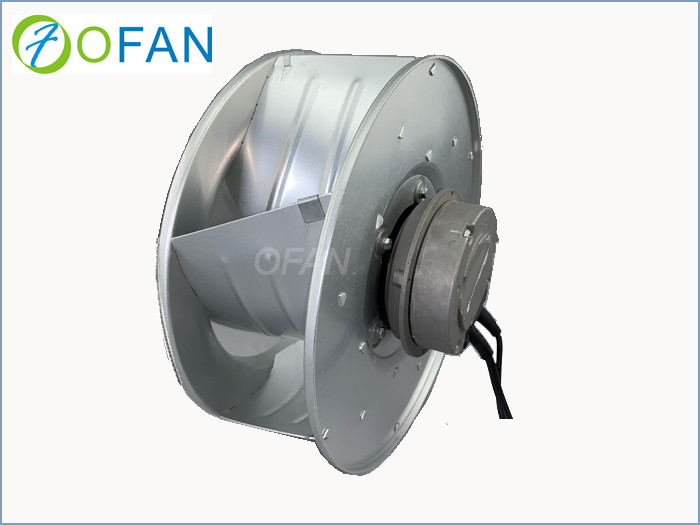

    EC Centrifugal Fans Pictures



    Air Purifier EC Centrifugal Fans Impellers For Cleanroom 355mm 60HZ 0
