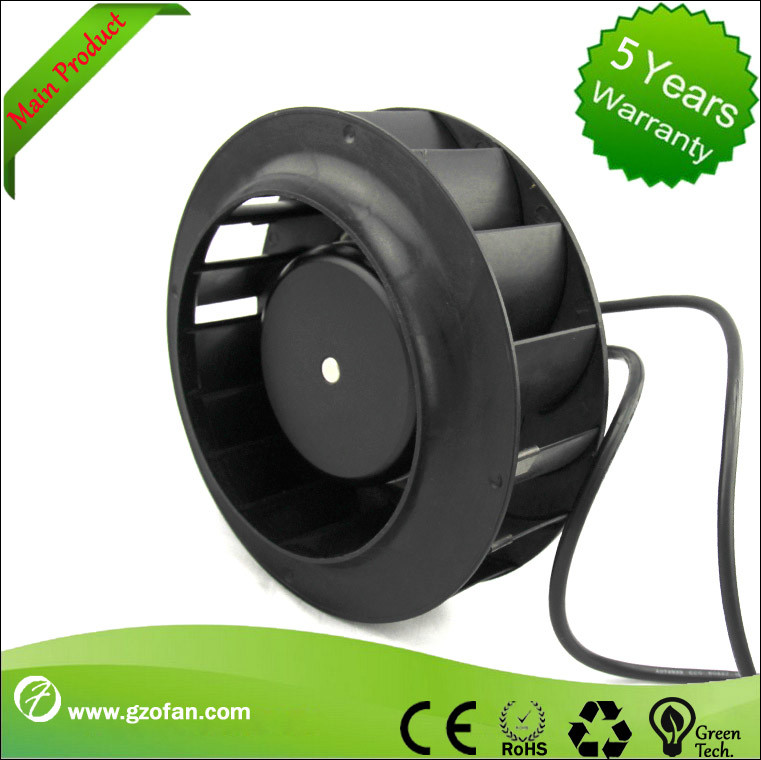

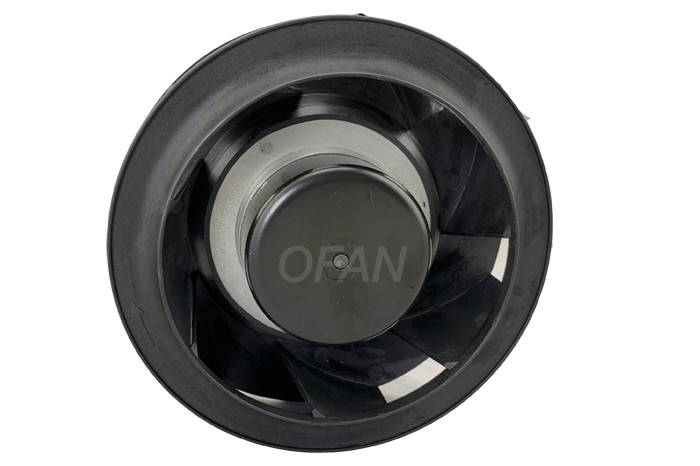

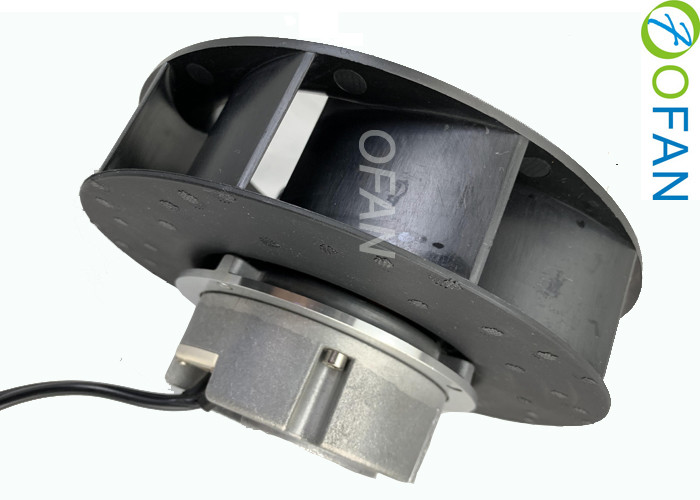

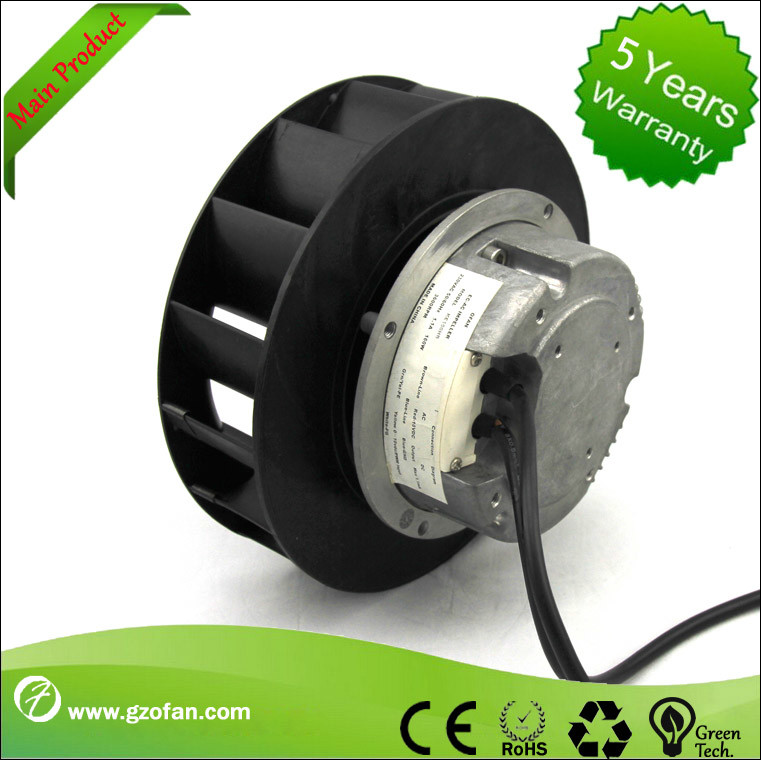

Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM

Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM

    • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
    • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
    • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
    • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
    • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
  • Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD220C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 15 word days
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power: 130W Air Flow: 972m³/h
    Rated Speed: 3200RPM Curreng Draw: 0.6A
    Frequency: 50/60H Nomual Voltage: 230v

    Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM



    Type

    Nomual voltage

    (VAC)

    Frequency

    (HZ)

    Speed

    (rpm)

    Power imput

    (w)

    Curreng draw

    (A)

    Sound pressurelevel

    (dB)

    Perm.amb.temp
    LD220C-230D3-00 230 50/60 2600 75 0.6 62



    -20~+60







    Currently, both at home and abroad, the EC axial fan has been widely used in various fields, especially ventilation, large air conditioning and refrigeration. The compact structure and continuous controllability of EC centrifugal fan has been into full play to air handing units, computer modules, communication systems ,clean room systems, roof fans, home machine automotive and rail technology



    Benefits
    Energy savings : Minimum power consumption & better efficiency than AC equivalent.
    Control : 100% speed controllable, not frequency dependant. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal.
    Low motor temperature : for longer lifetime than AC equivalent
    Simplicity : Electronic & power transformation are completely integrated within the motor



    Energy savings with EC fans
    Let’s assume a laminar flow workstation requiring 13200m³/h at 450Pa. This requires 4 off Ø315 backward curved fans. Now let us assume that this workstation operates for 50 weeks of the year and for 8 hours per day at full speed. During non working hours to maintain the work area, the fans are run at roughly half the airflow.

    AC fan 2800hrs @ 4 x 1.41kW = 5.64kW 15,792 kWh
    5600hrs @ 4 x 0.62kW = 2.48kW 13,888 kWh
    Total A 29,680 kWh
    EC fan 2800 hrs @ 4 x 1.04kW = 4.16kW 11,648 kWh
    5600 hrs @ 4 x 0.27kW = 1.08kW 6,048 kWh
    Total B 17,696 kWh
    A minus B 11,984kWh saved with the EC fan



    Why choose us?
    1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
    2. We are sole International sales of the factory, we can help to control and protect the market of clients.
    3. We integrates different kinds of products for air management.
    4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.



    Analogous Ebm-past 220mm EC Centrifugal Fans With Air Purification Speed 2600RPM
