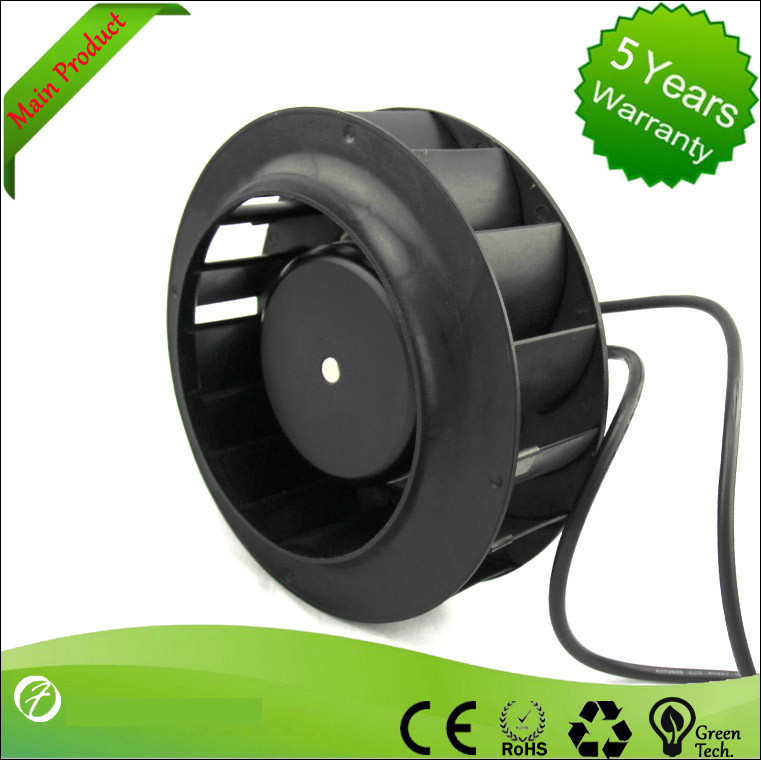

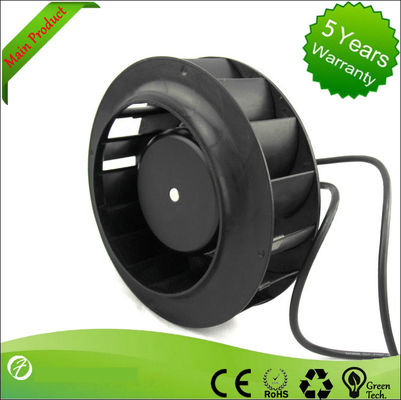

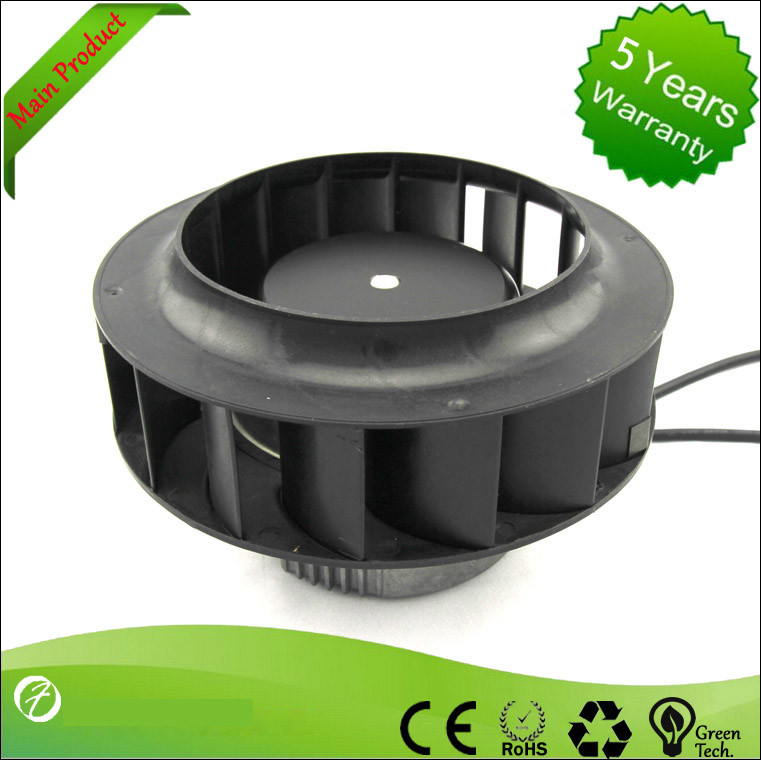

Electric Power EC Centrifugal Fans , Industrial Centrifugal Blower For Air Shower

Electric Power EC Centrifugal Fans , Industrial Centrifugal Blower For Air Shower

    • Electric Power EC Centrifugal Fans , Industrial Centrifugal Blower For Air Shower
    • Electric Power EC Centrifugal Fans , Industrial Centrifugal Blower For Air Shower
  • Electric Power EC Centrifugal Fans , Industrial Centrifugal Blower For Air Shower

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD220C-230D3-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS 15days
    Contact Now
    Detailed Product Description
    Power: 145W Air Flow: 1100m³/h
    Rated Speed: 3320RPM Name: EC Centrifugal Exhaust Fan Blower

    Ground Source Heat Pumps Fan Motor With Electric Power Ld220c-230d3-01 For Hvac





    1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation            circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the            AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and                   application of the overall power system in customer.

    2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which             enforces the winding current commutation through electronic commutator (position sensing, non-               position sensing),achieve the speed control function with PAM or PWM control

    Mechanical Parameters
    Material of Impeller PA66 Propylene with Fibreglass reinforce
    Bearing System Dual NMB maintenance-free ball bearing
    Life time 50000 hours (L10) at 40°C room, humidity15%~65%RH
    Lead Wire AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains)
    Operating Temperature -25°C to +60°C
    Storaging Humidity 5% to 90% RH
    Approval CE, CCC, ErP2015 and RoSH compliance
    Warrent 18 months after delivery
