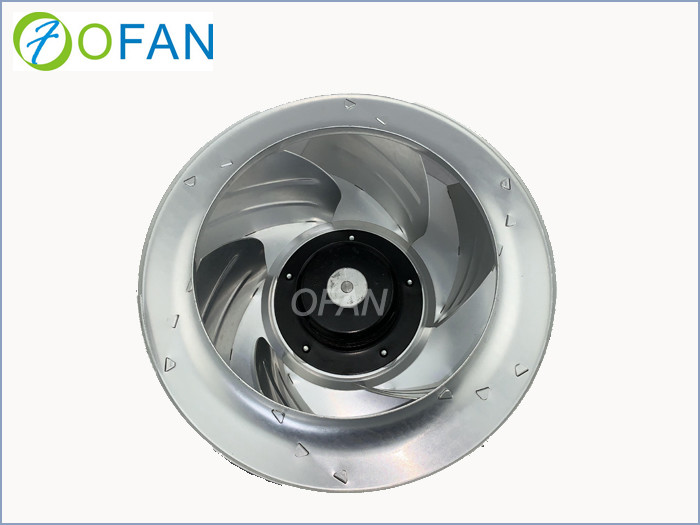

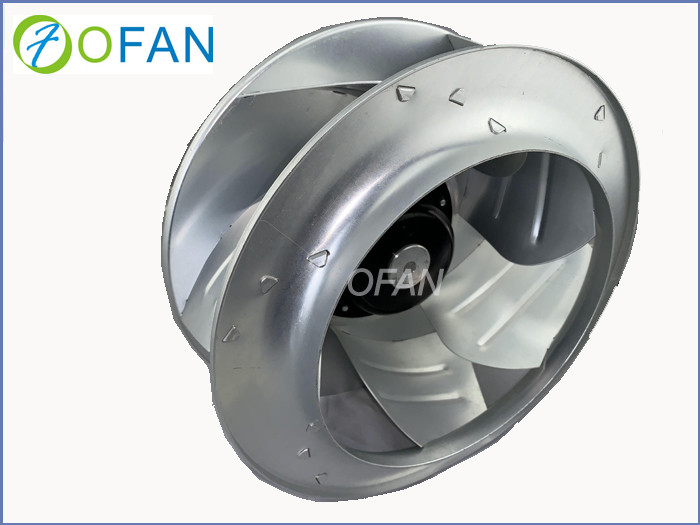

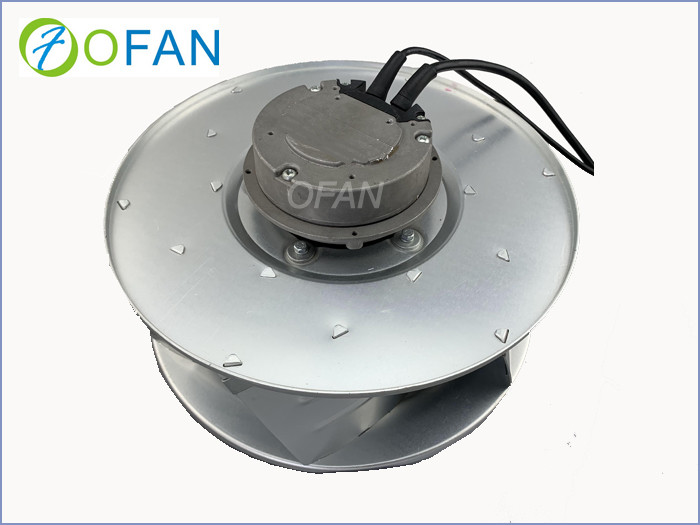

Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM

    • Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM
    • Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM
    • Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM
    • Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM
  • Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD310C-230D3-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Simple packing
    Delivery Time: 15 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Power: 305W Rated Speed: 2350RPM
    Air Flow: 2550m³/h Curreng Draw: 1.4A
    Frequency: 50/60HZ Nomual Voltage: 230V

    Replace Ebm-past EC Centrifugal Fans 310mm Filtering Ffu Speed 2200 RPM



    Type

    Nomual voltage

    (VAC)

    Frequency

    (HZ)

    Speed

    (rpm)

    Power imput

    (w)

    Curreng draw

    (A)

    Sound pressurelevel

    (dB)

    Perm.amb.temp
    LD310C-230D3-02  230   50 2200 320 1.5 62

    -20~+60







    With an EC motor the electronic circuitry stands in lieu of the traditional mechanical commutation meaning the right amount is being supplied in the right direction at exactly the right time providing precise motor control.



    High performance : Speed can be driven up to 3600rpm, one EC fan replace multiple type of motors (2, 4 and 6 pole)


    Easy connection : No complicated wiring and set-up with a Frequency Controller, EC fans have very little configuration.



    he basic functions and performances of EC fan controller

    1. Sensorless permanent magnet motor drive

    2. Wide input voltage range, single phase 110-270V, three phase 250v-480v, 50/60hz

    3. Power factor correction(PFC): Passive and active(IEC61000-3-2)

    4. Soft start, adjustable acceleration, CVT



     if the fans doesn't work well, what shall I do ?

    If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.

    If after one year, we will supply you the right parts to replace at low price.



     What about delivery date?

    Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
