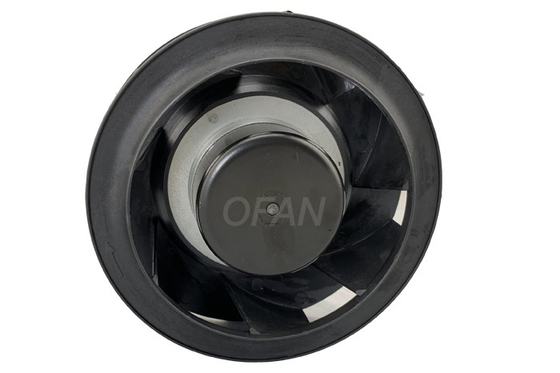

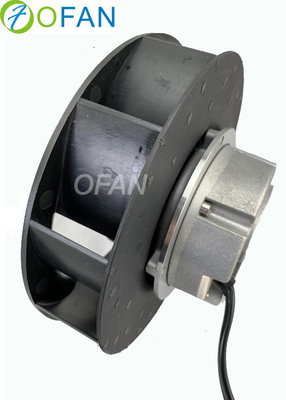

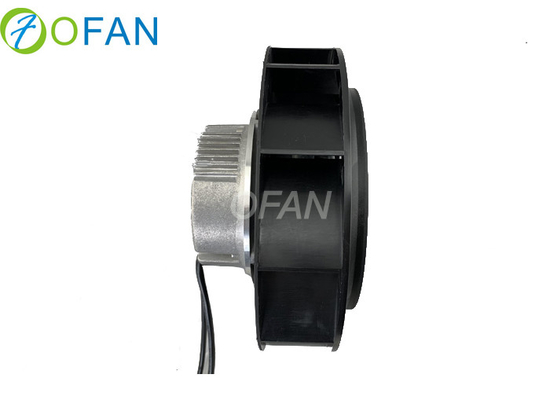

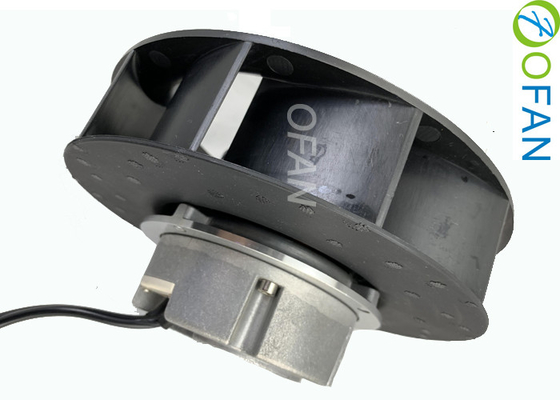

EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering

EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering

    • EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering
    • EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering
  • EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE ROHS
    Model Number: LD133N-24D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Supply Ability: 10000PCS
    Contact Now
    Detailed Product Description
    Type: LD133N-24D3-01 Rated Voltage: 24V
    Rated Current: 1.6A Rated Speed: 4000RPM
    Power Iput: 38.4W Air Flow: 360m³/h

    Ec Backward Centrifugal Blower With Durable Ld133n-24d3-00



    Key Specifications/Special Features:

    Rated voltage[V]: 48v
    Frequency[HZ]: 50/60
    Rated current[A]: 1.2
    Input power[W]: 38.4
    Rotate speed[R/min]: 4000
    Air volume[m/h]: 360
    Material: impeller made of plastic Pa66
    Number of blades: 7
    Technical features: control input 0-10VDC/PWM tach output
    Protection: locked-rotor protection, current limited under-voltage and over-voltage lockout protection, soft start
    Bearing: ball bearings
    Type of protection: IP42
    Motor insulation class: F
    Direction of rotation: anticlockwise, see on the leads
    Approvals: CCC CE
    Amb temp:-25-+60°C















    EC 48V Backward Centrifugal Blower , High Airflow Centrifugal Fan For Filtering
