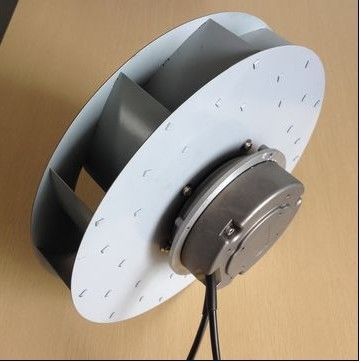

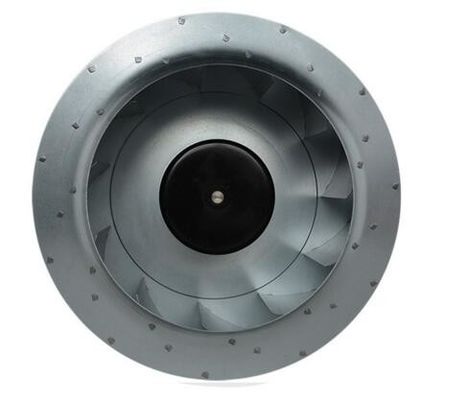

250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor

250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor

    • 250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor
    • 250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor
    • 250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor
  • 250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE
    Model Number: LD250C-230D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: negotiation
    Packaging Details: 600*600*50
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Nominal Voltage: 220VAC Speed: 1955pm
    Power Input: 64W Current Draw: 0.48A
    Air Flow: 950m³/h Sound Pressure Level: 65db

    250x77 Ec Brushless Motor Energy Saving Ec Fan Withld250c-230d3-00





    Key Specifications/Special Features:

    Type LD250C-230D3-00
    Nominal voltage 230VAC
    Speed 1955RPM
    Power input 64W
    Current draw 0.48A
    Air Flow 950m³/h
    Sound pressure level 65dB
    • Benefits over traditional fan and motor technology:
    • Reduced energy consumption
    • Significant noise reduction
    • Stepless and infinite variable speed control
    • No need for additional motor protection
    • Remote monitoring via MODBUS
    • Compact motors making them fully interchangeable with AC products for retrofit
    • Fully integrated, mains input power supplies
    • Fully sealed electronics
    EC fans with integrated commutation electronics offer a high efficiency across the entire speed range, optimum noise characteristics with minimum installation complexity, and overall unmatched cost-effectiveness

    Features:
    • Size: 250mm diameter X 50mm
    • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
    • Fully integrated electronic commutation.
    • Protect against reverse polarity and locking.
    • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.







    250 mm x 77 mm Backward Curved Centrifugal Fan With EC Brushless Motor
