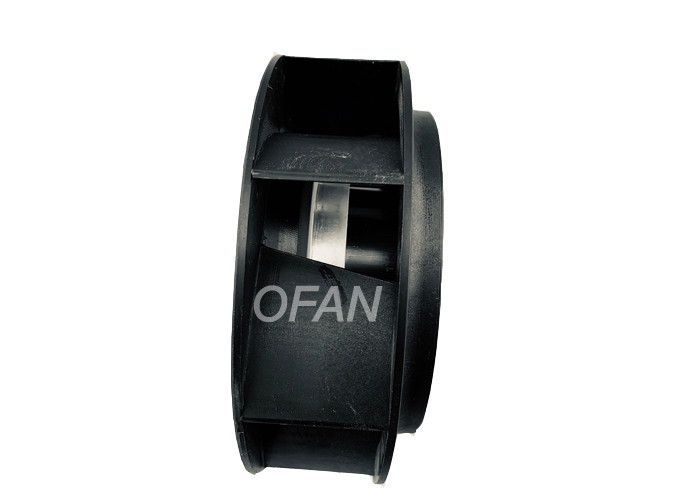

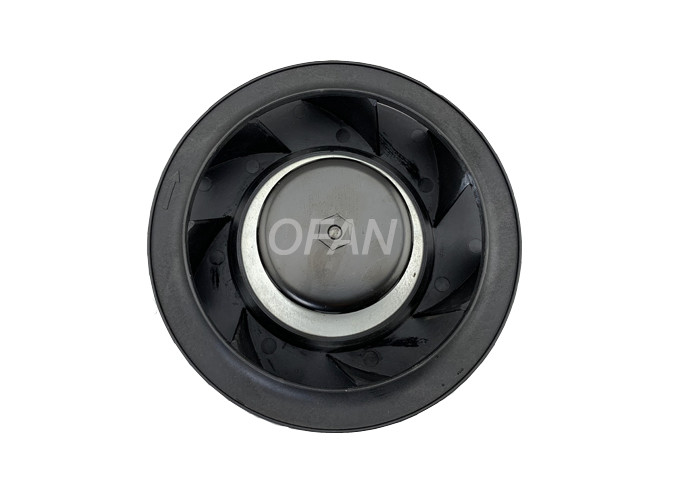

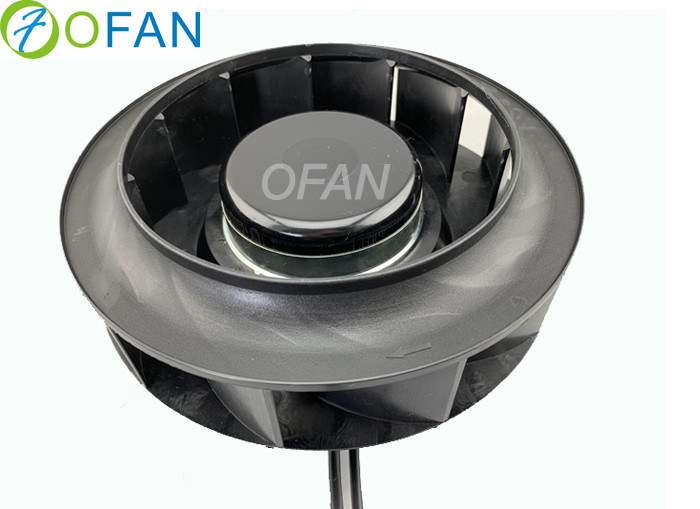

EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm

EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm

    • EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm
    • EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm
    • EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm
  • EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm

    Product Details:

    Place of Origin: China
    Brand Name: OFAN
    Certification: CE,UL,3C
    Model Number: LD190N-48D3-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $10~30/pcs
    Packaging Details: 65*65*70
    Delivery Time: 5-8 word days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs20days
    Contact Now
    Detailed Product Description
    Rated Voltage: 48V Rated Speed: 3000RPM
    Air Flow: 550m³/h Power: 57W
    Current: 1.2A Operation Voltage: 36-56V

    Parallel Ebm 175mm DC Centrifugal Fan With New Energy PA66 Refirgeration



    Listed
    Model
    Rated
    Voltage
    Operation
    Voltage
    Rated
    Current
    Power Rated
    Speed
    Air
    Flow
    Air
    Flow
    Air
    pressure
    Noise
    Level
    Part NO. VDC VDC A W RPM m³/h CFM mmH2O dBA
    LD190N-48D3-00 48 36~56 1.2 57 3000 550 330 41.5 70
    LD190N-24D3-01 24 16~28 2.4 57 3000 550 330 36.8 65



















    Brushless DC motors have been around for many years but there has always been the need for a separate DC power supply. In applications using only an AC supply this introduced added cost and complexity. Then, in 2003, ebm-papst brought out an EC fan with integrated electronics which could be connected directly to an AC mains supply. In addition to performing the commutation, the electronics convert AC to DC and control the fan speed by regulating the power to the motor.

    Put simply, DC motors are around 30% more efficient than AC motors because the secondary magnetic field comes from permanent magnets rather than copper windings. An AC motor consumes additional energy solely to create a magnetic field by inducing a current in the rotor. But this is only half the story. The use of modern electronics in controlling the motor has opened up many other possibilities which contribute to using less power.



    Construction
    Cowls are of galvanised steel construction.
    Impellers are backward-curved centrifugal design and are of high performance composite material.
    Bird-mesh guards are an optional extra.
    Powder-coating is an optional extra.



    Special Note
    Backdraft shutters are an optional extra. The pressure loss across the shutter has to be added to the system pressure before making selections.
    All GL Gamma EC models can be pre-configured to suit specific sensors and specific applications. Please advise Fantech of these parameters at the time of order.
    EC motors should be directly connected to their appropriate AC supply. EC motors should not be regularly power cycled.





    Our Services

    1. Warranty: 1 year warranty for all products.

    2. Private Labelling: All of axial fans are able to be Private labeled.

    3. Products Quality: 100% products inspection before delivery.

    4. Just in time delivery: Normally, Lead time is 30 days.

    5. Prompt customers Services: E-mail will be replied in 24 hours.





    Why choose us?
    1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
    2. We are sole International sales of the factory, we can help to control and protect the market of clients.
    3. We integrates different kinds of products for air management.
    4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
    5. We ab
    sorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.









    EC technology DC Centrifugal Fan With HVAC Industry PA66 Refirgeration 190mm
