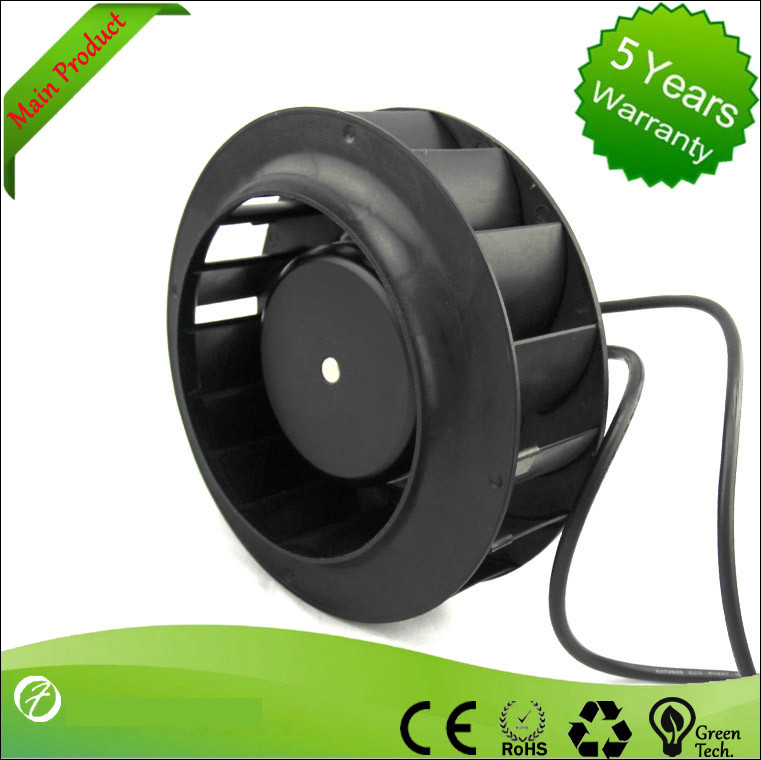

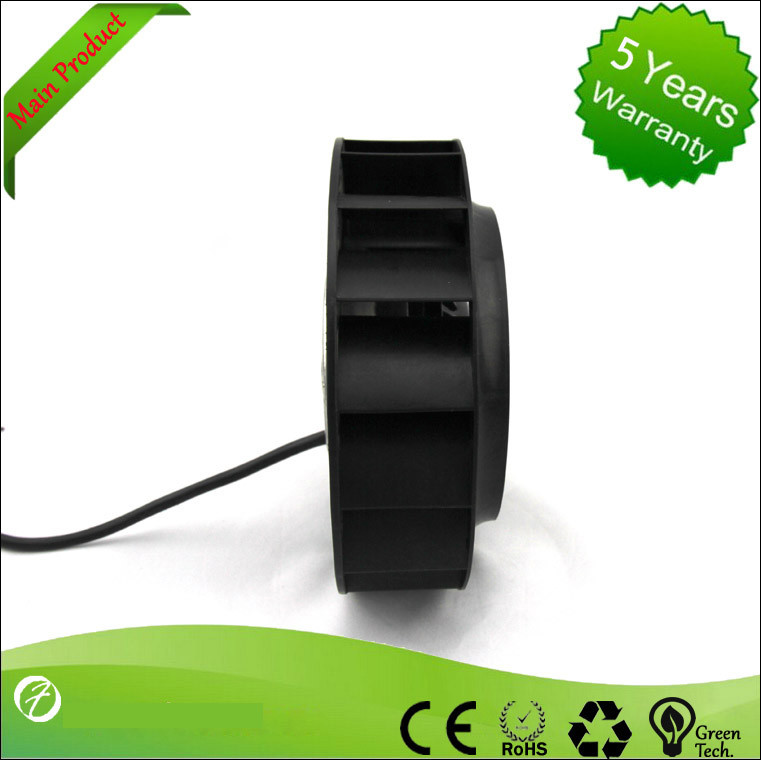

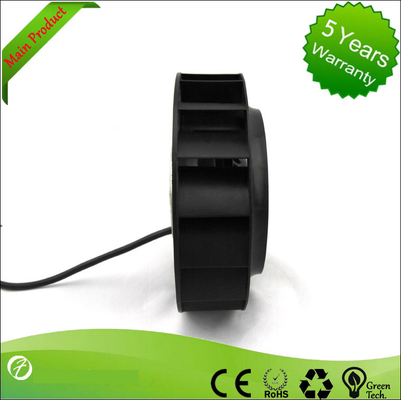

High Speed 48V DC Centrifugal Backward Curved Fans Blowers 133mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Backward Curved Industrial Blower Fans | Rated Voltage | 48V |
|---|---|---|---|
| Rated Current | 0.8A | Rated Speed | 4000RPM |
| Power Iput | 38.4W | Air Flow | 360m³/h |
| Highlight | centrifugal backward curved fan,backward curved blower |
||
Product Description
High Speed 48V DC Centrifugal Backward Curved Fans Blowers 133mm
Key Specifications/Special Features:
Design features
1. Bearing system: ball bearing
2. Impeller: plastic with fiberglass filed UL 94v-0
3. Housing: die cast aluminum painted black or natural color
4. Motor: brushless DC
5. Insulation resistance: 10 megohms minimum at 500V DC
6. Dielectric strength: 1 minimum at 500V AC/60Hz (between frame and terminal)
7. Operating temperature: -10℃ to +70℃ for the sleeve bearing, -20℃ to +80℃ for the ball bearing
8. Ambient humidity: ball bearing RH20%-85%, sleeve bearing RH 20%-80%
9. Connecting: wire leads
Red wire positive(+)
Black wire negative(-)
White wire speed sensor signal(FG)
Blue wire pwm
10. Speed: high speed type
1. Bearing system: ball bearing
2. Impeller: plastic with fiberglass filed UL 94v-0
3. Housing: die cast aluminum painted black or natural color
4. Motor: brushless DC
5. Insulation resistance: 10 megohms minimum at 500V DC
6. Dielectric strength: 1 minimum at 500V AC/60Hz (between frame and terminal)
7. Operating temperature: -10℃ to +70℃ for the sleeve bearing, -20℃ to +80℃ for the ball bearing
8. Ambient humidity: ball bearing RH20%-85%, sleeve bearing RH 20%-80%
9. Connecting: wire leads
Red wire positive(+)
Black wire negative(-)
White wire speed sensor signal(FG)
Blue wire pwm
10. Speed: high speed type
