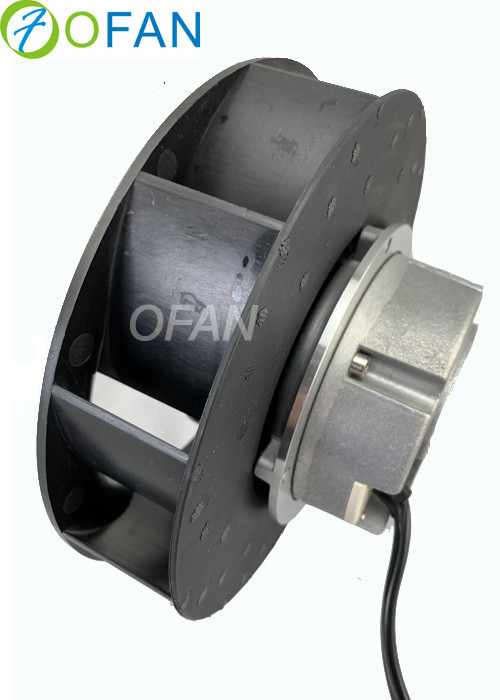

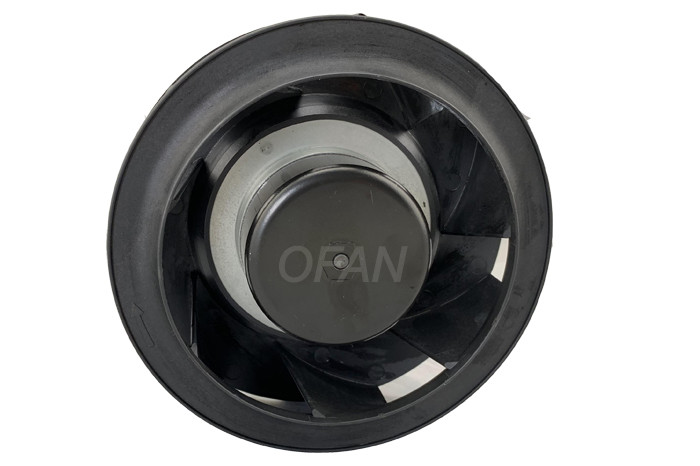

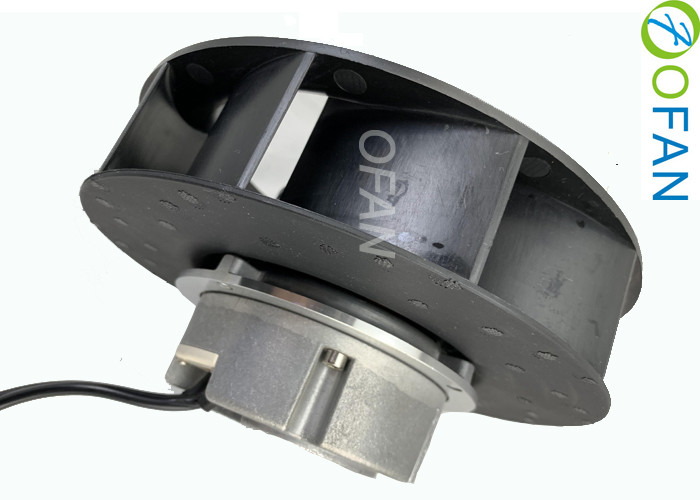

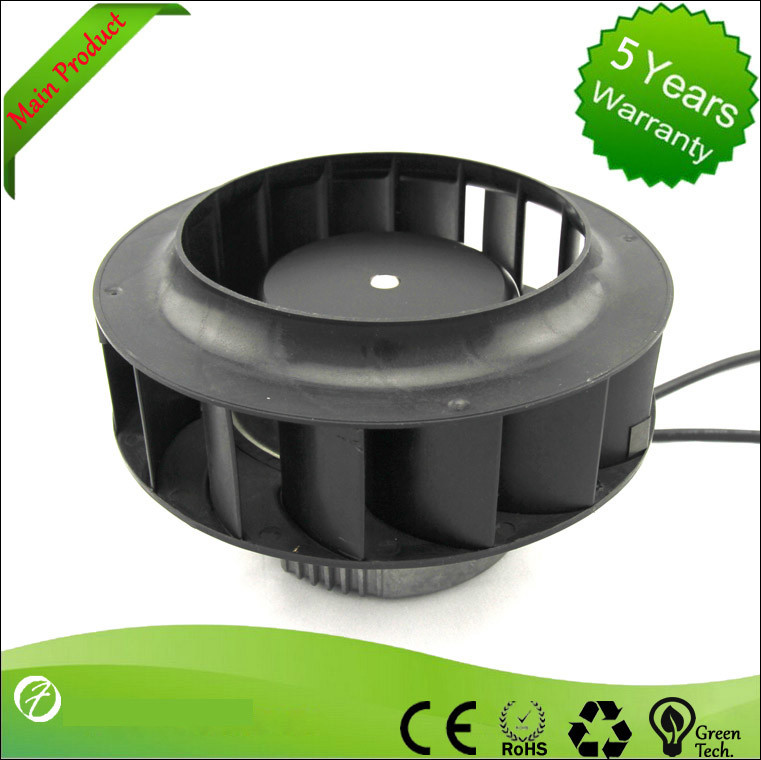

PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent

PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent

  • PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent
  • PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent
PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent
Product Details:
Place of Origin: China
Brand Name: OFAN
Certification: CE
Model Number: LD220C-230D3-01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: 600*600*50
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
Nominal Voltage: 220VAC Speed: 3310pm
Power Input: 145W Current Draw: 1.0A
Air Flow: 1050m³/h Sound Pressure Level: 74db
Name: Centrifugal Blower Fan
High Light:

centrifugal backward curved fan

,

backward centrifugal fan

Pa66 Brushless Motor Energy Saving Ec Fan Ld220c-230d3-01





Key Specifications/Special Features:

Type LD220C-230D3-01
Nominal voltage 230VAC
Speed 3310RPM
Power input 145W
Current draw 1.0A
Air Flow 1050m³/h
Sound pressure level 74dB



  • Benefits over traditional fan and motor technology:
  • Reduced energy consumption
  • Significant noise reduction
  • Stepless and infinite variable speed control
  • No need for additional motor protection
  • Remote monitoring via MODBUS
  • Compact motors making them fully interchangeable with AC products for retrofit
  • Fully integrated, mains input power supplies
  • Fully sealed electronics
EC fans with integrated commutation electronics offer a high efficiency across the entire speed range, optimum noise characteristics with minimum installation complexity, and overall unmatched cost-effectiveness

Features:
  • Size: 220mm diameter X 44mm
  • Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
  • Fully integrated electronic commutation.
  • Protect against reverse polarity and locking.
  • Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.







PA66 Brushless Motor Ec Backward Curved Centrifugal Fan 220VAC Silent 0
