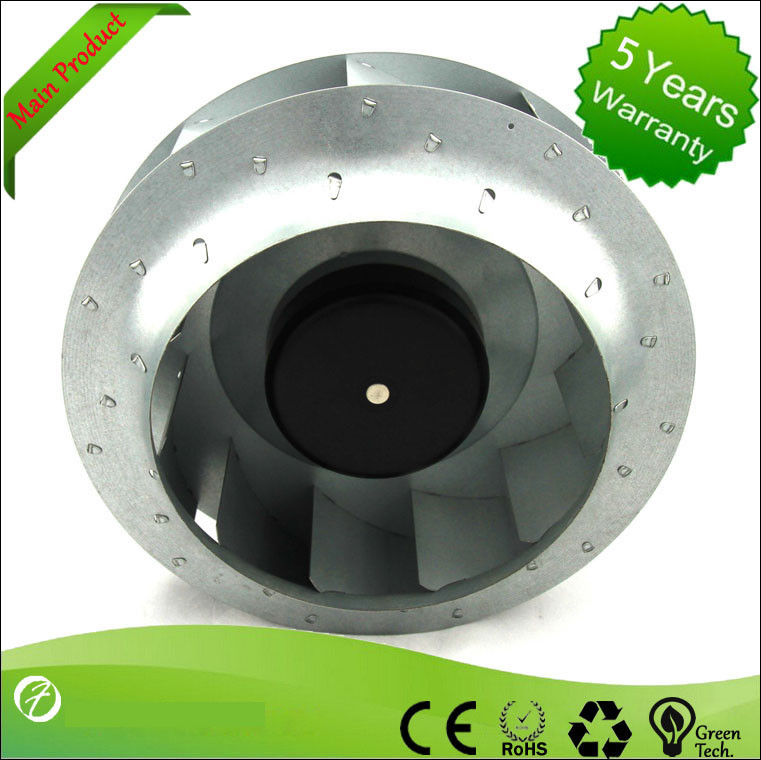

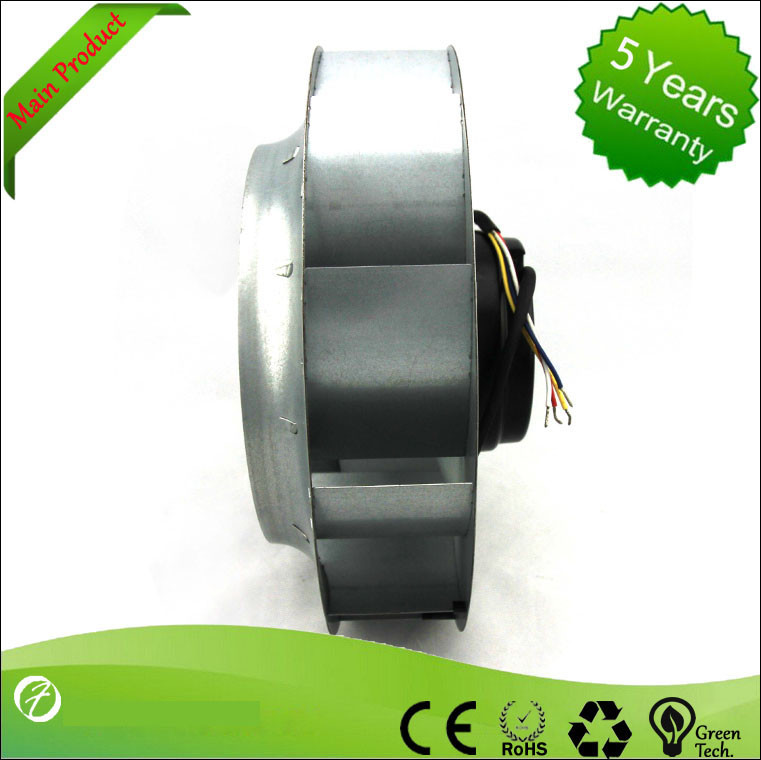

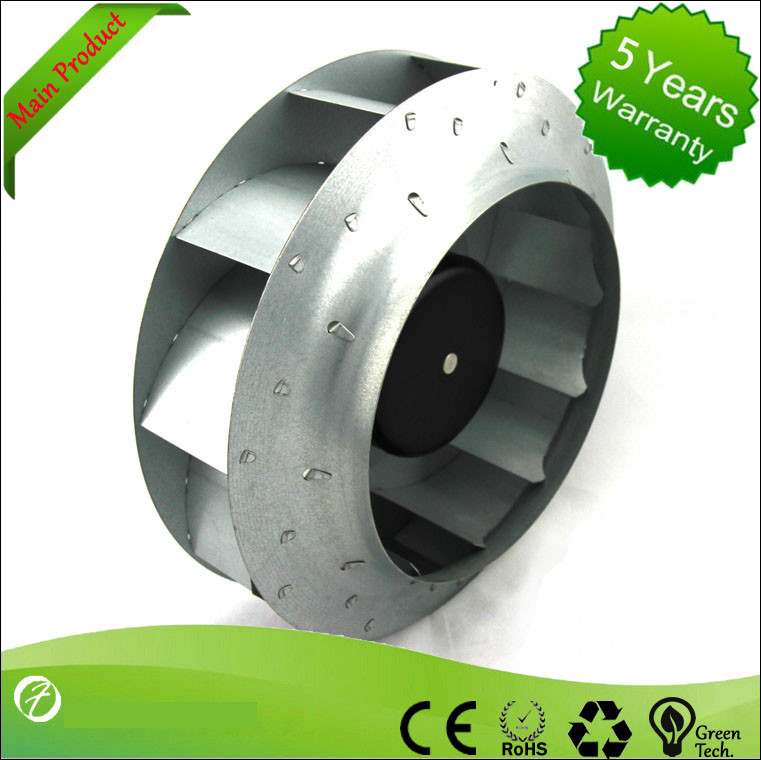

Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm

Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm

  • Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm
  • Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm
  • Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm
  • Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm
Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm
Product Details:
Place of Origin: China
Brand Name: OFAN
Certification: CE ROHS
Model Number: LD250C-230D3-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Simple packing
Delivery Time: 15 word days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10000PCS 15days
Contact Now
Detailed Product Description
Power Input: 75W Air Flow: 1300m³/h
Rated Speed: 2450RPM Nominal Voltage: 220V
Current Drwa: 0.6A Frequency: 50/60HZ
High Light:

industrial centrifugal blower

,

centrifugal fans and blowers

Resemble Ebm-past New Energy Ec Centrifugal Fans Gakvabused Sheet Steel With 250mm





Permanent-magnet brushless DC motor within the rotor


The stator is driven by electronic switches (which replace the Carbon brushes), controlled by a microcontroller.


Electronic system (hall effect sensor or software is used to recognize the rotor position)


AC operated (230Volts Single phase or 380/480Volts 3phase, 50/60Hz)





         Type

Nominal voltage

(VAC)

Frequency

   (HZ)

Speed

(RPM)

Power imput

(w)

Current draw

(A)

Sound pressure

(dB)

Perm.amb.temp



LD250C-230D3-01     220     50/60 2450 75 0.6 68 -25~+60





Simplicity : Electronic & power transformation are completely integrated within the motor.


High performance : Speed can be driven up to 3600rpm, one EC fan replace multiple type of motors (2, 4 and 6 pole)


Easy connection : No complicated wiring and set-up with a Frequency Controller, EC fans have very little configuration



Pressure control : A pressure sensor can be connected directly to the Electronic of the EC motor. The pressure control is made by the integrated electronics. No additional control unit is needed. (Rosenberg Versions only)


Master/Slave : This system is used when several fans are used together within a single application. The main fan (Master) is individually pressure controlled. The other fans (slaves) are then speed controlled by the Master fan : Slave Fans are always at the speed of the master fan (Rosenberg Versions only).



Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.



What about delivery date?

Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
