Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm

Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm

  • Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm
  • Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm
  • Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm
  • Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm
Space Saving Metal Rectangular Duct Fan With Steel Material 250mm 125mm
Product Details:
Place of Origin: China
Brand Name: OFAN
Certification: CE CCC ROHS
Model Number: RK250*125FH
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 1-100USD
Packaging Details: Conventional packaging
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per
Contact Now
Detailed Product Description
Model Numbe: RK250*125FH Voltage: 220v
Power: 80W Air Volume: 460m3/h
Size:: 250*125 Frequency: 50/60hHZ
Current: 0.4A Speed: 1570RPM
High Light:

rectangular inline duct fan

,

rectangular exhaust fan

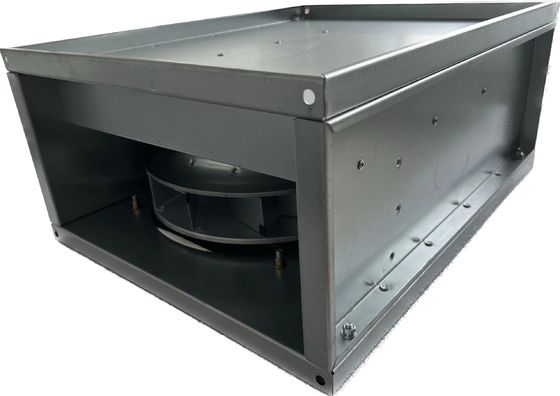

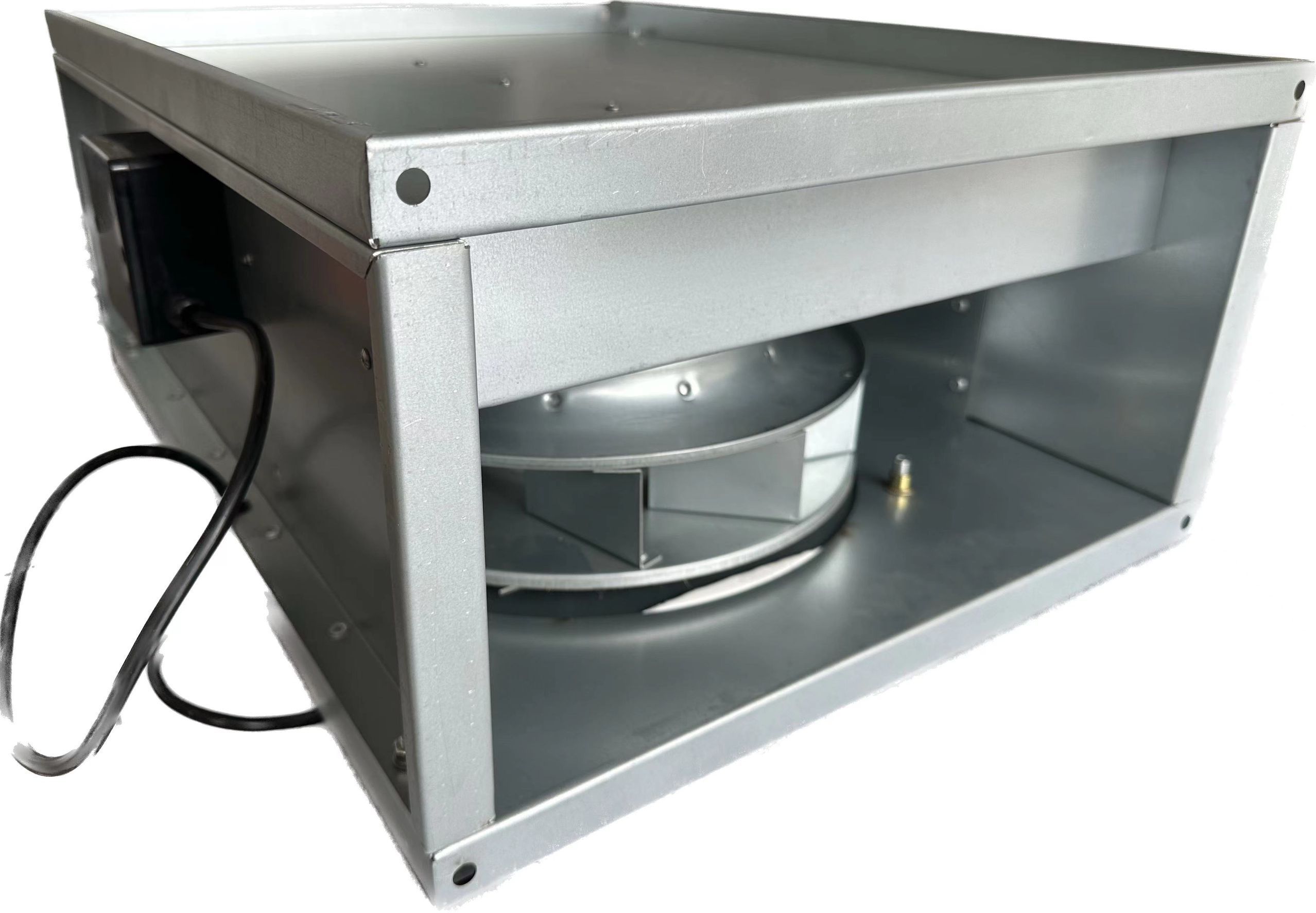

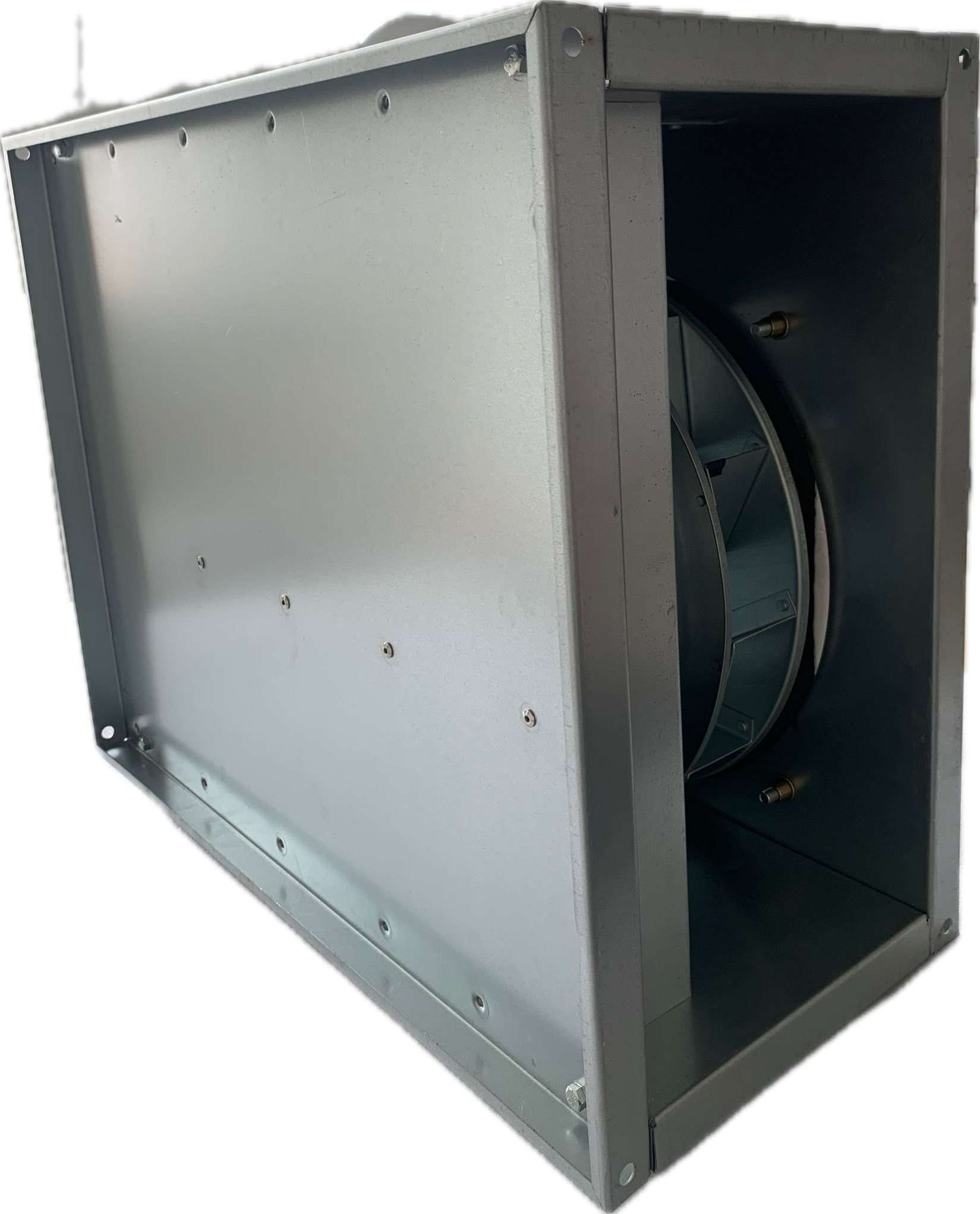

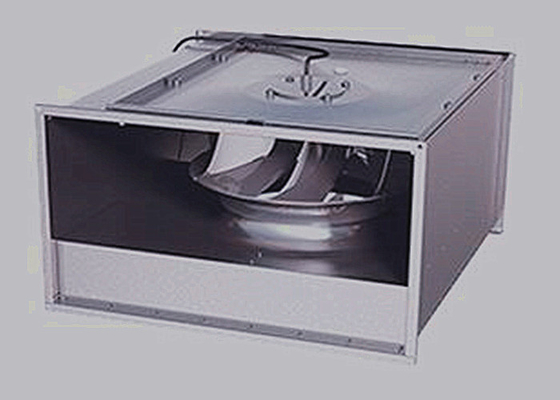

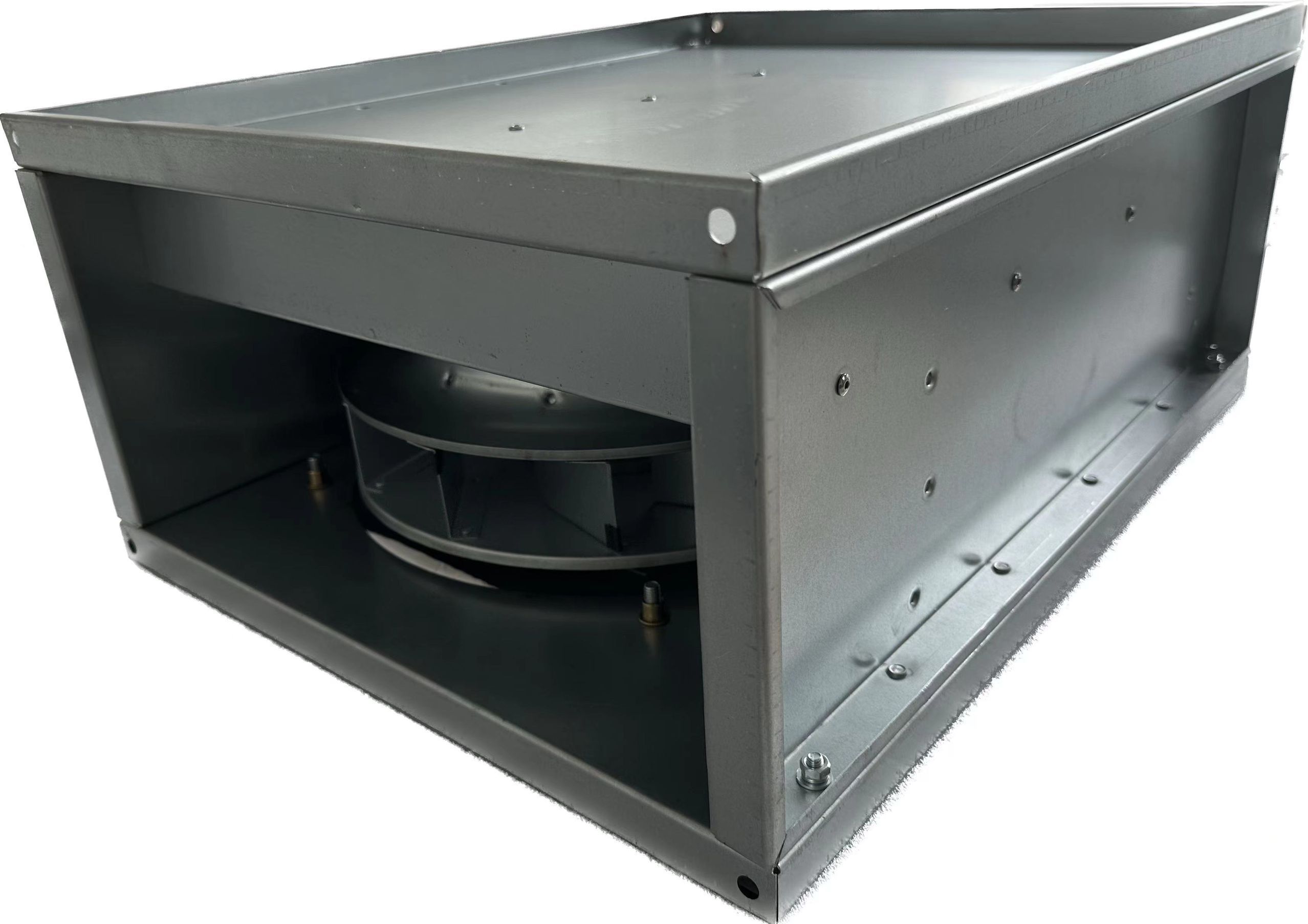

250mm 125mm Forward Curved Metal Rectangular Inline Duct Fan Steel



Model Numbe Voltage Power current Air Volume frequency Speed Size Certification



Blade   Material



RK250*125FH 220V 80W 0.4A 460m3/h 50/60HZ 1570RPM 250*125 CCC CE



steel





Easy installation via 20mm standard flange


Can be installed in any position


The speed is 0-100% infinitely variable by auto transformers or electronic control


Compact and space saving design


Extremely low starting currents


Motor protection by thermal contacts in motor windings as standard



The translocation type motor and impeller have been used for the product, which is convenient for cleaning and ,maintenance



They are widely used in the hospital ,hotel ,meeting room and airport etc, for air exhausting system. All the products adapt with external rotor motor, new style-cabinet, centrifugal impeller according to the aerodynamics, with thermal protector and speed controlled; with advantages of mini size, low vibration, low noise, long life ,safe high efficiency and convenient installation etc



External Rotor Motor: Adopted by single-phrase asynchronous external rotor motor. The impeller and motor are directly pressed so that impeller coule be driven by motor for small duct fans cubage, stable performance, high efficiency and durability
