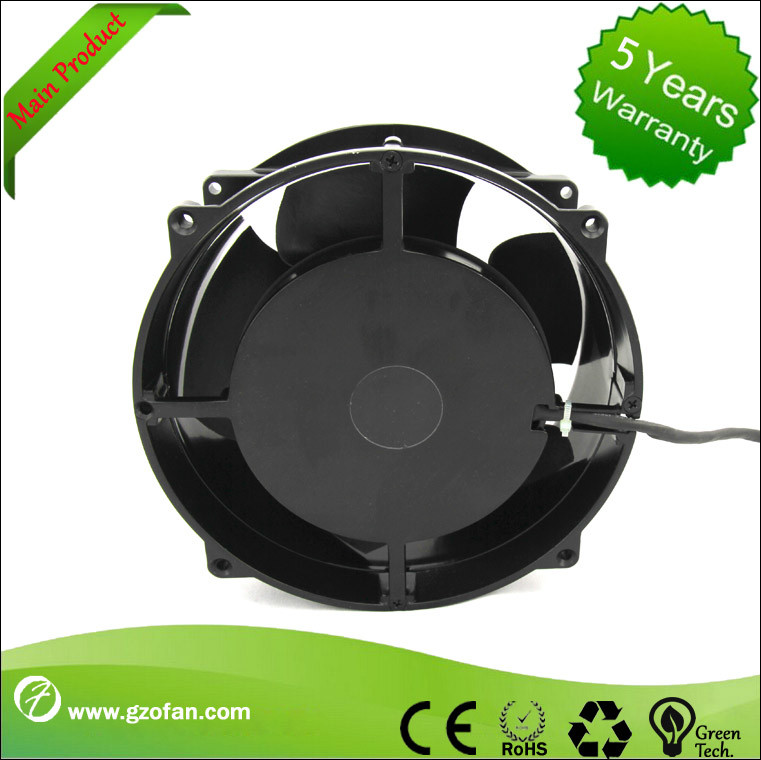

Round ROHS 200*70mm 933m3/H 24v Dc Axial Fan

Place of Origin China
Brand Name OFAN
Certification CE ROHS
Model Number ZX180N-24D3-00
Minimum Order Quantity 1
Price negotiation
Packaging Details 45*45*10
Supply Ability 10000PCS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type ZX180N-24D3-00 Rated Voltage 24VDC
Rated Current 4.5A Power 108W
Rated Speed 4600RPM Air Flow 933m³/h
High Light

933m3/H Dc Axial Fan

,

4600RPM Dc Axial Fan

,

24v Round Exhaust Fan

Leave a Message
Product Description

Replace Ebm-past 200*70mm 24v Dc Axial Fan Large Air Volume Round Exhaust Fan





Type ZX180N-24D3-00
Rated Voltage 24VDC
Rated Current 4.5A
Power 108W
Rated Speed 4600RPM
Air Flow 933m³/h





1. EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and application of the overall power system in customer.



2. Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which enforces the winding current commutation through electronic commutator (position sensing, non-position sensing),achieve the speed control function with PAM or PWM control



3. Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and increase the service life



4. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics



5. Compared with the frequency control of induction motor, brushless dc ,motor is simpler and more controllable, easy to perform contro



6. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and easy to abstract heat., thus ensure to maximum the reliability of fan operation



7.Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the environment, enable the direct, simple communication between the host controller and the system



                                                                                                                                                                                                             FAQ:

1. Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM



2. How do I know which model I should choose

Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
