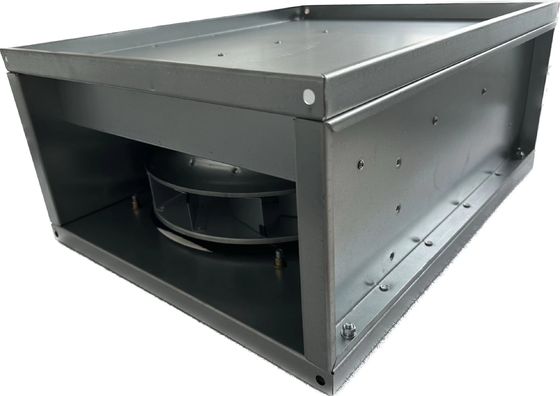

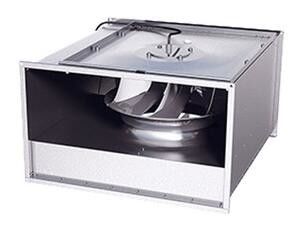

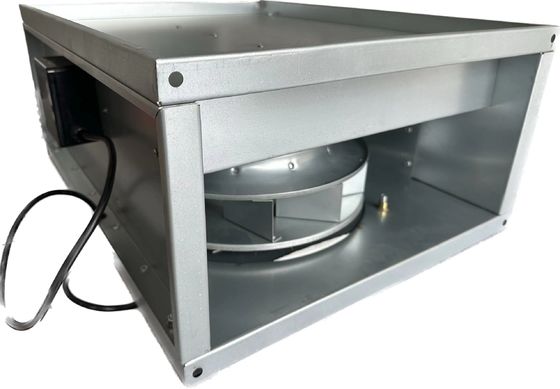

Ventilating Units Rectangular EC Duct Fan Blower With Gakvabused Sheet Steel

Place of Origin China
Brand Name OFAN
Certification CE CCC ROHS
Model Number RDF100-EC
Minimum Order Quantity 1
Price 1-100USD
Packaging Details Conventional packaging
Delivery Time 10 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000per

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Numbe Rectangular Duct Fan Blower Feature Eco Friendly
Power 30W Advantage High Air Pressure
Size 100mm Frequency 50/60hHZ
Current 0.35A Speed 2500RPM
High Light

rectangular inline duct fan


rectangular exhaust fan

Leave a Message
Product Description

Ventilating Units Rectangular EC Duct Fan Blower With Gakvabused Sheet Steel


AC vs. EC
AC motors are designed to operate at a certain point on their performance curve which coincides with their peak efficiency. Either side of this operating point, the efficiency can drop off considerably. EC motors on the other hand have an almost flat efficiency curve which varies relatively little across the speed range, a range which is not limited by synchronous speeds or as susceptible to voltage fluctuations as an AC motor. This makes the EC fan much more flexible in terms of being able to use the same product to match the performance requirements of different applications while still benefitting from increased efficiency.

The available range of AC input EC fans is expanding all of the time. There are axial and centrifugal fans, forward curved and backward curved, single inlet and double inlet, single phase and three phase and they are often directly interchangeable with their AC equivalents. EC offers the OEM more than just energy-efficiency. It is an opportunity to bring new technology and functionality to their products. With ever-increasing demand for energy efficient systems, when it comes to fan based products, there’s no reason for manufacturers not to have any in their portfolio.



Rectangular Duct Fan Parameters


Model Numbe Voltage Power current Air Volume frequency Speed Size Certification


Blade   Material


RDF100-EC 220V 30W 0.35A 350m3/h 50/60HZ 2500RPM 100mm CCC CE






Easy installation via 20mm standard flange

Can be installed in any position

The speed is 0-100% infinitely variable by auto transformers or electronic control

Compact and space saving design

Extremely low starting currents

Motor protection by thermal contacts in motor windings as standard


The translocation type motor and impeller have been used for the product, which is convenient for cleaning and ,maintenance


Forward curved impeller with outer rotor ensures the high-performance of the fan; and the motor bearing in a sealed condition, together with safety, reliability and long service life
