Low Noise 160mm Cleanroom Single Inlet Centrifugal Fans

Place of Origin China
Brand Name OFAN
Certification CE ROHS CCC
Model Number LE160C-230D3-01
Minimum Order Quantity Negotiation
Price negotiation
Packaging Details 32*32*25
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000/pcs

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Single Inlet Centrifugal Fans Type LE160C-230D3-1
Rated Voltage 230V Operation Volrage 176-264V
Application Industrial Cooling Rated Current 1.0A
Power 142W Rated Speed 2100RPM
Air Flow 1 620m³/h Air Flow 2 369CFM
Air Pressure 81.2mmH2O Noise Level 69dba
High Light

Cleanroom Single Inlet Centrifugal Fans


160mm Single Inlet Centrifugal Fans


369 CFM centrifugal air blower

Leave a Message
Product Description

Cleanroom Fans Single Inlet Centrifugal Fans With Low Noise Fan 160mm


Single Inlet Centrifugal Fans Details

  1. Option: Also available with discharge flange
  2. Technical Features: Control input 0-10V/PWM, tach output
  3. Type of protection: IP44
  4. Insulation Class:B
  5. Bearing: Ball bearing
  6. Weight:4.4kg

Single Inlet Centrifugal Fans Parameters


Name: Single Inlet Centrifugal Fans Type: LE160C-230D3-1
Rated Voltage: 230V Operation Volrage: 176-264V
Application: Industrial Cooling Rated Current: 1.0A
Power: 142W Rated Speed: 2100RPM
Air Flow 1: 620m³/h Air Flow 2: 369CFM
Air Pressure: 81.2mmH2O Noise Level: 69dba


Why choose us?


  1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.
  2. We are sole International sales of the factory, we can help to control and protect the market of clients.
  3. We integrates different kinds of products for air management.
  4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
  5. We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.

Our range of small ,midium and large sized centrifugal fans are suitable for many areas . Include but limited to :

  • Electronic cabinet cooling
  • EC fan array
  • Clean room modules
  • Heat exchangers
  • Air filtration
  • Military HVAC
  • Medical appliances
  • Plastic extrusion
  • Fume hoods
  • Pharmaceutical equipment
  • Semiconductor industry



Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM

How do I know which model I should choose

Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.

Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.



EC Fan Introduction

EC(Electronically Commutation) motors, as built-in DC inverter driver three phase AC external rotor permanent magnet synchronous motors, its efficiency and low noise is considered to be ultimate fan energy technologies.


Core Technology Of EC Fan Controller

1. Sensorless vector control software

2. High-performance power electronic circuits

3. Security and reliability design(Standards, Certification)

4. Embedded design

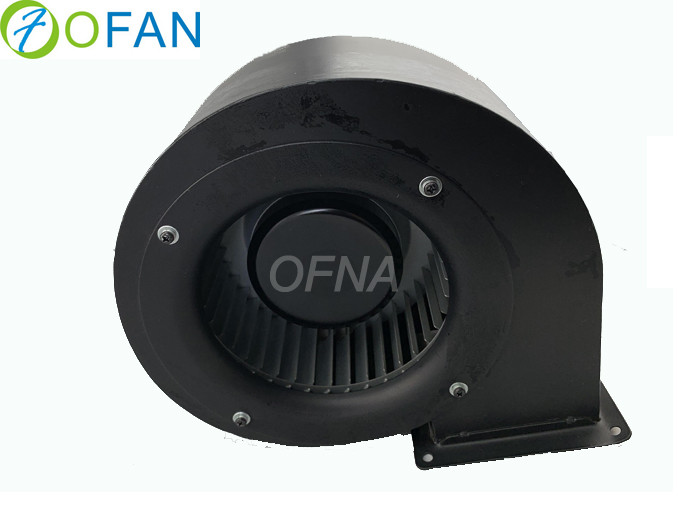

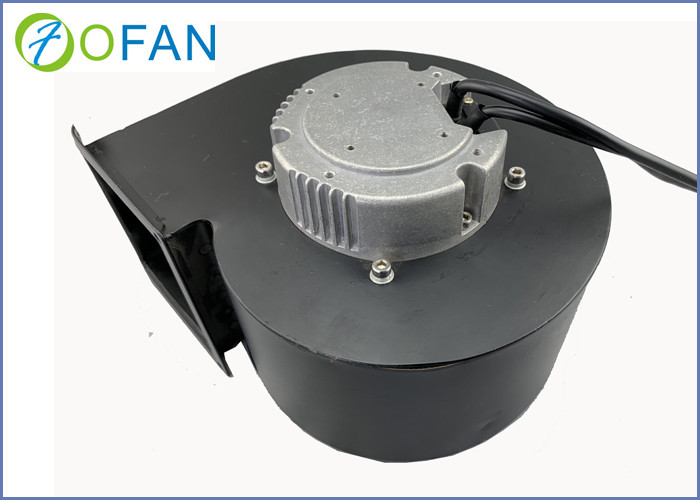

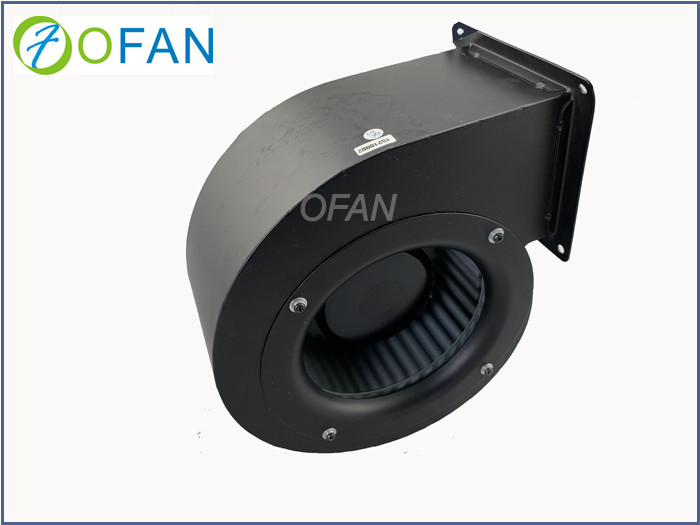

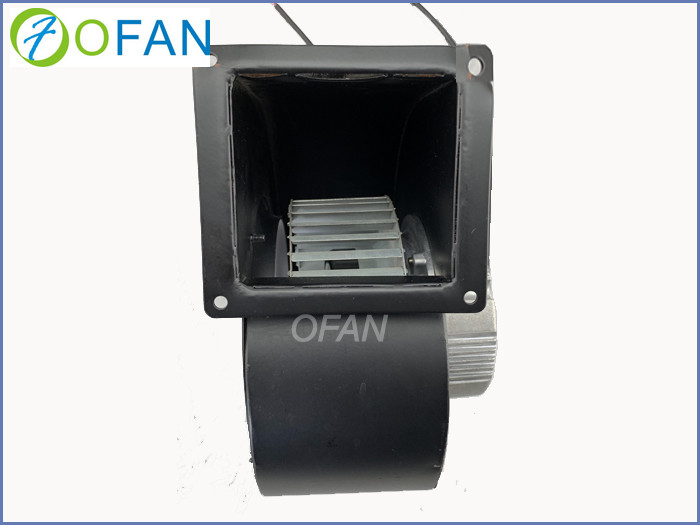

Single Inlet Centrifugal Fans Pictures


Low Noise 160mm Cleanroom Single Inlet Centrifugal Fans 0
