450m3/h Inline Centrifugal Duct Fan With Heat Recovery Unit
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | FR450-15 | Rated Voltage | 220v |
|---|---|---|---|
| Input Power | 148W | Air Flow | 450 M³/h |
| Highlight | Inline Centrifugal Duct Fan,450m3/h Centrifugal Duct Fan,148W Silent Inline Fan |
||
Product Description

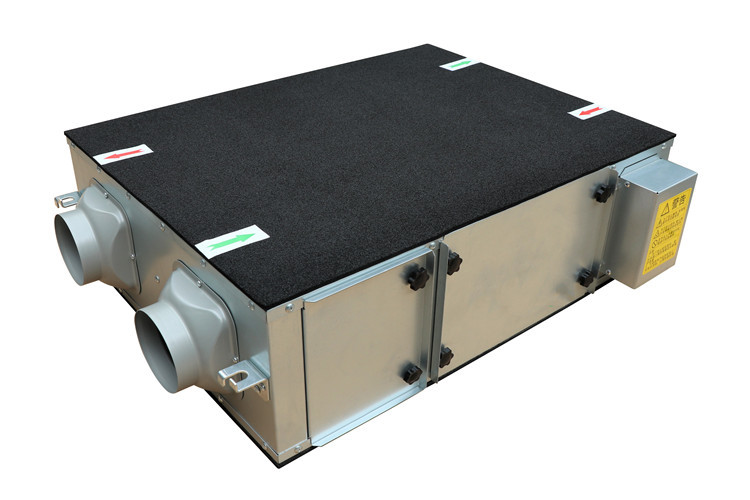

Inline Centrifugal Duct Fan With Heat Recovery Unit Sheet Metal 150mm
The products have been widely used in air supply and air exhaust in the hotels, conference rooms, supermarkets, stations and airports and other public places
RK type direct coupled centrifugal pipeline fan is a new type fan made by the domestic and foreign advanced technical design by our company. In order to be convenient for the air pipe connection, the inlet and outlet of the products have been designed according to the standard, and the two sides can conveniently connect with the air pipe, which is greatly reduce the costs of the pipeline design and production. This series fan has small volume, light weight, small vibration, low noise, long service life, high efficiency, good safety performance, and convenient installation and other characteristics. The products have been widely used in air supply and air exhaust in the hotels, conference rooms, supermarkets, stations and airports and other pubic places
| TYPE |
Rated Voltage |
Input Power High(W) |
Input Power low(W) |
Air Flow High(m³/h) | Air Flow low(m³/h) |
Noise Level High(dB)A |
Noise Level low(dB)A |
Tuyere diameter |
Net Weight(kg) |
| FR150-10 | 220V/50HZ | 58 |
49 |
150
|
100
|
28 | 27 | 100 | 25 |
| FR250-10 | 220V/50HZ | 72 | 62 | 250 | 200 | 30 | 29 | 100 | 26 |
| FR350-15 | 220V/50HZ | 98 | 83 | 350 | 300 | 34 | 32 | 150 | 32 |
| FR450-15 | 220V/50HZ | 148 | 118 | 450 | 400 | 36 | 34 | 150 | 33 |
| FR550-20 | 220V/50HZ | 186 | 149 | 550 | 500 | 38 | 36 | 200 | 38 |
| FR650-20 | 220V/50HZ | 225 | 180 | 650 | 600 | 40 | 38 | 200 | 39 |
| FR800-20 | 220V/50HZ | 390 | 310 | 800 | 700 | 41 | 39 | 200 | 46 |
| FR1000-20 | 220V/50HZ | 420 | 395 | 1000 | 900 | 43 | 41 | 200 | 47 |
| FR1200-20 | 220V/50HZ | 550 | 440 | 1200 | 1100 | 45 | 43 | 200 | 49 |
| FR1500-25 | 220V/50HZ | 780 | 585 | 1500 | 1300 | 46 | 43 | 250 | 86 |
| FR2000-25 | 220V/50HZ | 930 | 698 | 2000 | 1700 | 48 | 45 | 250 | 87 |
| FR2500-25*35 | 220V/50HZ | 1420 | 1065 | 2500 | 2200 | 49 | 46 | 250*350 | 108 |
| FR3200-25*35 | 220V/50HZ | 1680 | 1176 | 3200 | 2800 | 52 | 49 | 250*350 | 110 |
| FR4000-30*36 | 220V/50HZ | 2120 | 1485 | 4000 | 3500 | 54 | 50 | 300*360 | 175 |
| FR5000-300*360 | 220V/50HZ | 2460 | 1815 | 5000 | 4500 | 58 | 55 | 300*360 | 180 |
Our Service
Safe-common necessity of company and customers
Excellent –worker and product
Efficiency-worker and product
Environment-enterprise and society
OFAN provides the most comprehensive services, includes: product diversification, against the clock delivery, documents support, and technical consulting service. “Customer is partner” is key to our success; ”Win the contract for customer” is our ultimate goal.
FAQ
1. Are you a factory or trading company?
We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM
2. How do I know which model I should choose
Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
