Ec Centrifugal Fans Sheet Aluminium With Fresh Air System 310mm

Place of Origin China
Brand Name OFAN
Certification CE ROHS
Model Number LD310C-230D3-01
Minimum Order Quantity 1
Price negotiation
Packaging Details Simple packing
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10000PCS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Poewr Input 176W Rated Speed 1780RPM
Air Flow 2100m³/h Nominal Voltage 220V
Current Draw 1.3A Frequency 50/60HZ
High Light

industrial centrifugal blower

,

centrifugal fans and blowers

Leave a Message
Product Description

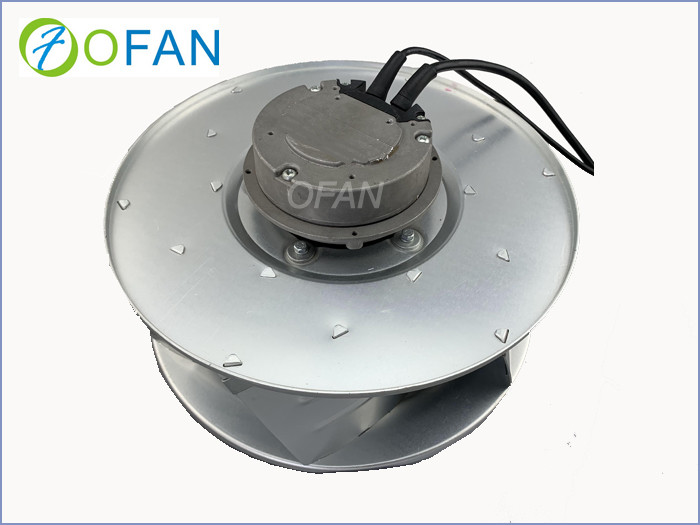

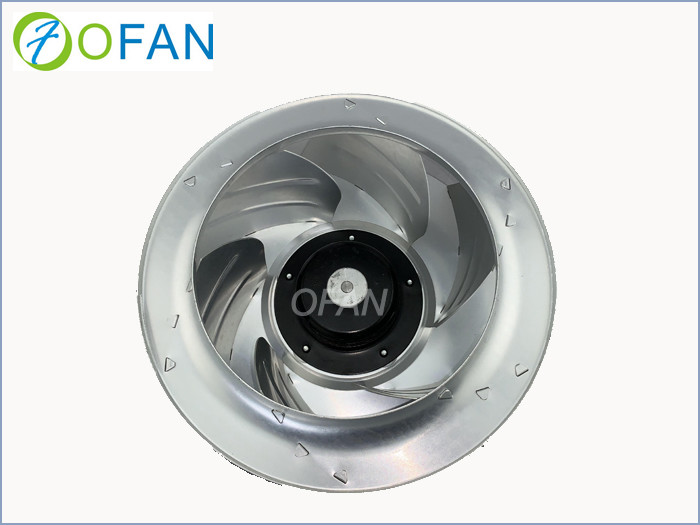

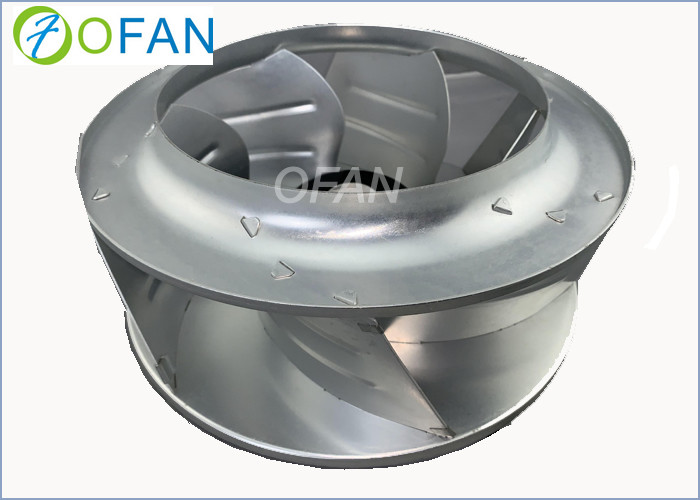

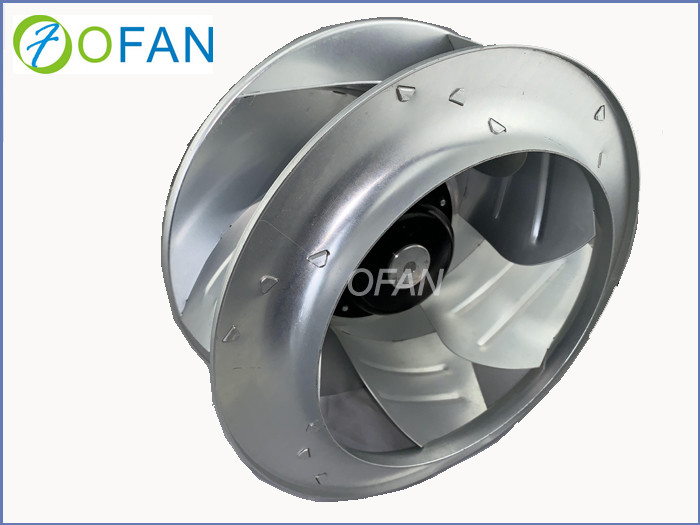

Ec Centrifugal Fans Sheet Aluminium With Fresh Air System 310mm



Control options
To control the motor accurately and efficiently the integrated electronics have to continuously monitor the motor speed and adjust the control input. By making this circuitry available to external sources it’s possible to provide simple speed control options. Dependent on the motor type, any sensor which can provide a 0-10V/PWM or 4-20mA input can be directly connected to provide closed loop control for temperature, pressure or whatever parameter you choose to measure. No need to worry about DC supplies for the sensors either, this is provided by another connection on the motor. In fact, simply connect a potentiometer and you have infinitely variable speed control. No triacs, no frequency inverters and no whining noises! An EC motor under speed control is virtually silent.



Type

Frequency

(HZ)

Air Flow

(m³/h)

Rated Speed

(RPM)

Current draw

(A)

Poewr input

(W)

LD310C-230D3-01 50/60 2100 1780 1.3 176





The GL Gamma EC Series of centrifugal roof mounted exhaust fans incorporate the latest state of the art, energy saving EC motor technology.
They feature integrated infinitely variable speed control and eliminate the need for external VSDs, current overloads and motor phase protection.
The compact and low profile GL Gamma EC Series is a simple "plug and play" system which means installers do not need to have specialised control programing knowledge.
Matching sensors can easily be connected to monitor the ambient conditions in a space and provide real time feedback to the fan. The fan's on-board microprocessor can adjust the speed and therefore modulate the ventilation rate to match the specific requirements of the area.
They are suited to ducted vertical exhaust applications, include a removable windband that provides easy access for cleaning and maintenance, and are available in 315, 355, 450, 560 and 630mm fan sizes.



Currently, both at home and abroad, the EC axial fan has been widely used in various fields, especially ventilation, large air conditioning and refrigeration. The compact structure and continuous controllability of EC centrifugal fan has been into full play to air handing units, computer modules, communication systems ,clean room systems, roof fans, home machine automotive and rail technology



Additional Functions
Constant pressure : Used in conjunction with a pressure sensor, the fan maintains the same pressure at varying airflow (ideal for ducted applications). Operates with forward curved centrifugal fans without pressure sensor and with backward curved motorised impellers with pressure sensor (Available on Ecofit fans).



1. Are you a factory or trading company?

We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM



2. Can we buy a sample for testing?

Sure, you are welcomed to buy a sample before mass order.
