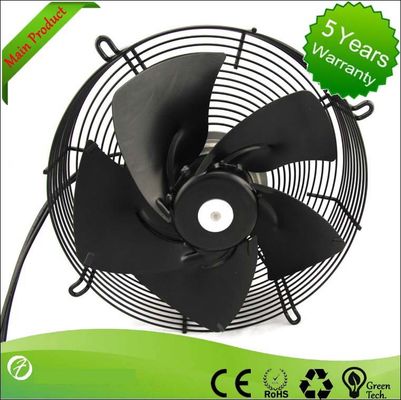

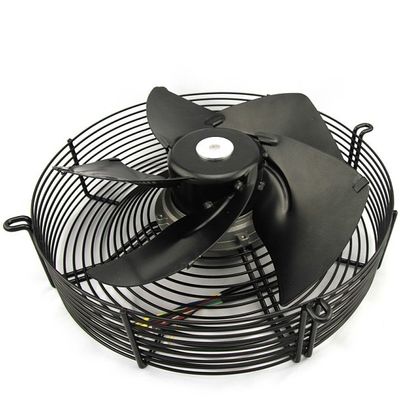

EC Motor Axial Ventilation Fan , Industrial Ac Axial Fan 230VAC

Place of Origin China
Brand Name OFAN
Certification CE ROHS
Model Number ZW315C-230D3-00
Minimum Order Quantity 1
Price negotiation
Supply Ability 10000PCS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Power 102W Rated Speed 1800RPM
Air Flow 2150m³/h Rated Current 0.75A
Rated Voltage 230VAC Operation Voltage 176-264VAC
High Light

axial ventilation fan


axial cooling fan

Leave a Message
Product Description

Condensers,Evaporators Ec Cooling Fan With Sheet Steel For Zw250c-230d3-00



1. As the rotor is mounted to interior, the external rotor fan is more compact constructed, smaller and             easy to abstract heat., thus ensure to maximum the reliability of fan operation,

2. Sustainable speed control benefits to achieve low operating costs, reduce CO2 emissions protect the        environment, enable the direct, simple communication between the host controller and the system,

3. Variable speed control of EC fan can be realized / achievedvia 0-10V speed adjustment and/or                 external circuit impulse modulation

4. Constant torque ,constant speed and constant airflow of EC fan can be fulfilled via 180,sine                       SVPWM(Space Vector PWM)to meet customer needs

5. Intelligent EC fan can support users to realize centralized operation control by 485 bus and monitor as       many as 255 fans

6. EC fan has comprehensive protection function, such as phase failure, overvoltage, undervoltage,             locked-rotor, over current and temperature protection



EC Motor Axial Ventilation Fan , Industrial Ac Axial Fan 230VAC 0
